MPC-52C0000M0B
SKU 243655
Specifications
| Manufacturer order number | 243655 |
|---|---|
| Series | eneo KX-Serie,eneo COAXIZE |
| Alarm inputs | 0 |
|---|---|
| Audio support | No |
| Backlight compensation | No |
| Brand | eneo |
| Camera shape | Box |
| Chip size | 1/2,8" |
| Control Interfaces | Coaxitron (HD Protocol) |
| Day/night mode | Automatic,Day,Night,extern (Sensor) |
| Day/night switching | Switchable IR Filter (ICR) |
| Digital Noise Reduction (DNR) | Yes |

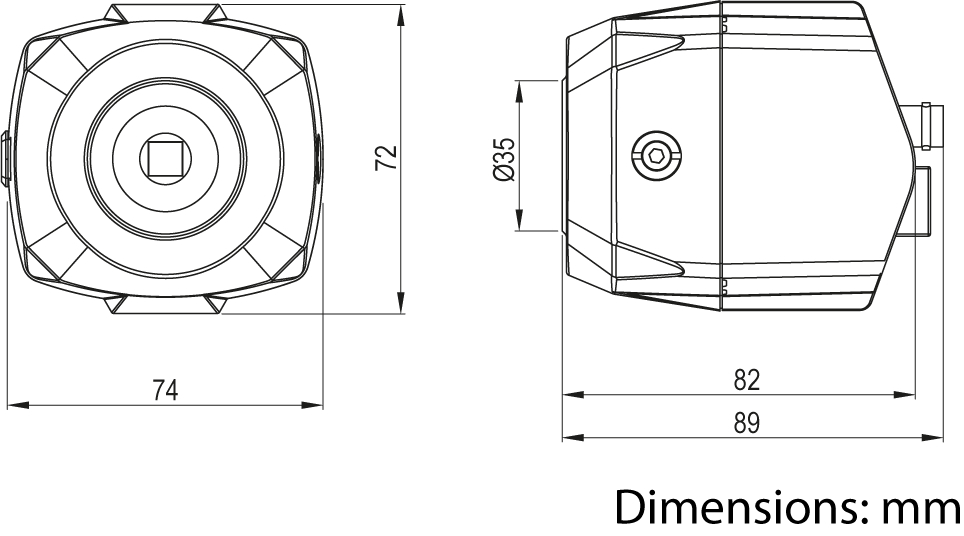

| Dimensions (WxHxD) (extended) | 72x74x89mm |
| External connections | voltage input,1x SDI Signal (BNC),1x HD/SD Analog Signal (BNC) |
| Fan | No |
| Flickerless function | Yes |
| Heating | Yes |
| Housing material | Aluminium |
| Housing type | Inside |
| Integrated wall mount | No |
| Interface Protocols | UTC (HD Signal Format), UTC (HD Signal Format) |
| Low Speed Shutter | No |
| Menu languages | Chinese, English, French, German, Japanese, Korean |
| Motion detector | No |
| Multicast | No |
| Number of alarm outputs | 0 |
| Photosensitivity | 0.005Lux @F1,6 (Day mode),0.0005Lux(Night mode) |
| Power supply | 12VDC |
| Recording sensor | CMOS |
| Remark | NDAA compliance under Section 889 |
| Scope of delivery | manual,C/CS adapter |
| Signal Format | AHD @ 2MP, AHD @ 2MP, Composite (FBAS), EX-SDI @ 2MP, HD-SDI @ 2MP, HD-TVI @ 2MP, HD-TVI @ 2MP, HD-TVI @ 2MP, HD-TVI @ 2MP |
| Signal-to-noise ratio | 50 dB |
| Sunshade canopy | No |
| System | True Day&Night |
| Temperature Range (Operating) | -10°C ~ +50°C,@ Luftfeuchtigkeit 20%-80% (nicht kondensierend) |
| Text overlay | available |
| Vandalism-resistant | No |
| White balance | Automatic,Preset,Manual,AUTOext |
| Wide Dynamic Range (WDR) | D-WDR, D-WDR, D-WDR, D-WDR, D-WDR, D-WDR, D-WDR |
Additional Productinformation
Sony STARVIS 2
Improved low-light performance (especially with HDR)
STARVIS 2 offers significantly improved performance in low light, especially with high dynamic range (HDR). It has been specially optimised for backlit situations and night scenes with high contrast.
Higher dynamic range (High Dynamic Range)
STARVIS 2 achieves up to 88 dB real dynamic range (Single Exposure) according to Sony - that&039;s more than the original STARVIS. This helps to better display details in dark AND bright areas at the same time - without ‘burning out’ or ‘drowning out’ the image areas.
Uniform brightness across the image field
STARVIS 2 reduces the so-called vignetting effect (edge darkening) that can occur with BSI sensors. This means a more even image brightness, even in poorly lit conditions.
Better colour reproduction in low light
STARVIS 2 offers a more natural colour reproduction at night - colours appear less washed out or monochromatic. Particularly relevant for forensic applications (e.g. clothing, vehicles, skin tones).
Main Features
- 1/2.8" 2 Megapixel SONY STARVIS 2 CMOS sensor
- Super low light performance by Sony STARVIS 2 technology
- Resolution max. 1920x1080 pixels (Full HD)
- Separate outputs for digital and multi-signal
- Multisignal: HD-TVI, AHD, CVI and Composite selectable
- Digital signal: EX-SDI, HD-SDI selectable
- Removable infrared cut filter
- ROI (Region of Interest) WDR mode
- Integrated motion detector, defog, privacy zones
- C/CS mount, LSC (Lens shading compensation)
