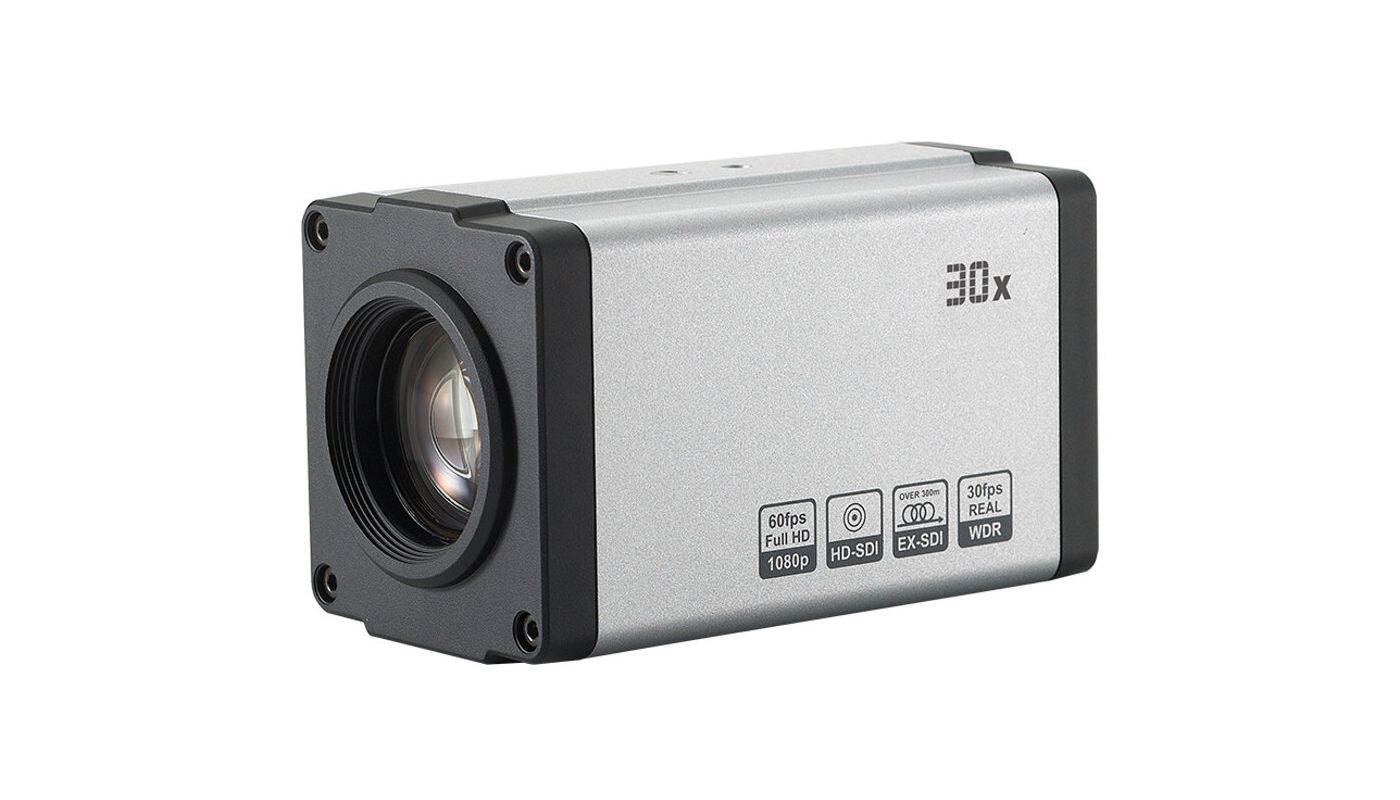

MPC-52A0030M0A

SKU 240897
1/2.8" HD Camera, 1920x1080, 30x AF Zoom 4,6-136mm, T-WDR, HD-SDI, EX-SDI, TVI, Composite
Data sheet

Specifications

Manufacturer order number
240897
Brand
eneo

Camera

Camera shape
Zoom cameras
Chip size
1/2,8"
Recording sensor
CMOS
Photosensitivity
0,5 Lux bei F1,6,50 IRE
System
True Day&Night
Flickerless function
Yes
Day/night switching
Switchable IR Filter (ICR)
Day/night mode
Automatic,Day,Night,extern (Sensor)
White balance
AUTO,One push,Manual,Indoor,Outdoor
Signal-to-noise ratio
50 dB

Video

Signal Format
Composite (FBAS), EX-SDI @ 2MP, HD-SDI @ 2MP, HD-TVI @ 2MP
Horizontal resolution
700 TVL

Lens

Lens Type
Auto Focus Zoom
Focal length
4,6 - 136 mm
Zoom Factor (Digital)
0
Aperture Range (F)
F1.63-F4.85
Horizontal angle of view
65,4 - 2,2°

DORI

Perceiving (25px/m)
70.3 m
Watch (62px/m)
27.8 m
Identify (250px/m)
5.6 m

Functions

Menu languages
Chinese, English, Japanese
Digital Noise Reduction (DNR)
Yes

Interfaces / Inputs/ Outputs

External connections
1x SDI Signal (BNC),1x HD/SD Analog Signal (BNC),12VDC power input,RS-485,external day&night switching,Alarm output
Number of alarm outputs
1
Control Interfaces
Coaxitron (HD Protocol), RS-485
Interface Protocols
Pelco D, Pelco P, UTC (HD Signal Format)

General

Wide Dynamic Range (WDR)
WDR 120dB
Lighting
no
Zoomfactor (optical)
30

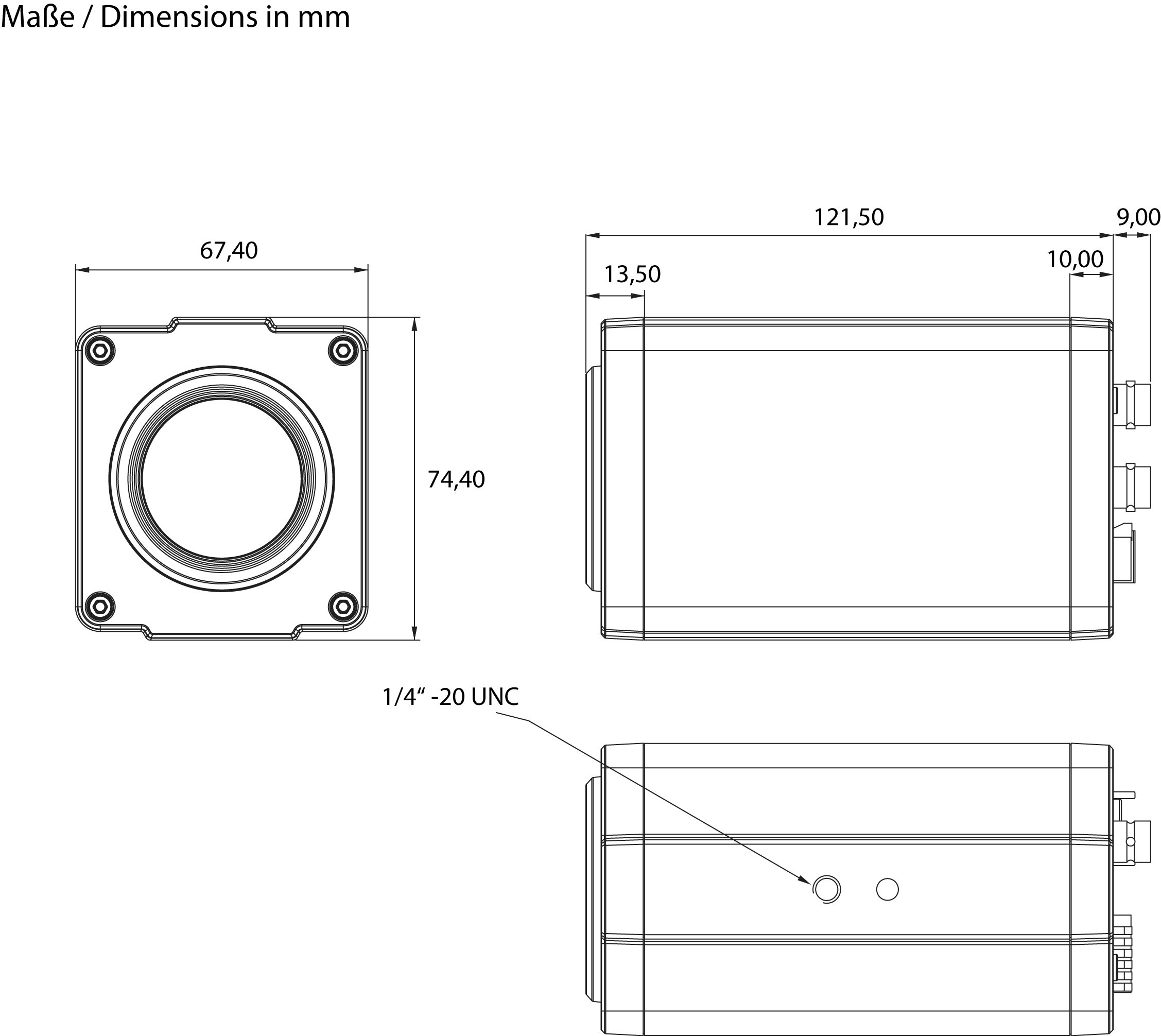

Dimensions (WxHxD) (extended)
74,4x67,4x130,1mm
Housing type
Inside
Housing material
Aluminium
Power supply
12VDC
Temperature Range (Operating)
-10°C ~ +50°C
Text overlay
available

Parts supplied

Scope of delivery
manual

Additional Productinformation

The camera offers a wide range of applications that are particularly suitable for areas where high image quality, flexibility in video outputs and special image enhancement functions are required. Here are some possible application scenarios:

1.Monitoring large areas

30x optical zoom: The zoom enables monitoring of large areas, such as parking lots, stadiums or port areas. Objects can be detected from a great distance with great detail. An additional housing is required for outdoor use. Full HD resolution (1920x1080): The high resolution at 60/50fps ensures that movements are displayed smoothly and with many details.

2. Traffic monitoring

Motion detector and image stabilization: These functions are ideal for use at traffic monitoring points. The motion detector can automatically react to vehicle movements, while the image stabilization compensates for vibrations, e.g. when mounted on masts. Slow Speed Shutter: This feature could be useful for capturing more details in low light conditions.

3. Industrial Security and Monitoring

WDR (Wide Dynamic Range): In highly lit or high contrast environments, such as factory floors or facilities with high light/shadow changes, WDR helps to clearly display details in both bright and dark areas of the image. Defog: This feature improves image quality in fog or dust, which is particularly beneficial for industrial applications in harsh environments. Multi-signal outputs: The versatility of the video outputs (HD-SDI, EX-SDI, TVI, Composite) makes the camera compatible with a wide range of transmission systems, which is important in complex industrial infrastructures.

4. Urban Surveillance (Smart City)

Privacy Masking: This feature allows you to hide certain areas in the image to maintain data protection guidelines in urban environments, e.g. when monitoring public places where private zones such as windows of residential buildings must be excluded.

5. Surveillance in transport

Compact design: The small size of the camera is ideal for use in confined spaces, such as public transport, trains or buses. HD-SDI and EX-SDI interfaces: These enable lossless transmission of high-resolution video over long distances, which is particularly useful in the area of trains or buses.

6. Banks and casinos

High image quality and 30x zoom: In sensitive areas such as banks or casinos where detailed observation is necessary, the zoom allows even small details to be recognized, e.g. money transactions or the behaviour of guests. Digital noise reduction (2D&43;3D): This technology improves image quality in poorly lit areas, making surveillance easier in dim lighting.

The camera is particularly versatile due to its high resolution, advanced image processing techniques and various video output options. It is suitable for demanding surveillance tasks in areas with different lighting conditions, long distances or special requirements for image quality.

Main Features

  • 1/2.8” 2.0 megapixel Sony CMOS sensor
  • Resolution max. 1920x1080, 1080p@60/50fps
  • Optical 30x auto focus zoom, 4.6~136mm
  • Multisignal outputs HD-SDI, EX-SDI, TVI, Composite
  • WDR 120dB, DNR, motion detector
  • Digital noise reduction (2D+3D)
  • Image stabilization, privacy masking, defog
  • Slow speed shutter
  • Compact design
  • 12VDC power supply
