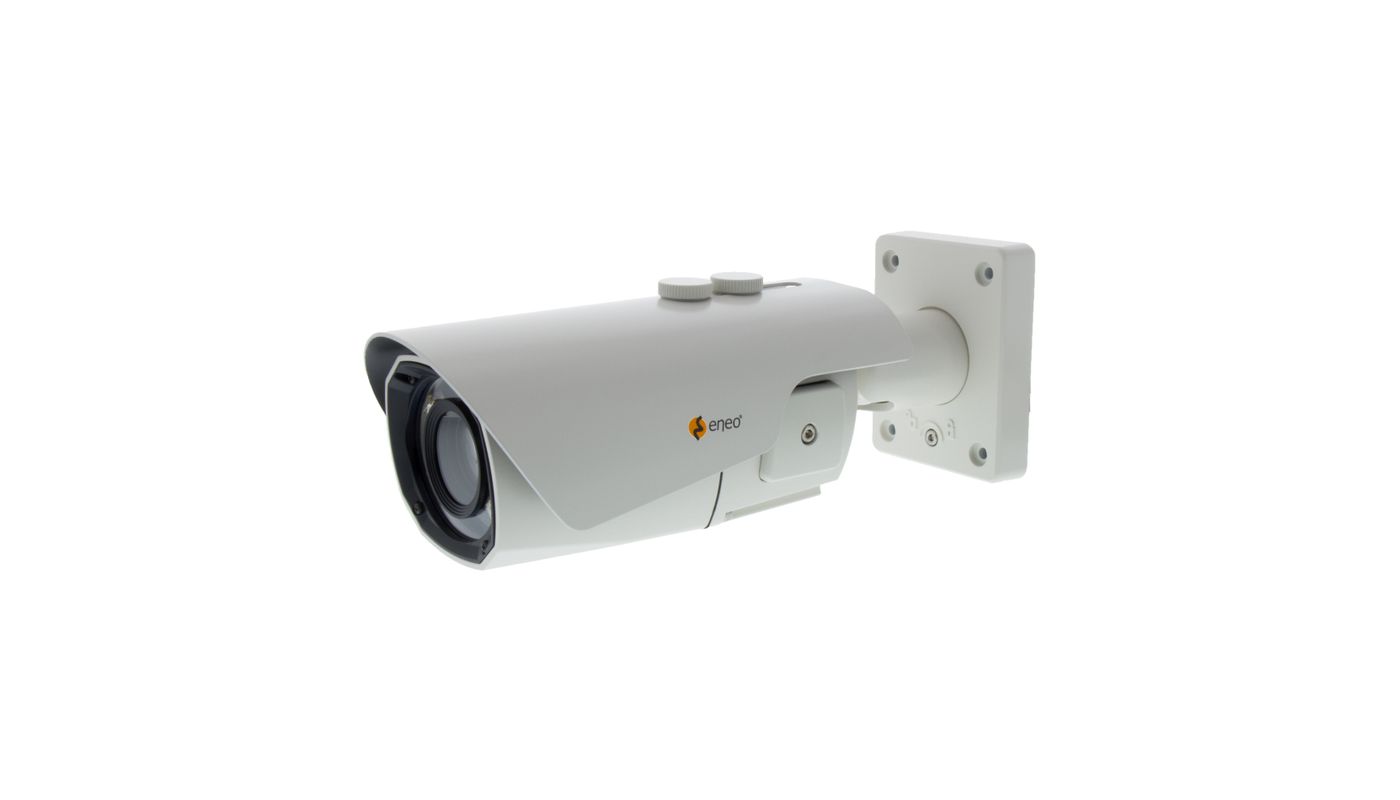

eneo MPB-72M2713M0B

SKU 243648
HD Analogue Camera Bullet, Day&Night, 1920x1080, Infrared, WDR, 2.7-13.5mm, 12/24V, IP67
Data sheet

Specifications

Brand
eneo
EAN/GTIN
4260229841402
Manufacturer order number
243648
Series
eneo COAXIZE

Camera

Backlight compensation
Yes
Camera shape
Bullet
Chip size
1/2,8"
Day/night mode
Automatic,Day,Night,extern (Sensor)
Day/night switching
Switchable IR Filter (ICR)
Flickerless function
Yes
Low Speed Shutter
Yes
Photosensitivity
0.005Lux(Day mode),0.0005Lux(Night mode)
Recording sensor
CMOS
Signal-to-noise ratio
50 dB
System
True Day&Night
White balance
Automatic,Preset,Manual,AUTOext

DORI

Detect (125px/m)
8 - 25 m
Identify (250px/m)
4 - 12 m
Perceiving (25px/m)
47 - 128 m
Watch (62px/m)
18 - 52 m

Lens

Aperture Range (F)
F1.6
Focal length
2,7 - 13,5 mm
Horizontal angle of view
101 - 32°
Lens Type
Varifocal (motorized)
Vertical angle of view
54 - 18°
Zoomfactor (optical)
4

Video

Resolution (extended)
1920x1080,1280x720,720x576,720x480
Signal Format
AHD @ 2MP, Composite (FBAS), EX-SDI @ 2MP, HD-SDI @ 2MP, HD-TVI @ 2MP

Display

Image resolution max.
1920x1080

Functions

Digital Noise Reduction (DNR)
Yes
Menu languages
Chinese, English, French, German, Japanese, Korean
Motion detector
Yes

Interfaces / Inputs/ Outputs

Control Interfaces
Coaxitron (HD Protocol)
External connections
voltage input,1x SDI Signal (BNC),1x HD/SD Analog Signal (BNC),connection cable approx.100cm
Interface Protocols
UTC (HD Signal Format)
Video Outputs
Composite (FBAS)

General

Color (Housing)
Pantone Cool Gray 1C

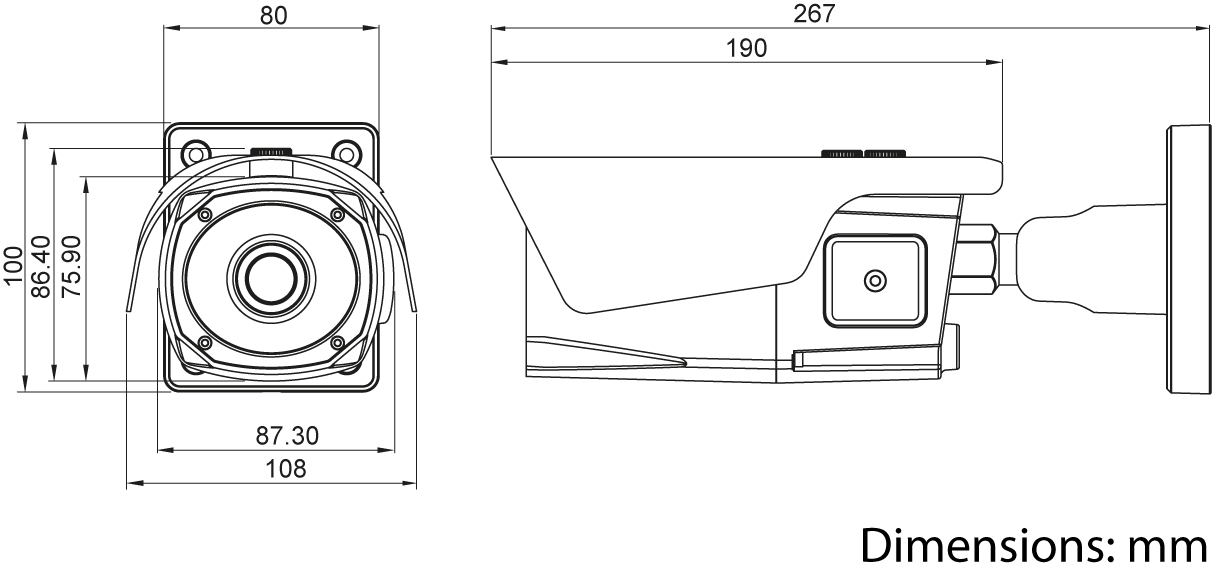

Dimensions (WxHxD) (extended)
100x108x267mm
Heating
No
Housing material
Aluminium
Housing type
Outside
Illumination range
ca. 60m
Integrated wall mount
Yes
Lighting
Infrared
Mounting type
Ceiling, Wall
Power consumption
8.5 W
Power supply
12VDC
Protection
IP67
Sunshade canopy
Yes
Temperature Range (Operating)
-30°C ~ +50°C,@ Luftfeuchtigkeit 20%-80% (nicht kondensierend)
Text overlay
available
Weight
1.35 kg
Wide Dynamic Range (WDR)
D-WDR

Parts supplied

Scope of delivery
Quick installation guide,drilling template,Easy Bracket,4x wall plugs with screws,video sub-output cable,4x M4x15mm screws,1x Allen wrench

Notes

Remark
NDAA compliance under Section 889

Additional Productinformation

Sony STARVIS 2

Improved low-light performance (especially with HDR)

STARVIS 2 offers significantly improved performance in low light, especially with high dynamic range (HDR). It has been specially optimised for backlit situations and night scenes with high contrast.



Higher dynamic range (High Dynamic Range)

STARVIS 2 achieves up to 88 dB real dynamic range (Single Exposure) according to Sony - that&039;s more than the original STARVIS. This helps to better display details in dark AND bright areas at the same time - without ‘burning out’ or ‘drowning out’ the image areas.



Uniform brightness across the image field

STARVIS 2 reduces the so-called vignetting effect (edge darkening) that can occur with BSI sensors. This means a more even image brightness, even in poorly lit conditions.



Better colour reproduction in low light

STARVIS 2 offers a more natural colour reproduction at night - colours appear less washed out or monochromatic. Particularly relevant for forensic applications (e.g. clothing, vehicles, skin tones).

Main Features

  • 1/2.8" 2 Megapixel SONY STARVIS 2 CMOS sensor
  • Resolution max. 1920x1080 pixels (Full HD)
  • Super low light performance by Sony STARVIS 2 technology
  • Multisignal: HD-TVI, AHD, CVI and Composite selectable
  • Digital signal: EX-SDI, HD-SDI selectable
  • Motorized lens 2.7 ~ 13.5mm
  • Removable infrared cut filter
  • ROI (Region of Interest) WDR mode
  • Integrated motion detector, defog, privacy zones
  • IP67
  • Easy installation, central locking screw
  • IR illumination switchable via OSD menu
