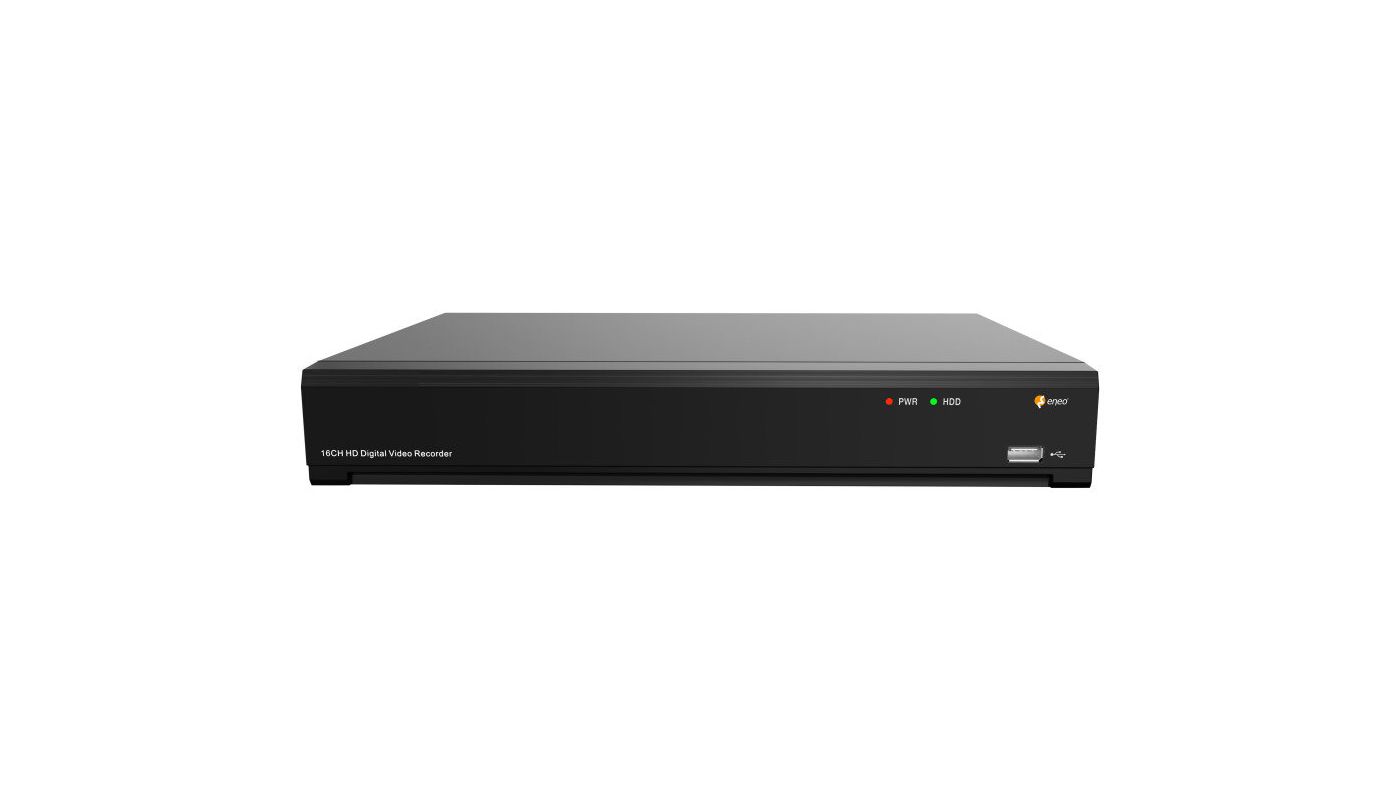

MNR-18N16000A
Hybrid HD Video Recorder 16-channel analogue, 8-ch. IP HDMI, 2xSATA, w/o HDD
SKU
234748
Main Features
- 16-channel pentaplex multisignal recorder
- Supports IP, HD-TVI, AHD, CVBS signals
- Max. 24 channels (16x analog + 8x IP)
- Recording speed 160fps@8MP,240fps@5MP,480fps@2MP
- Monitor outputs HDMI (4K), VGA and spot monitor CVBS
- Maximum 2 internal HDDs possible
- PTZ control via coaxial (UTC)
- Audio/Alarm inputs and outputs
- USB 2.0, eSATA and RS-485 interface
- Compression methods: H.264, H.265
- Remote access via app, browser and CMS
- USB mouse included
For Prices and Availability please login.
| Brand | eneo |
|---|---|
| Signal format | AHD @ 8MP, Composite (FBAS), HD-TVI @ 8MP, IP @ 8MP |
| Compression | H.264, H.265 |
| Playback | 16 channel split, 4 channel split, 8 channel split, full screen |
| Max. recording resolution | 3840x2160 |
| Recording rate max. | @1920x1080 |
| Recording rate max. | @1920x1080 |
| Alarm inputs | 16 |
| Analysis functions | Additional functions depending on connected IP camera, Audio detection, Face recognition, Intrusion, Line detection, Object classification (person / vehicle), Obstruction detection, The recorder hardware (on board) provides the following analysis functions for analog cameras |
| HDD hotswap | no |
| Remote access | Microsoft Internet Explorer, remote software |
| Operation mode | Pentaplex |
| Network | 100/1000 Base-T, RJ45 |
| Data tranfer rate max. | 256 Mbps |
| Data transfer rate incoming | 64 Mbps |
| Data transfer rate outgoing | 192 Mbps |
| IP channels | 8 (24 IP only) |
| Channels total | 24 |
| Video inputs (amount) | 16 |
| Main video outputs | HDMI (4K), VGA |
| Spot monitor | composite (CVBS) |
| Interfaces external storage | 1x eSATA, USB |
| Alarm inputs | 16 |
| Alarm outputs | 1 |
| Audio inputs | 16 |
| Audio output | RCA |
| Serial interfaces | Coaxitron (HD Protocol), RS-485 |
| Serial interfaces protocols | Pelco D|coax2|Pelco P|coax1 |
| Operating system | Linux |
| Series | eneo IN-Series |
| Dimensions (HxWxD) | 380x340x50mm |
| Weight | 2.3kg |
| 19" rack mount | no |
| HDD slots | 2x SATA |
| Color | black |
| Internal HDD capacity | 0 TB |
| Max. internal HDD capacity | 20 TB |
| Housing | Metal/Plastic |
| Integrated writer | no |
| Power consumption | 20W, without HDD |
| Blower | no |
| ONVIF | ONVIF Profile S, yes |
| RAID | n/a |
| Supply voltage | 12VDC |
| Operating temperature | 0°C ~ +40°C |
| EAN/GTIN | 4260229840269 |
| Manufacturer order number | 234748 |
