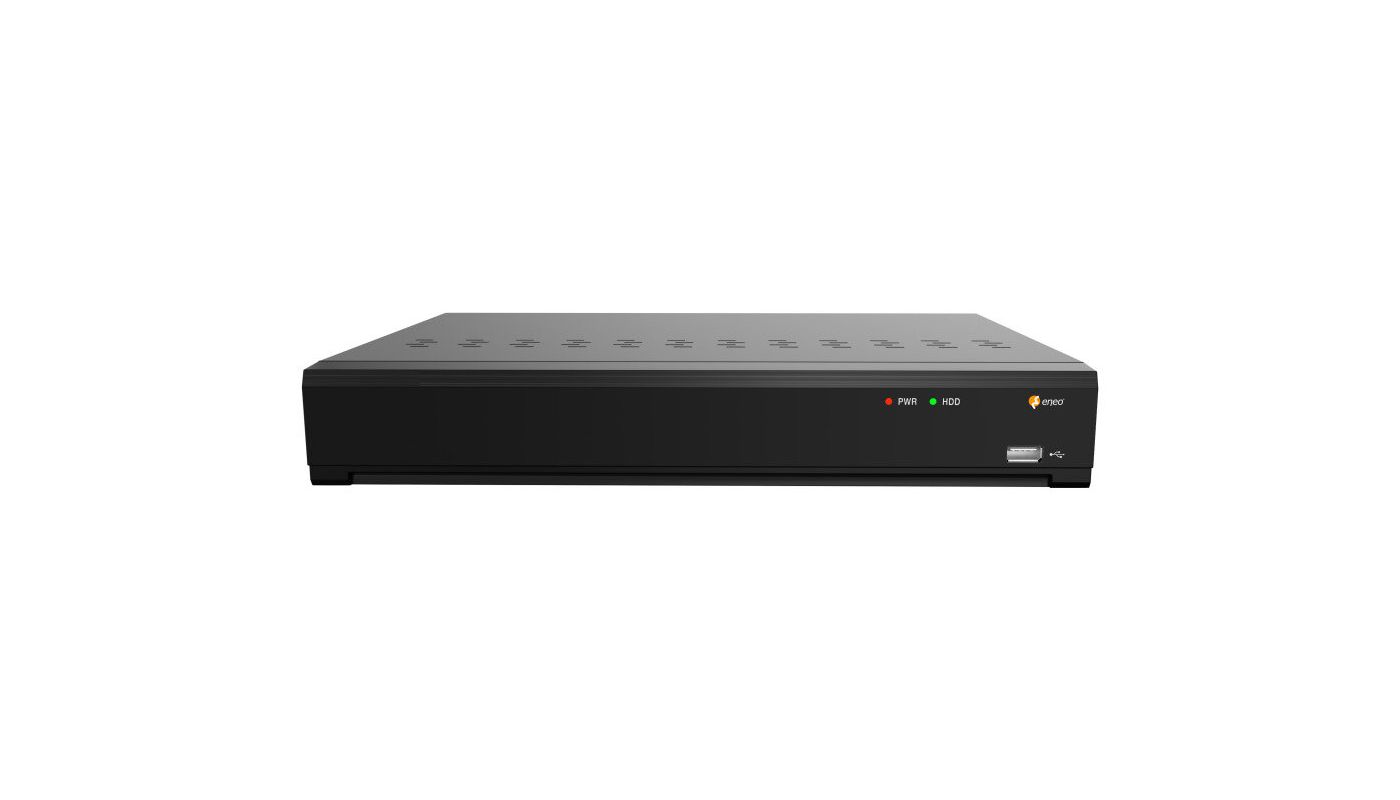

Hybrid HD Video Recorder 4-channel analogue, 2-ch. IP, HDMI, 1xSATA, w/o HDD
SKU
233903
Main Features
- 4-channel pentaplex multisignal recorder
- Supports IP, HD-TVI, AHD, CVBS signals
- Max. 6 channels (4x analog + 2x IP)
- Recording speed 28fps@8MP,48fps@5MP,120fps@2MP
- Monitor outputs HDMI (4K),VGA and spot monitor CVBS
- Maximum 1 internal hard disk possible
- PTZ control via coaxial (UTC)
- Audio/alarm inputs and outputs
- USB 2.0 and RS-485 interface
- Compression methods: H.264, H.265
- Remote access via app, browser and CMS
- USB mouse included
For Prices and Availability please login.
Brand | eneo |
---|---|
Signal format | AHD @ 8MP, Composite (FBAS), HD-TVI @ 8MP, IP @ 8MP |
Compression | H.264, H.265 |
Playback | 4 channel split, full screen |
Max. recording resolution | 3840x2160 |
Recording rate max. | @1920x1080 |
Recording rate max. | @1920x1080 |
Alarm inputs | 4 |
Analysis functions | Intrusion, Line detection, Object classification (person / vehicle), Obstruction detection, The recorder hardware (on board) provides the following analysis functions for analog cameras |
HDD hotswap | no |
Remote access | Microsoft Internet Explorer, remote software |
Operation mode | Pentaplex |
Network | 10/100 Base-Tx, RJ45 |
Data tranfer rate max. | 48 Mbps |
Data transfer rate incoming | 12 Mbps |
Data transfer rate outgoing | 36 Mbps |
IP channels | 2 (6 IP only) |
Channels total | 6 |
Video inputs (amount) | 4 |
Main video outputs | HDMI (4K), VGA |
Spot monitor | composite (CVBS) |
Interfaces external storage | USB |
Alarm inputs | 4 |
Alarm outputs | 1 |
Audio inputs | 4 |
Audio output | RCA |
Serial interfaces | Coaxitron (HD Protocol), RS-485 |
Serial interfaces protocols | Pelco D|Pelco P|coax1|coax2 |
Operating system | Linux |
Series | eneo IN-Series |
Dimensions (HxWxD) | 300X227X53mm |
Weight | 1,03kg |
19" rack mount | no |
HDD slots | 1x SATA |
Color | black |
Internal HDD capacity | 0 TB |
Max. internal HDD capacity | 10 TB |
Housing | Metal/Plastic |
Integrated writer | no |
Power consumption | 4.7W, without HDD |
Blower | no |
ONVIF | ONVIF Profile S, yes |
RAID | n/a |
Supply voltage | 12VDC |
Operating temperature | 0°C ~ +40°C |
EAN/GTIN | 4260229840252 |
Manufacturer order number | 233903 |
