MEB-62V2713P0A
SKU 233016
1/2.8" HD Bullet, Day&Night, 1920x1080, Lens 2,7-13,5mm, IR LED, 12VDC, IP66
For Prices and Availability please login.

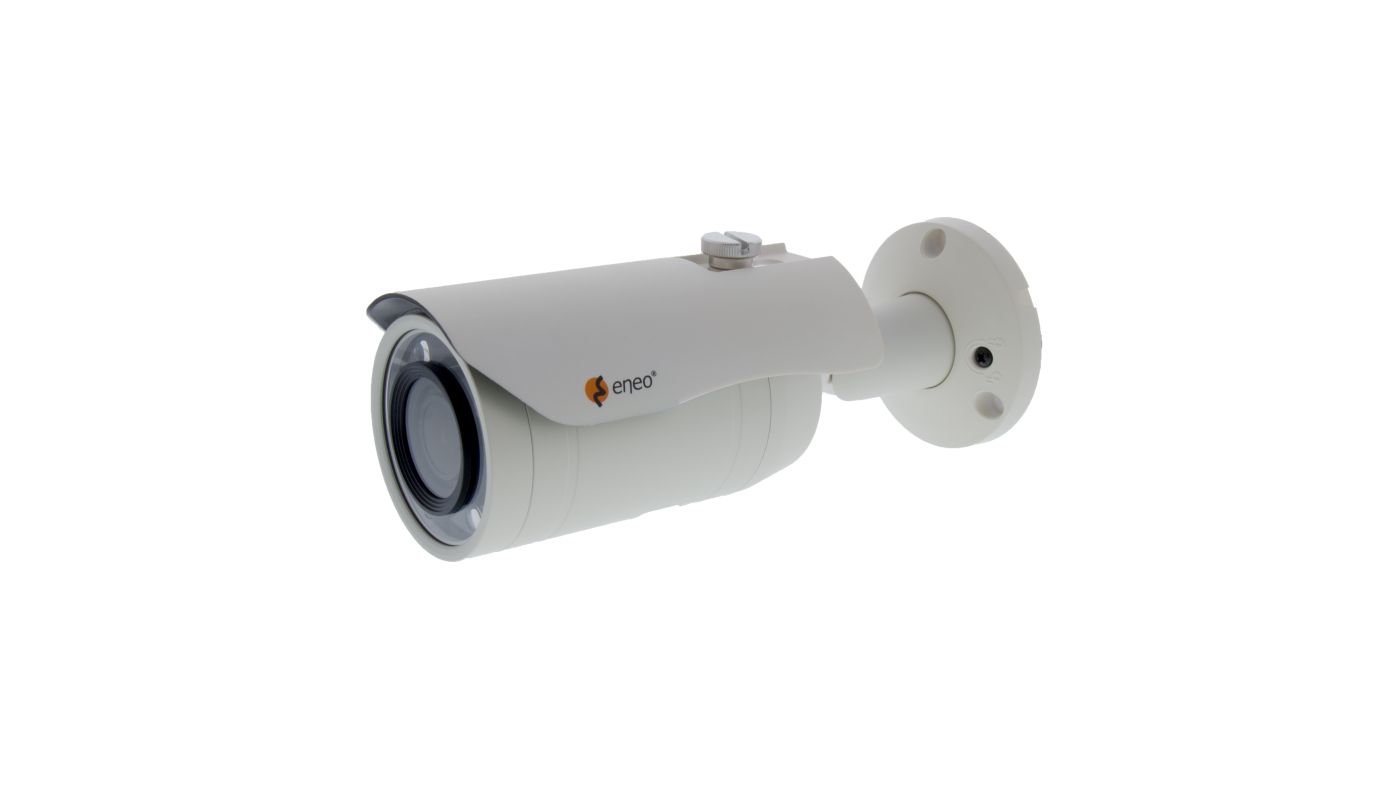

Main image
Click to view image in fullscreen
![]()
Camera not included
Specifications
| Manufacturer order number | 233016 |
|---|
| Alarm inputs | 0 |
|---|---|
| Aperture Range (F) | F1.6 |
| Audio support | No |
| Backlight compensation | No |
| Brand | eneo |
| Camera shape | Bullet |
| Chip size | 1/2,8" |
| Control Interfaces | Coaxitron (HD Protocol) |
| Day/night switching | Switchable IR Filter (ICR) |
| Digital Noise Reduction (DNR) | Yes |

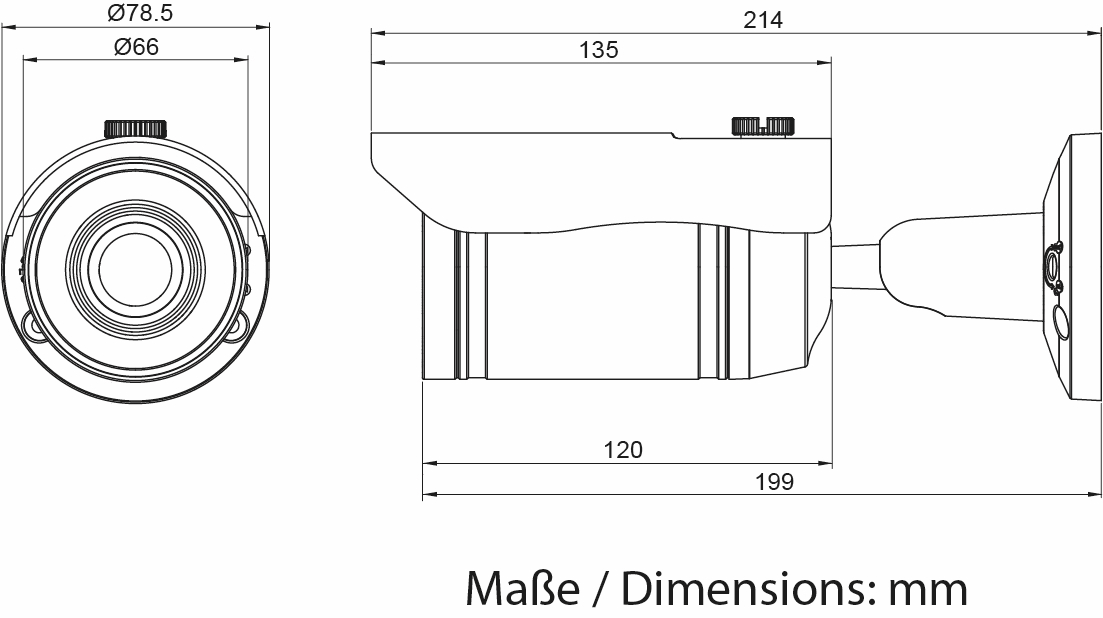

| Dimensions (WxHxD) (extended) | 78,5x78,5x214mm |
| External connections | video (BNC),12VDC power input,connection cable approx.40cm |
| Fan | No |
| Flickerless function | Yes |
| Focal length | 2,7 - 13,5 mm |
| Heating | Yes |
| Horizontal angle of view | 95 - 27° |
| Housing material | Aluminium, Plastic |
| Housing type | Outside |
| Identify (250px/m) | 39 m |
| Illumination range | ca. 30m |
| Integrated wall mount | Yes |
| Interface Protocols | UTC (HD Signal Format), UTC (HD Signal Format) |
| Lens Type | Varifocal |
| Lighting | Infrared |
| Low Speed Shutter | No |
| Menu languages | Chinese, Dutch, English, French, German, Italian, Polish, Portuguese, Russian, Spanish, Turkish |
| Motion detector | No |
| Mounting type | Ceiling, Wall |
| Multicast | No |
| Number of alarm outputs | 0 |
| Perceiving (25px/m) | 44 m |
| Photosensitivity | 0,3 Lux bei F1,6,40 IRE |
| Power supply | 12VDC |
| Protection | IP66 |
| Recording sensor | CMOS |
| Remark | NDAA compliance under Section 889 |
| Scope of delivery | manual,drilling template,bag of screws |
| Signal Format | AHD @ 2MP, AHD @ 2MP, Composite (FBAS), CVI @ 2MP, HD-TVI @ 2MP, HD-TVI @ 2MP, HD-TVI @ 2MP, HD-TVI @ 2MP |
| Signal-to-noise ratio | 52 dB |
| Sunshade canopy | Yes |
| System | True Day&Night |
| Temperature Range (Operating) | -20°C ~ +50°C |
| Text overlay | available |
| Vandalism-resistant | No |
| Watch (62px/m) | 166 m |
| White balance | ATW,AWB,Manual,Outdoor,Indoor,AWC |
| Wide Dynamic Range (WDR) | D-WDR, D-WDR, D-WDR, D-WDR, D-WDR, D-WDR, D-WDR |
| Zoom Factor (Digital) | 0 |
| Zoomfactor (optical) | 4 |
Main Features
- 1/2.8" 2.3 Megapixel progressive scan CMOS sensor
- Compact housing for outdoor use
- Resolution max. 1920x1080 (Full HD)
- Multisignal: HD-TVI, AHD, CVI, Composite selectable
- Variofocal 2.8~12mm day&night lens
- LSC (Lens shading compensation)
- Removable infrared cut filter
- 3D-DNR noise reduction
- Digital Wide Dynamic Range (D-WDR)
- Integral motion detection
- 4x High Power LED
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Manufacturer data sheet (german)
-
Manufacturer data sheet (english)
-
Quick reference guide for this product (multilingual)
-
Quick reference guide for this product (multilingual)
-
Manual for this product (english)
-
NDAA compliant products
-
Product image in a high resolution
-
Declaration of conformity (german and english)
