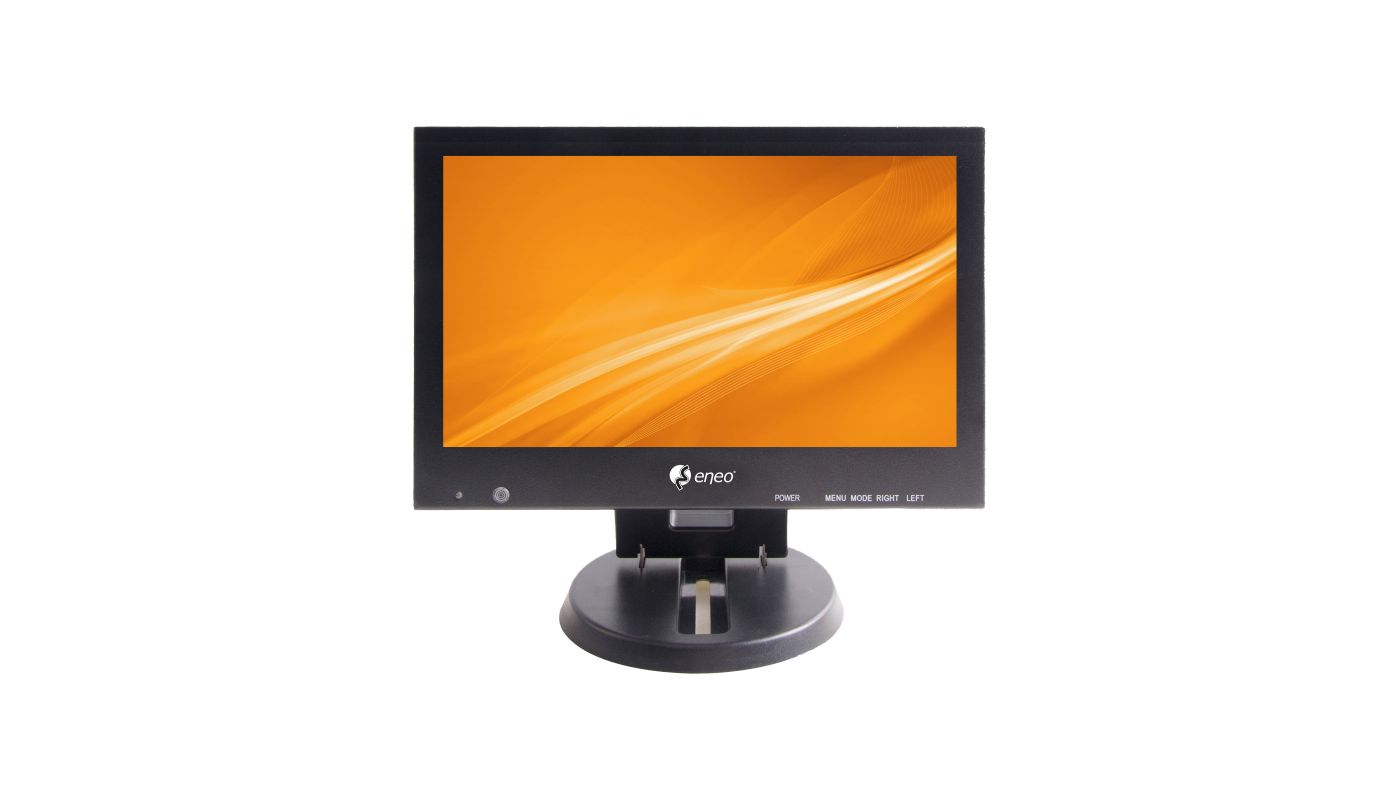

eneo VM-SD8M

SKU 229215
8" (20,3cm) LCD Monitor SD, 1024x768, LED, HDMI, VGA, Composite
Data sheet

Camera not included

Specifications

Brand
eneo
EAN/GTIN
4260229841174
Manufacturer order number
229215
Series
eneo Monitor

Video

Maximum Image Resolution (H x V)
1024x768
Resolution (extended)
800x600,1024x768

Display

Aspect ratio
4:3
Backlight
LED
Brightness (typical)
250 cd/m²
Contrast ratio (typical)
700:1
Display
Clear Display, Color TFT-LCD
Pixel error class
ISO 13406-2, Class 2
Refresh rate
60 Hz
Response time (typical)
5 ms
Screen diagonal (cm)
20.3 cm
Screen diagonal (inches)
8 "
Viewing Angle Horizontal
160 °
Viewing Angle Vertical
160 °

Functions

Comb filter
Yes
Menu languages
English, German

Interfaces / Inputs/ Outputs

Audio Inputs
1
Transmission Technology
HDCP 1.4, HDCP 2.2, HDMI 1.4a
Video Inputs
2x Composite (FBAS), HDMI, VGA
Video Outputs
Composite (FBAS)

General

Applications
Industry
Color (Housing)
Black

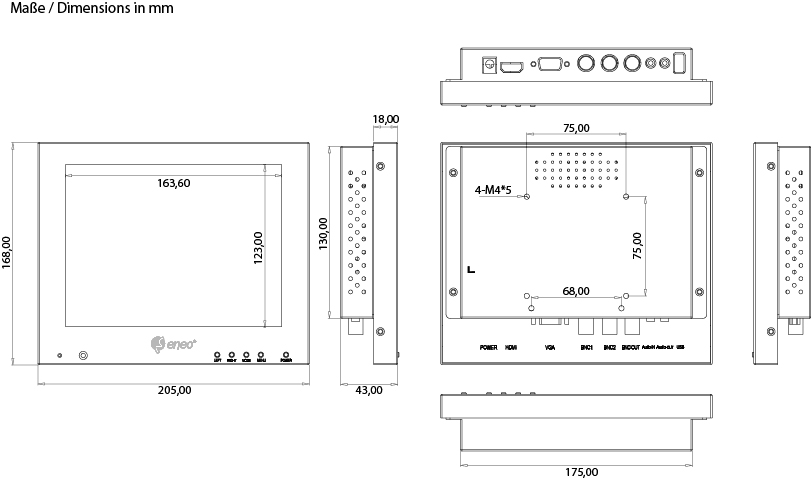

Dimensions (WxHxD) (extended)
189,9x148,8x43mm
Energy efficiency class
D
Fortification
VESA Standard 75x75mm
Housing material
Metal
Power consumption
10 W
Power supply
12VDC
Weight
2.5 kg

Parts supplied

Scope of delivery
manual,power cord,PSU 100~240VAC,feet,IR remote controller,HDMI cable

Notes

Remark
NDAA compliance under Section 889

Main Features

  • Professional 8" (23,3 cm) LCD monitor
  • Industrial design built to run 24x7x365 continuously
  • Maximum resolution 1024x768 pixels
  • LED Back Light
  • Fast response time 5ms
  • Perfect presentation through digital 3D filtering and noise reduction
  • Different video inputs HDMI, VGA, Composite
  • Supply voltage: 12VDC
  • VESA Standard 75x75mm
  • Metal cabinet including stand
