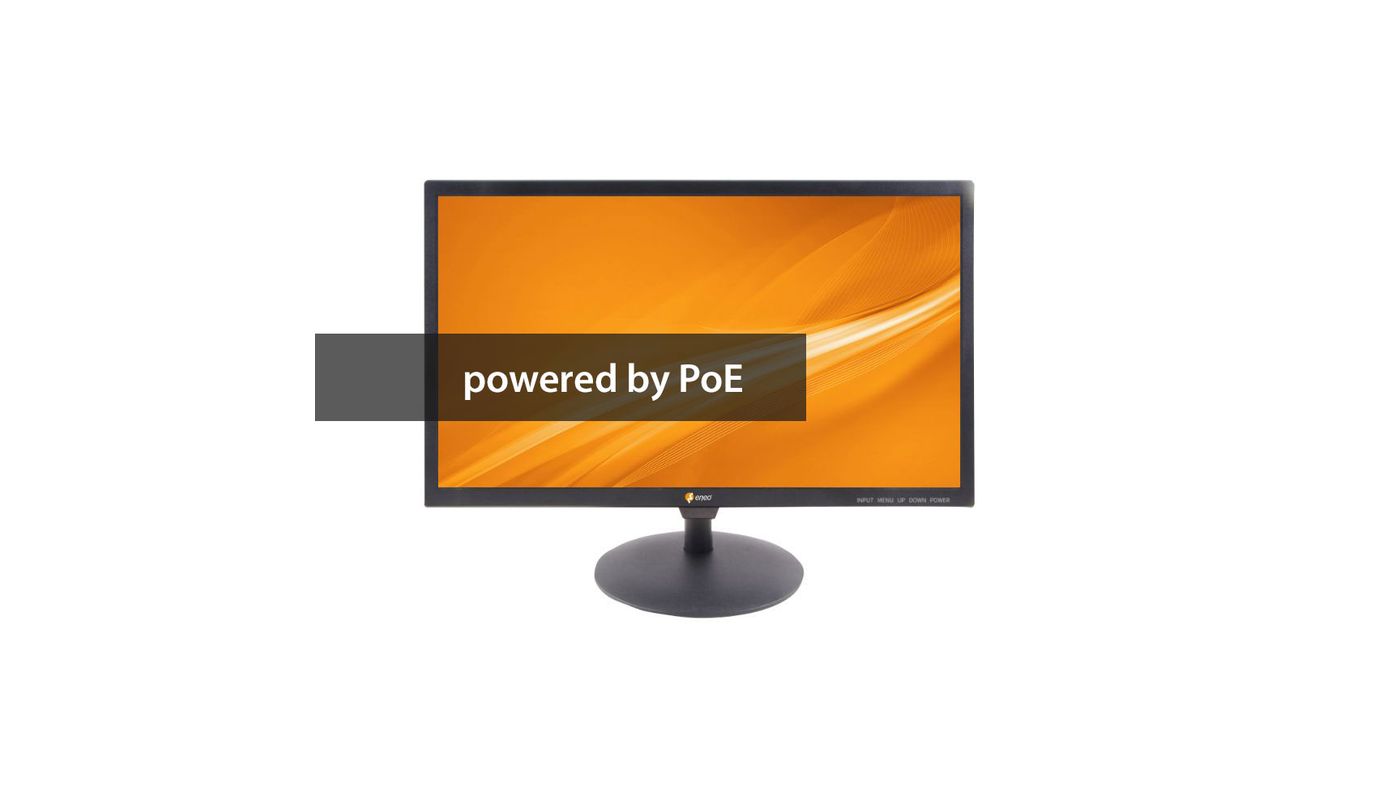

eneo VM-FHD22PP

SKU 233631
22" (56cm) LCD Monitor, FHD, 1920x1080, LED, HDMI, VGA, RJ45 PoE Port
Data sheet

Specifications

Brand
eneo
EAN/GTIN
4260229841167
Manufacturer order number
233631
Series
eneo Monitor

Video

Maximum Image Resolution (H x V)
1920x1080
Resolution (extended)
800x600,1024x768,1280x1024,1600x900,1920x1080

Display

Aspect ratio
16:9
Backlight
LED
Brightness (typical)
250 cd/m²
Contrast ratio (typical)
1000:1
Display
Anti-glare display, Color TFT-LCD, Hard coating (3H)
Pixel error class
ISO 13406-2, Class 2
Refresh rate
60 Hz
Response time (typical)
5 ms
Screen diagonal (cm)
56 cm
Screen diagonal (inches)
22 "
Viewing Angle Horizontal
178 °
Viewing Angle Vertical
178 °

Functions

Comb filter
Yes
Menu languages
English, French, German, Italian, Spanish

Interfaces / Inputs/ Outputs

Transmission Technology
HDCP 1.4, HDCP 2.2, HDMI 1.4a
Video Inputs
HDMI 2.0, VGA

General

Applications
Desktop, Industry
Color (Housing)
Black
Dimensions (WxHxD) (extended)
508,35x305,93x200mm
Energy efficiency class
E
Fortification
VESA Standard 100x100mm
Housing material
Plastic
Power consumption
25 W
Power supply
12VDC
Weight
3.5 kg

Parts supplied

Scope of delivery
manual,PSU 100~240VAC,IR remote controller,feet

Notes

Remark
NDAA compliance under Section 889

Additional Productinformation

eneo VM-FHD22PP – The professional 22" monitor for security and industrial use. Thanks to PoE (IEEE 802.3at), it can be powered directly via the network cable – ideal where no socket is available. Perfect for control centers, equipment rooms or mobile setups. Also usable as a 12VDC power source for external devices!

Main Features

  • Professional 22"(56 cm) LCD monitor
  • Maximum resolution Full HD 1920x1080 pixels
  • LED Back Light
  • 3D filtering and noise reduction
  • Built to run 24x7x365 continuously
  • Different video inputs HDMI, DVI, VGA
  • Built-in speakers
  • Power supply by 12VDC or PoE input (RJ45)
  • Plastic cabinet including stand
