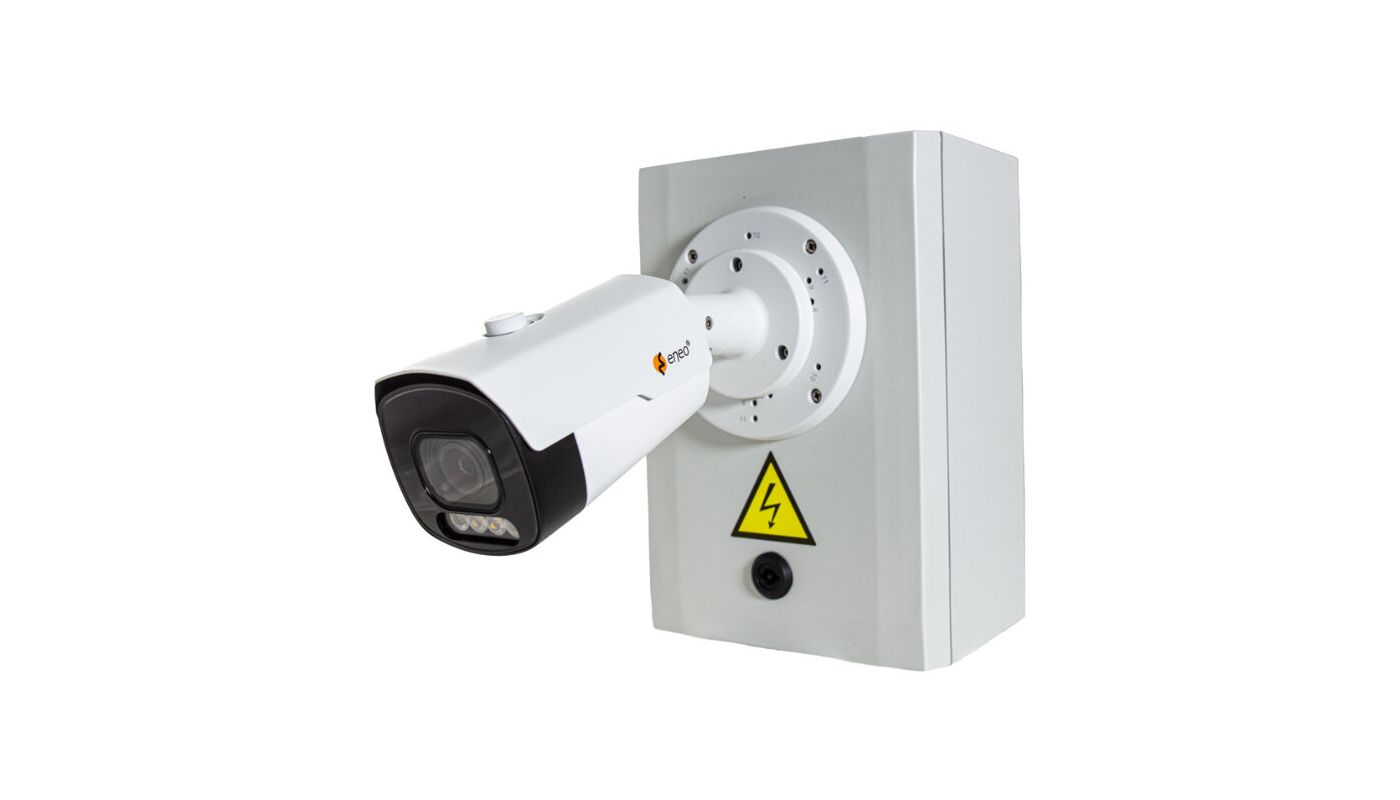

SOL-VICAM-MOBILE-LTE

SKU 238675
INB-68M2812MFA, Junction box 3840 x 2160, 24h Farbe, IR, LTE, Varifocal lens 2,8 - 12 mm, WDR
Data sheet

Specifications

Manufacturer order number 238675
Series Solvido WDR Kameras
Alarm inputs 0
Audio support Yes
Backlight compensation Yes
Brand Solvido
Camera Type Face, Intrusion Detection, People counting, Retail Intelligence
Chip size 1/2,8"
Control Interfaces Ethernet
Day/night switching Switchable IR Filter (ICR)
Digital Noise Reduction (DNR) Yes
Focal length 2,8 - 12 mm
Heating Yes
Horizontal angle of view 107 - 34°
Housing material Aluminium
Housing type Outside
Image resolution max. 3840x2160
Image transfer rate max. 30 fps
Integrated wall mount No
Internal memory microSDHC card, microSDXC card
Lens Type Varifocal (motorized)
Lighting Infrared, White
Low Speed Shutter Yes
Motion detector Yes
Multicast No
ONVIF ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
Photosensitivity 0,002 Lux bei F1,0
Power supply 230VAC
Protection IP66
Recording sensor CMOS
Resolution standard 8 MP
Sunshade canopy No
System 24h Color
Temperature Range (Operating) -30°C ~ +50°C
Vandalism-resistant No
Video Compression H.264, H.264+, H.265, H.265+, M-JPEG
Wide Dynamic Range (WDR) 120dB
Wiper No
Zoom Factor (Digital) 0

Additional Productinformation

Features:

Wireless connectivity: No network required: say goodbye to cumbersome LAN cables. Our solution uses wireless technology for easy installation and flexible positioning. It uses the mobile network (LTE) to transmit the video data.

Suitable for construction sites: Thanks to its robust design and resistant materials, our solution is perfect for use on construction sites.

Easy installation/dismantling: Installation and setup are effortless and do not require any special requirements or tools. All you need is a 230V power supply.

Remote access via QR code: Access the video data conveniently from anywhere by simply scanning the QR code with your smartphone. The video data can also be accessed via the PC using eneo INsight.

Our mobile video solution is the optimal choice for construction sites and other locations without network infrastructure. It enables simple monitoring and security wherever you need it.

Main Features

  • Portable video surveillance incl. connection cable
  • 1/2,8" Sony STARVIS CMOS-Sensor, 8MP/30fps
  • Plug & Play
  • Incl. 5m power supply cable with device connector
  • Dimensions: 300 x 200 x 400 mm
  • Wireless connectivity with LTE
  • Applicable for construction sites
  • Effortless mounting/demounting
  • Remote access with QR-Code
  • INB-68M2812MFA
  • SIM card not included
  • Antenna does not support WLAN
