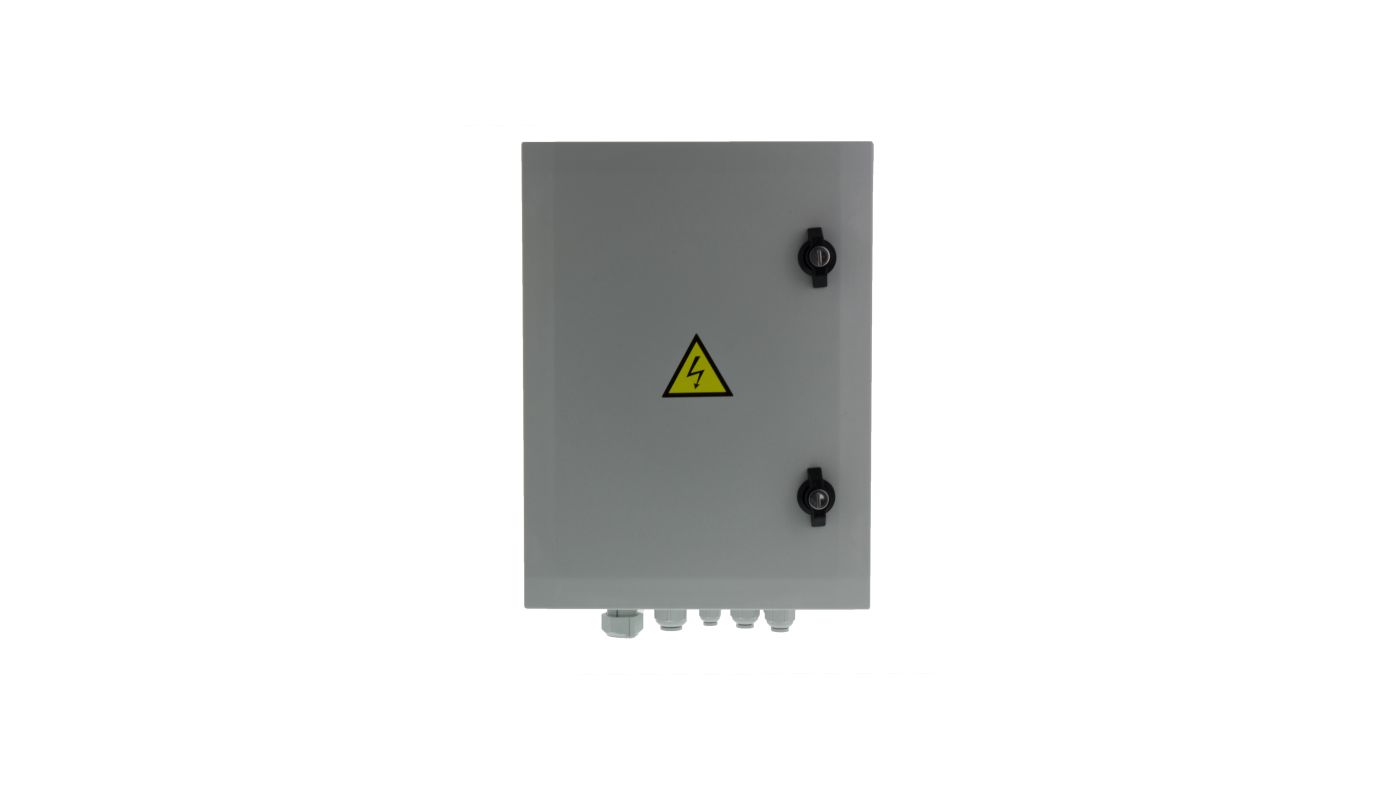

camera connection box for video security with lightning protection, 400x300x210mm
Main Features
  • Optimised for outdoor use
  • Electrically prewired for flexible, modular expansion.
  • UV stable polycarbonate, corrosion-resistant
  • Protective class IP66
  • Impact resistance IK 10, vandalism protected
  • Temperature range -40°C to +70°C
  • Swivelling door (with door contact switch)
  • Wall or mast mounted
  • Fast, easy installation
  • Simple mechanical finishing
  • Including service socket and electrical circuit breaker
  • Lightning protection combination arrestor type
More Information
Brand Solvido
Series Solvido IQbox
Housing outdoor
Color (housing) RAL7035
Hosuing material Polycarbonate
Heater optional
Dimension (lxwxd) 400x300x210mm
Supply voltage 230VAC
Operating temperature -40°C ~ +70°C
Protection rating IP66
Certifications IK10
Manufacturer order number 226845
to top
to top
  • Manufacturer data sheet PDF 226845_en_sup.pdf Original product information from the manufacturer 197.1 kB
  • Marketing Infos PDF SOL-IQbox Betriebsanleitung.pdf SOL-IQbox Betriebsanleitung 1.4 MB
  • Marketing Infos PDF SOL-IQbox_Konformitätserklärung_.pdf SOL-IQbox_Konformitätserklärung_.pdf 136.9 kB
  • Data sheet PDF 226845_sol-iqbox-plus-b.pdf Data sheet with specifications generated live from the product database <350KB
  • Specifications text DOC 226845_sol-iqbox-plus-b.doc Technical data as Word document, generated live from the product database <50KB
