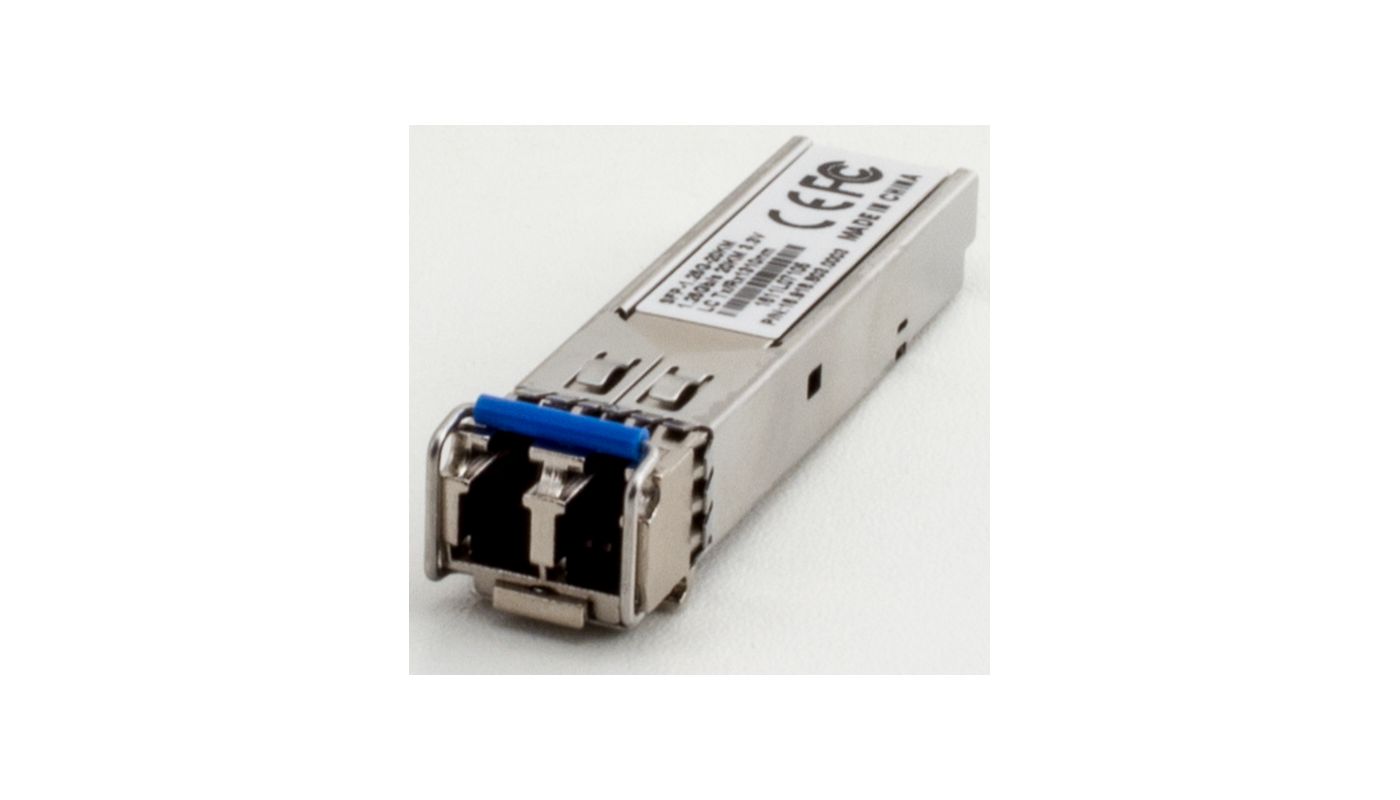

SFP-0850M10

SFP Modul, 1.25Gbps, 550m, Multimode, 850nm, Duplex LC Connector, 0°~+70°C
SKU
216479
Main Features
  • Compatible to IEEE802.3z Gigabit Ethernet Standard
  • Bandwith 1,25Gbps
  • Industry standard small form pluggable (SFP) package
  • Duplex LC connector, 850nm
  • Differential LVPECL inputs and outputs
  • Single power supply 3.3V
  • Hot Pluggable
  • Class 1 laser product complies with EN 60825-1
  • Distance 50/125 µm MMF 550m
More Information
Brand eneo
Model module
Operation mode multi mode
Operation mode multi mode
Fiber optic connector Duplex LC
Weight 17g
Range 550 m
Type SFP-Modul
Operating temperature 0°C ~ +70°C
Wavelength 850nm
Number of fibers 2
Transmission medium optical fiber
Manufacturer order number 216479


to top
  • Manufacturer data sheet PDF 216479_en_sup.pdf Original product information from the manufacturer 161.5 kB
  • Manufacturer datasheet PDF Original product information from the manufacturer
  • Data sheet PDF 216479_sfp-0850m10.pdf Data sheet with specifications generated live from the product database <350KB
  • Specifications text DOC 216479_sfp-0850m10.doc Technical data as Word document, generated live from the product database <50KB
