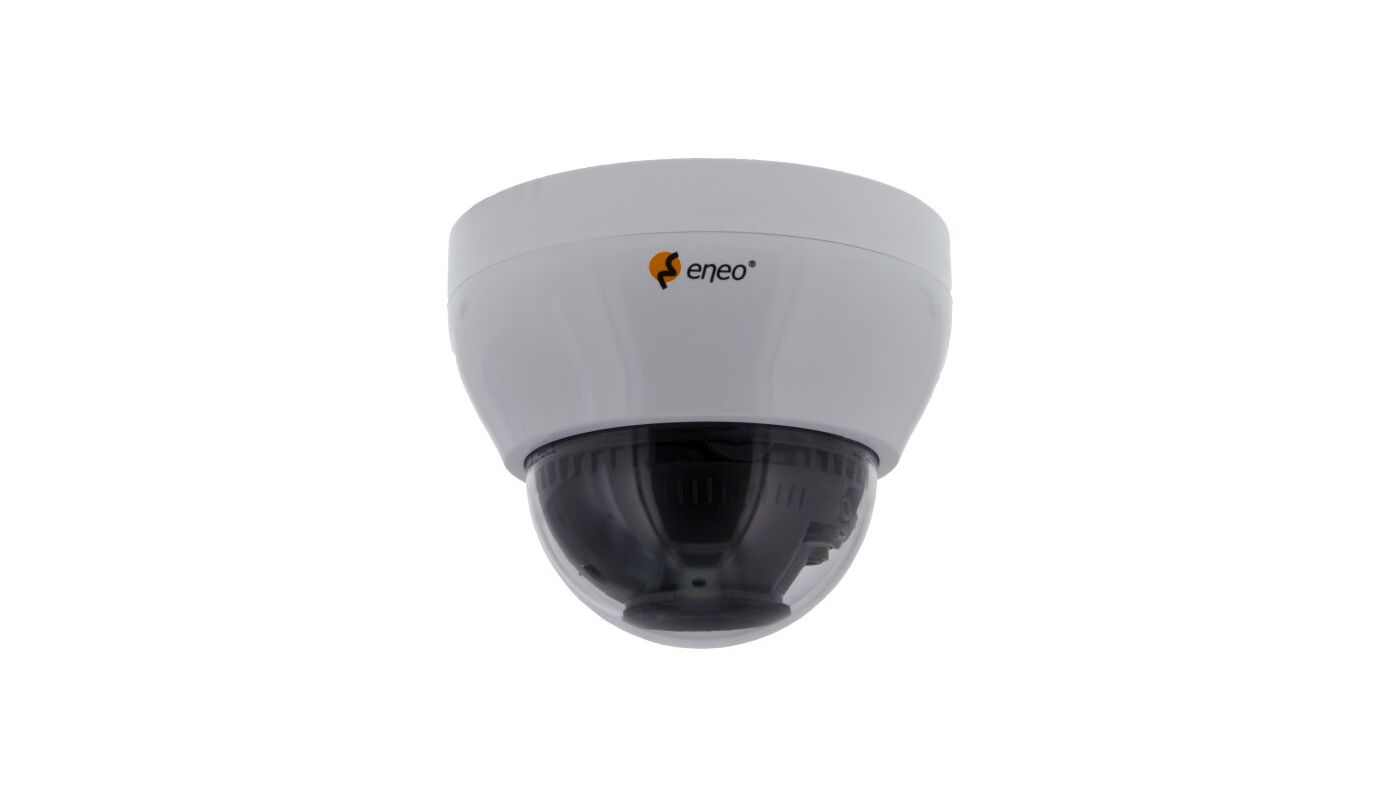

MPD-62V2713P0A

1/2,8" HD Dome, Fix, Day&Night 1920x1080, Lens 2,7-13,5mm, IR LED, 12VDC, Indoor
SKU
233014
Main Features
  • 1/2.8" 2.3 Megapixel progressive scan CMOS sensor
  • Compact plastic housing for indoor use
  • Resolution max. 1920x1080 (Full HD)
  • Multisignal: HD-TVI, AHD, CVI, Composite selectable
  • Variofocal 2.8~12mm day&night lens
  • LSC (Lens shading compensation)
  • Removable infrared cut filter
  • 3D-DNR noise reduction
  • Digital Wide Dynamic Range (D-WDR)
  • Integral motion detection
  • Wedge adapter included (10° inclination)
  • Scratch resistant hard coated bubble
More Information
Brand eneo
Camera type Dome
Sensor size 1/2.8"
Sensitivity 0,3 Lux at F1,3, 40 IRE
System True Day&Night
Imager CMOS
Day&Night switch ICR
Low Speed Shutter yes
Signal format AHD @ 2MP, Composite (FBAS), CVI @ 2MP, HD-TVI @ 2MP
Backlight Compensation BLC, HLC
Wide Dynamic Range (WDR) D-WDR
Motion Detector yes
Frame rate 25/30fps @ 1920x1080p
Lens Type Varifocal
llumination Infrared
Zoom Factor 4x
Focal Length 2,7 - 13,5 mm
Digital Zoom no
MOD (Mininum Object Distance) 0,5 m
Aperture range (F) F1,3
Iris Control DC
Resolution Pixels 1920x1080, 960x576
Vertical Angle of View 49 - 15°
Horizontal Angle of View 95 - 27°
Detect (25px/m) 44 - 198 m
Observe (62 px/m) 16,6 - 80,5 m
Recognize (125 px/m) 8,2 - 40,1 m
Identify (250 px/m) 3,9 - 20,1 m
Analysis functions Defog
Digital Noise Reduction yes
Video outputs AHD, Composite (CVBS), CVI, HD-TVI
Alarm inputs nein
Alarm outputs no
Serial interfaces Coaxitron (HD Protocol)
Serial interfaces protocols UTC (HD-Signal Format)
Series eneo KX-Series
Dimensions (HxWxD) 100x116mm
Weight 260g
Illumination range approx. 30m
Color (housing) white
Color (bubble) clear
Housing Indoor
Hosuing material Plastic
Heater no
Power consumption 6W
Mounting Ceiling mount, Wall mount
Supply voltage 12VDC
Operating temperature -10°C ~ +50°C
Vandal proof no
Manufacturer order number 233014

to top
to top
  • Marketing Infos PDF NDAA konforme Produkte.pdf NDAA konforme Produkte 267.7 kB
  • Manufacturer data sheet PDF 233014_en_sup.pdf Original product information from the manufacturer 381.1 kB
  • Manufacturer datasheet PDF Original product information from the manufacturer
  • Data sheet PDF 233014_mpd-62v2713p0a.pdf Data sheet with specifications generated live from the product database <350KB
  • Specifications text DOC 233014_mpd-62v2713p0a.doc Technical data as Word document, generated live from the product database <50KB
to top

Description
