MPC-54A0003M0A
SKU 218643
1/2,9" HD Camera 2560x1440, Day&Night, AF Zoom, WDR, 3,2-9 mm, Indoor
For Prices and Availability please login.

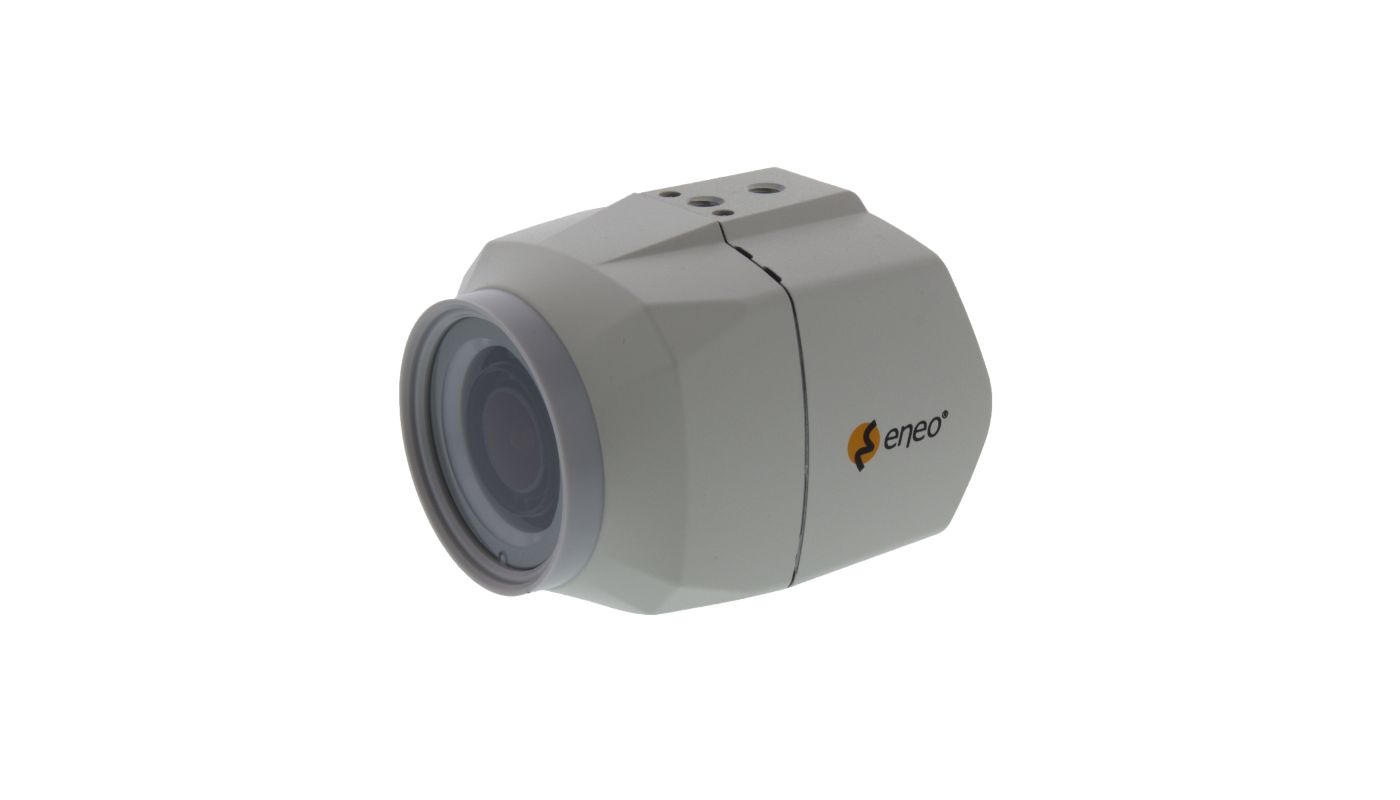

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 218643 |
|---|---|
| Series | eneo KX-Serie,eneo COAXIZE,eneo Candid Box |
| Alarm inputs | 0 |
|---|---|
| Aperture Range (F) | F1.6 |
| Audio support | No |
| Backlight compensation | No |
| Brand | eneo |
| Camera shape | Zoom cameras |
| Chip size | 1/2,9" |
| Control Interfaces | Coaxitron (HD Protocol), RS-485 |
| Day/night mode | Automatic,Day,Night,night-color mode |
| Day/night switching | Switchable IR Filter (ICR) |
| Digital Noise Reduction (DNR) | Yes |

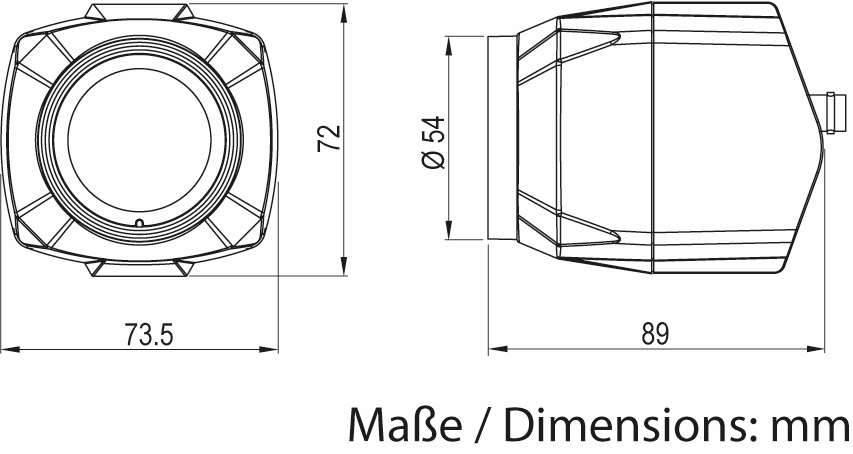

| Dimensions (WxHxD) (extended) | 73.5x72x89mm |
| External connections | voltage input,1x SDI Signal (BNC),1x HD Analog Signal (BNC) |
| Fan | No |
| Flickerless function | Yes |
| Focal length | 3,2 - 9 mm |
| Heating | Yes |
| Horizontal angle of view | 75 - 26° |
| Housing material | Aluminium |
| Housing type | Inside |
| Identify (250px/m) | 6.6 m |
| Integrated wall mount | No |
| Interface Protocols | UTC (HD Signal Format), UTC (HD Signal Format) |
| Lens Type | Auto Focus Zoom |
| Low Speed Shutter | No |
| Menu languages | Chinese, English, German, Japanese, Korean |
| Motion detector | No |
| Multicast | No |
| Number of alarm outputs | 0 |
| Perceiving (25px/m) | 80 m |
| Photosensitivity | 0,1 Lux bei F1,6,40 IRE |
| Power supply | 12VDC, 24VAC, 24VAC, 24VAC |
| Recording sensor | CMOS |
| Remark | NDAA compliance under Section 889 |
| Scope of delivery | manual |
| Signal Format | AHD @ 4MP, EX-SDI @ 4MP, HD-SDI @ 2MP, HD-TVI @ 4MP |
| Signal-to-noise ratio | 50 dB |
| Sunshade canopy | No |
| System | True Day&Night |
| Temperature Range (Operating) | -10°C ~ +50°C |
| Text overlay | available |
| Vandalism-resistant | No |
| Watch (62px/m) | 32 m |
| White balance | AUTO,AUTOext,Manual,Preset |
| Wide Dynamic Range (WDR) | D-WDR, D-WDR, D-WDR, D-WDR, D-WDR, D-WDR, D-WDR, WDR 113dB |
| Zoom Factor (Digital) | 0 |
| Zoomfactor (optical) | 3 |
Main Features
- 1/2,9" 6,64 Megapixel SONY STARVIS CMOS-Sensor
- Resolution max. 2560x1440@25/30fps
- Optical 3x auto focus zoom, 3,2~9mm
- Separate outputs for digital and multi-signal
- Multisignal: HD-TVI, AHD selectable
- Digital signal: EX-SDI, HD-SDI selectable
- DOL-WDR by triple scan images at 30/25fps &
- ROI (Region of Interest) WDR mode
- Point of Interest & Smart Motion Zoom
- Compact design
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Manufacturer data sheet (german)
-
Manufacturer data sheet (english)
-
Quick reference guide for this product (multilingual)
-
Quick reference guide for this product (multilingual)
-
Manual for this product (english)
-
NDAA compliant products
-
Declaration of conformity (german and english)
