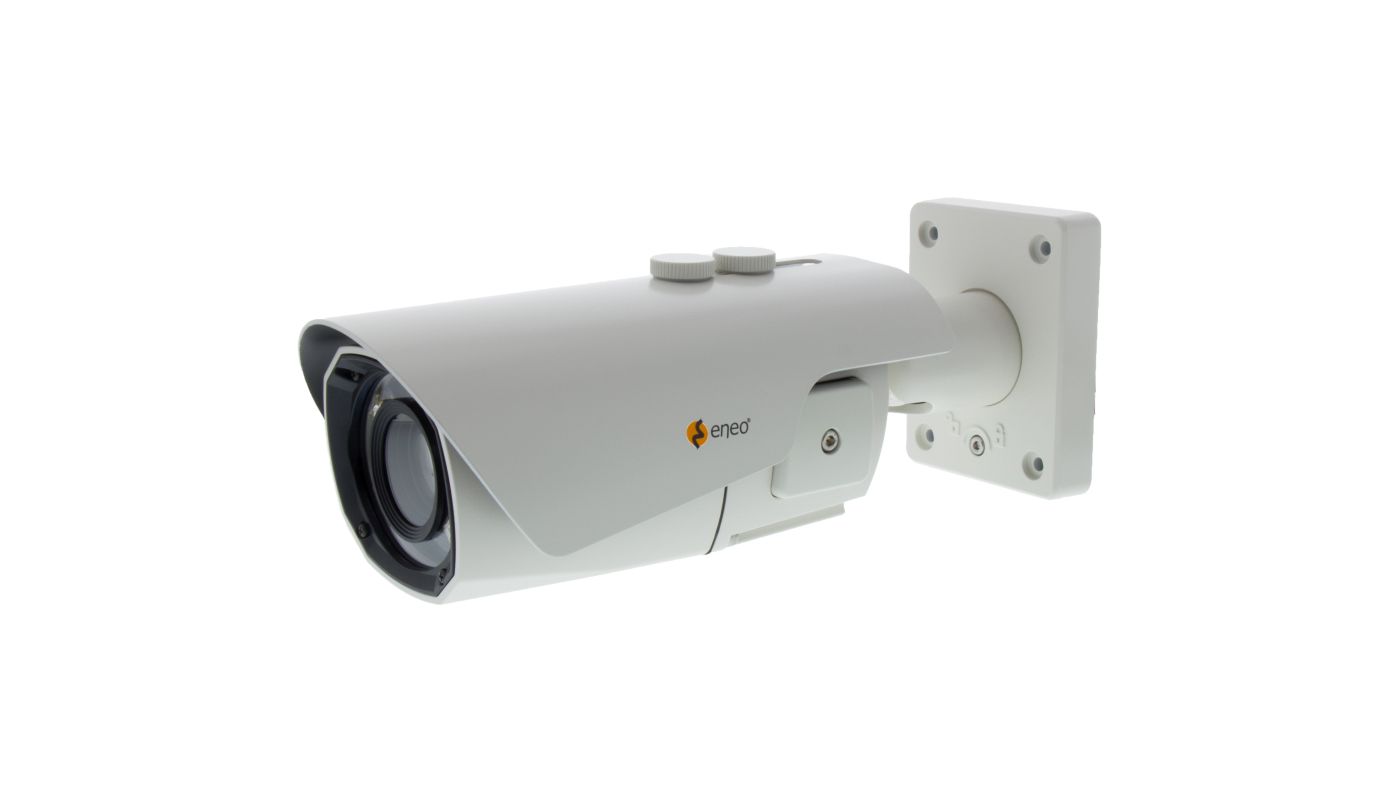

eneo MPB-72M2713M0A
SKU 217277
No longer available
Successor: MPB-72M2713M0B
1/2.8" HD Camera, Day&Night, 1920x1080, Infrared, WDR, 2.7-13.5mm, 12/24V, IP67
discontinued
Camera not included
Specifications
- Brand
- eneo
- Manufacturer order number
- 217277
- Series
- eneo KX-Serie,eneo COAXIZE,eneo Candid Medium
Camera
- Backlight compensation
- Yes
- Camera shape
- Bullet
- Chip size
- 1/2,8"
- Day/night mode
- Automatic,Day,Night
- Day/night switching
- Switchable IR Filter (ICR)
- Flickerless function
- Yes
- Low Speed Shutter
- Yes
- Photosensitivity
- 0,08 Lux bei F1,4,40 IRE
- Recording sensor
- CMOS
- Signal-to-noise ratio
- 50 dB
- System
- True Day&Night
- White balance
- Automatic,Preset,Manual
DORI
- Detect (125px/m)
- 8 - 25 m
- Identify (250px/m)
- 4 - 12 m
- Perceiving (25px/m)
- 47 - 128 m
- Watch (62px/m)
- 18 - 52 m
Lens
- Aperture Range (F)
- F1.4
- Focal length
- 2,7 - 13,5 mm
- Horizontal angle of view
- 100 - 38°
- Lens Type
- Varifocal (motorized)
- Vertical angle of view
- 53 - 19°
- Zoom Factor (Digital)
- 0
- Zoomfactor (optical)
- 4
Video
- Resolution (extended)
- 1280x720,720x576
- Signal Format
- AHD @ 2MP, Composite (FBAS), CVI @ 2MP, EX-SDI @ 2MP, HD-SDI @ 2MP, HD-TVI @ 2MP
Display
- Image resolution max.
- 1920x1080
Functions
- Digital Noise Reduction (DNR)
- Yes
- Menu languages
- Chinese, English, German, Japanese, Korean
- Motion detector
- Yes
Interfaces / Inputs/ Outputs
- Alarm inputs
- 0
- Control Interfaces
- Coaxitron (HD Protocol)
- External connections
- voltage input,1x SDI Signal (BNC),1x HD/SD Analog Signal (BNC),connection cable approx.100cm
- Interface Protocols
- UTC (HD Signal Format)
- Number of alarm outputs
- 0
- Video Outputs
- AHD, Composite (FBAS), CVI
General
- Color (Housing)
- Pantone Cool Gray 1C
- Dimensions (WxHxD) (extended)
- 100x107,8x277mm
- Heating
- Yes
- Housing material
- Aluminium
- Housing type
- Outside
- Illumination range
- ca. 60m
- Integrated wall mount
- Yes
- Lighting
- Infrared
- Mounting type
- Ceiling, Wall
- Power consumption
- 10.5 W
- Power supply
- 12VDC, 24VAC
- Protection
- IP67
- Sunshade canopy
- Yes
- Temperature Range (Operating)
- -30°C ~ +50°C
- Text overlay
- available
- Weight
- 1.35 kg
- Wide Dynamic Range (WDR)
- WDR 113dB
Parts supplied
- Scope of delivery
- manual,drilling template,bag of screws
Notes
- Remark
- NDAA compliance under Section 889
Main Features
- 1/2.8" 2 Megapixel SONY STARVIS CMOS sensor
- Resolution max. 1920x1080 pixels (Full HD)
- Separate outputs for digital and multi-signal
- Multisignal: HD-TVI, AHD, CVI and Composite selectable
- Digital signal: EX-SDI, HD-SDI selectable
- Motorized lens 2.7 ~ 13.5mm
- ROI (Region of Interest) WDR mode
- Integrated motion detector, defog, privacy zones
- IP67
- Easy installation, central locking screw
- IR illumination switchable via OSD menu
