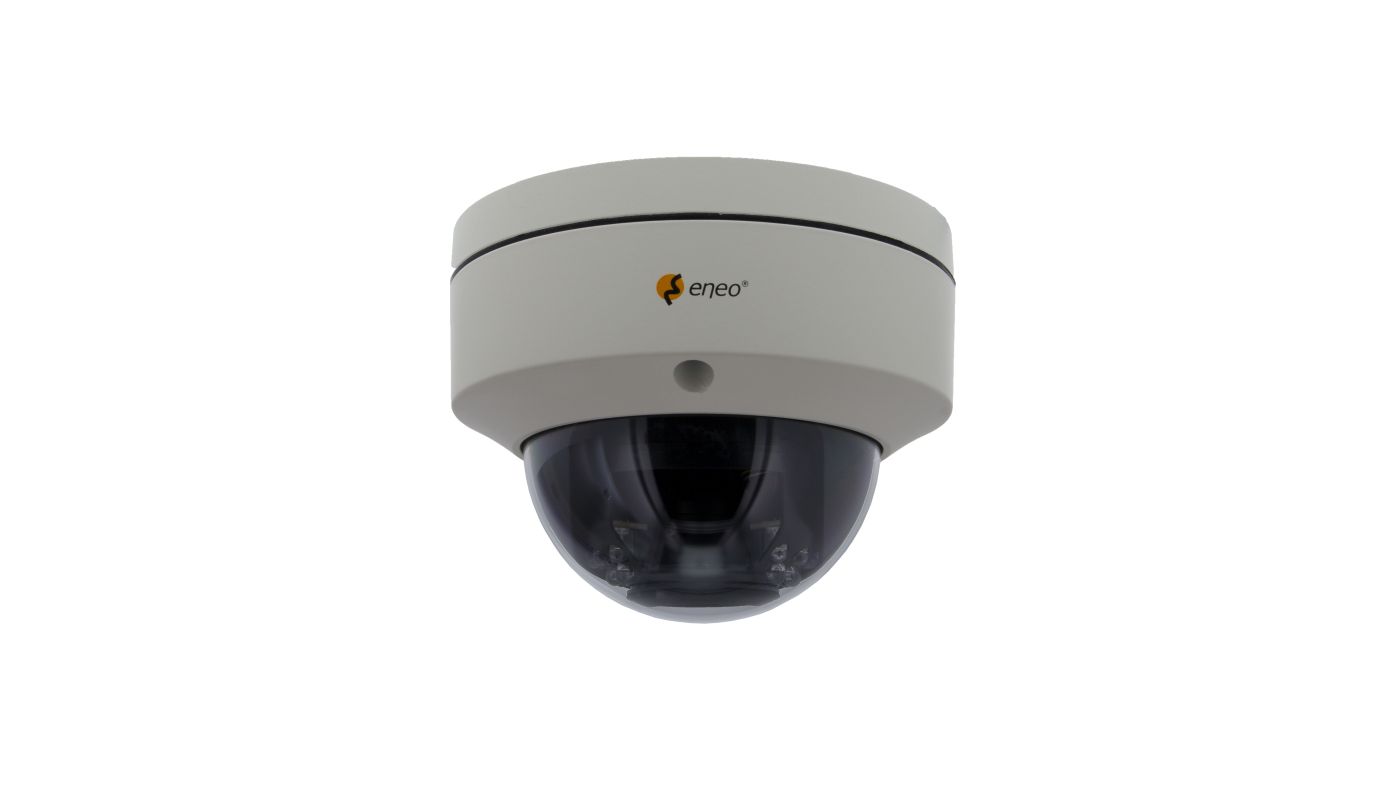

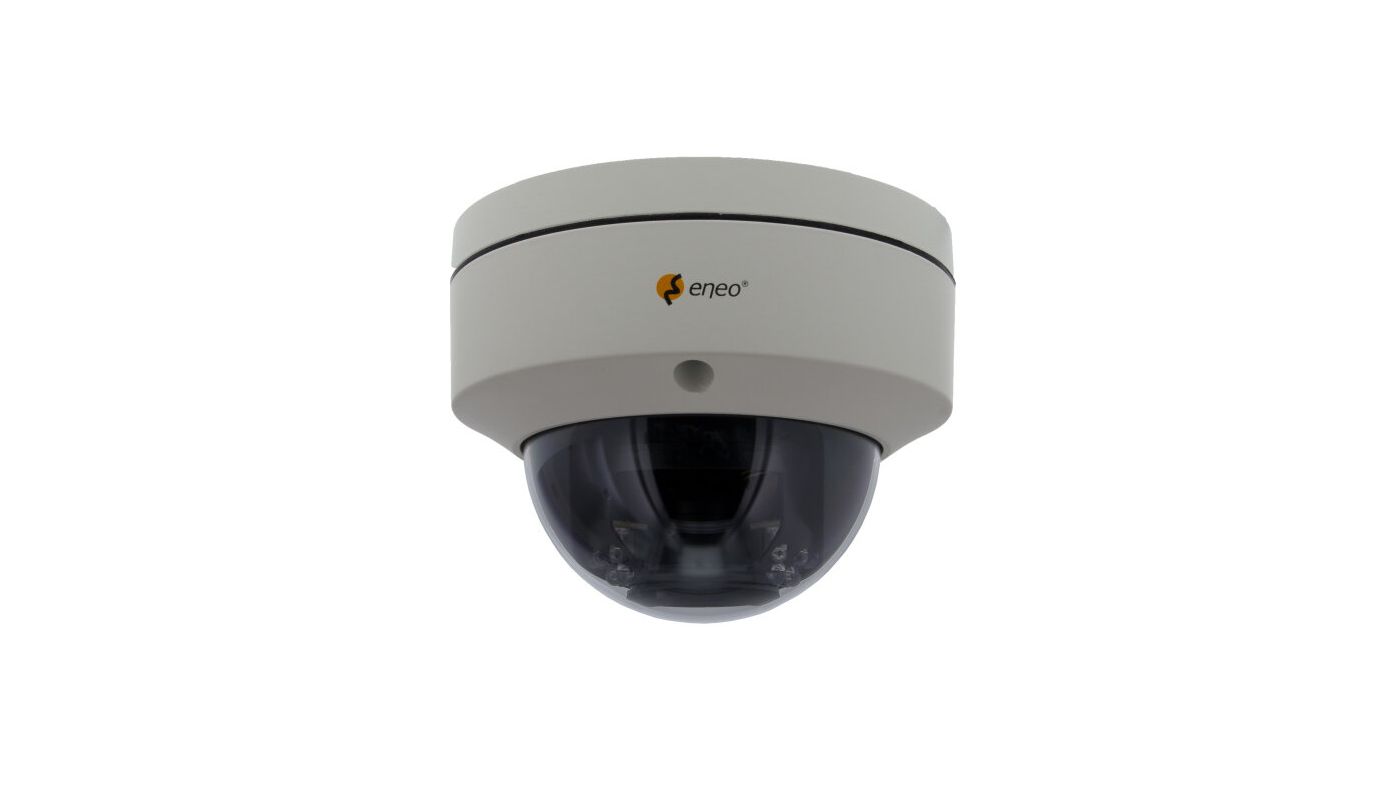

eneo MED-62V2713M0A

SKU 233015
HD Analogue Dome, Fix, Day&Night 1920x1080, Lens 2,7-13,5mm, IR LED, 12VDC, IP66, IK10
Data sheet

Specifications

Brand
eneo
EAN/GTIN
4260229841433
Manufacturer order number
233015
Series
eneo COAXIZE

Camera

Automatic Electronic Shutter (AES)
1/25 ~ 1/50,000sec
Backlight compensation
Yes
Camera shape
Minsters
Chip size
1/2,8"
Day/night mode
Yes
Day/night switching
Switchable IR Filter (ICR)
Flickerless function
Yes
Low Speed Shutter
Yes
Manual Electric Shutter (MES)
1-25~1-50,000sec
Photosensitivity
0,3 Lux bei F1,6,40 IRE
Recording sensor
CMOS, Sony IMX323
Signal-to-noise ratio
52 dB
System
True Day&Night
White balance
ATW,AWB,Manual,Outdoor,Indoor,AWC

DORI

Detect (125px/m)
8,2 - 40,1 m
Identify (250px/m)
3,9 - 20,1 m
Perceiving (25px/m)
44 - 198 m
Watch (62px/m)
16,6 - 80,5 m

Lens

Aperture Range (F)
F1.6
Focal length
2,7 - 13,5 mm
Horizontal angle of view
95 - 27°
Lens Type
Varifocal
Vertical angle of view
49 - 15°
Zoomfactor (optical)
4

Video

Resolution (extended)
1920x1080,960x576
Signal Format
AHD @ 2MP, Composite (FBAS), CVI @ 2MP, HD-TVI @ 2MP

Display

Image resolution max.
1920x1080

Functions

Digital Noise Reduction (DNR)
Yes
Menu languages
Chinese, Dutch, English, French, German, Italian, Polish, Portuguese, Russian, Spanish, Turkish
Motion detector
Yes
Privacy Zone
Areas-ON/OFF switchable
Vertical tilt range
65 °(25 ~ 90°)

Interfaces / Inputs/ Outputs

Control Interfaces
Coaxitron (HD Protocol)
External connections
video (BNC),12VDC power input,connection cable approx.40cm
Interface Protocols
UTC (HD Signal Format)
Video Outputs
AHD, Composite (FBAS), CVI

General

Certifications
IK10
Color (dome)
clear
Color (Housing)
Pantone Cool Gray 1C

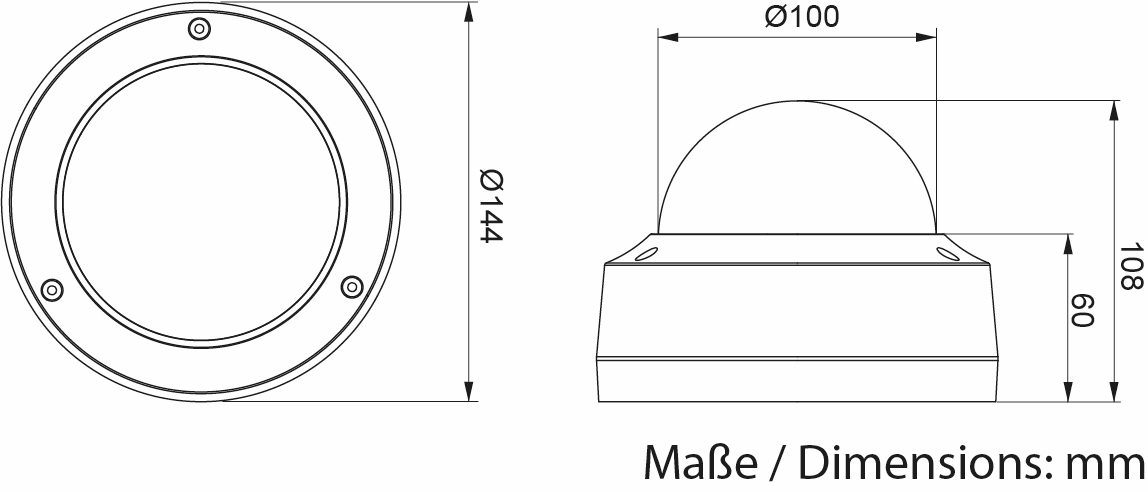

Dimensions (WxHxD) (extended)
108x144,4mm
Housing material
Aluminium
Housing type
Outside
Illumination range
ca. 30m
Lighting
Infrared
Mounting type
Ceiling, Wall
Power consumption
6 W
Power supply
12VDC
Protection
IP66
Temperature Range (Operating)
-20°C ~ +50°C
Text overlay
Switchable on/off
Vandalism-resistant
Yes
Weight
1 kg
Wide Dynamic Range (WDR)
D-WDR

Parts supplied

Scope of delivery
Quick installation guide,drilling template,4 wall plugs with screws,1 Allen wrench,video sub-output cable

Notes

Remark
NDAA compliance under Section 889

Main Features

  • 1/2.8" 2.3 Megapixel progressive scan CMOS sensor
  • Compact metal housing for outdoor use
  • Resolution max. 1920x1080 (Full HD)
  • Multisignal: HD-TVI, AHD, CVI, Composite selectable
  • Variofocal 2.8~12mm day&night lens
  • LSC (Lens shading compensation)
  • Removable infrared cut filter
  • 3D-DNR noise reduction
  • Integral motion detection
  • Scratch resistant hard coated bubble
  • Easy installation, 3-Axis gimbal
