phased-out

ISM-78F0021W0A

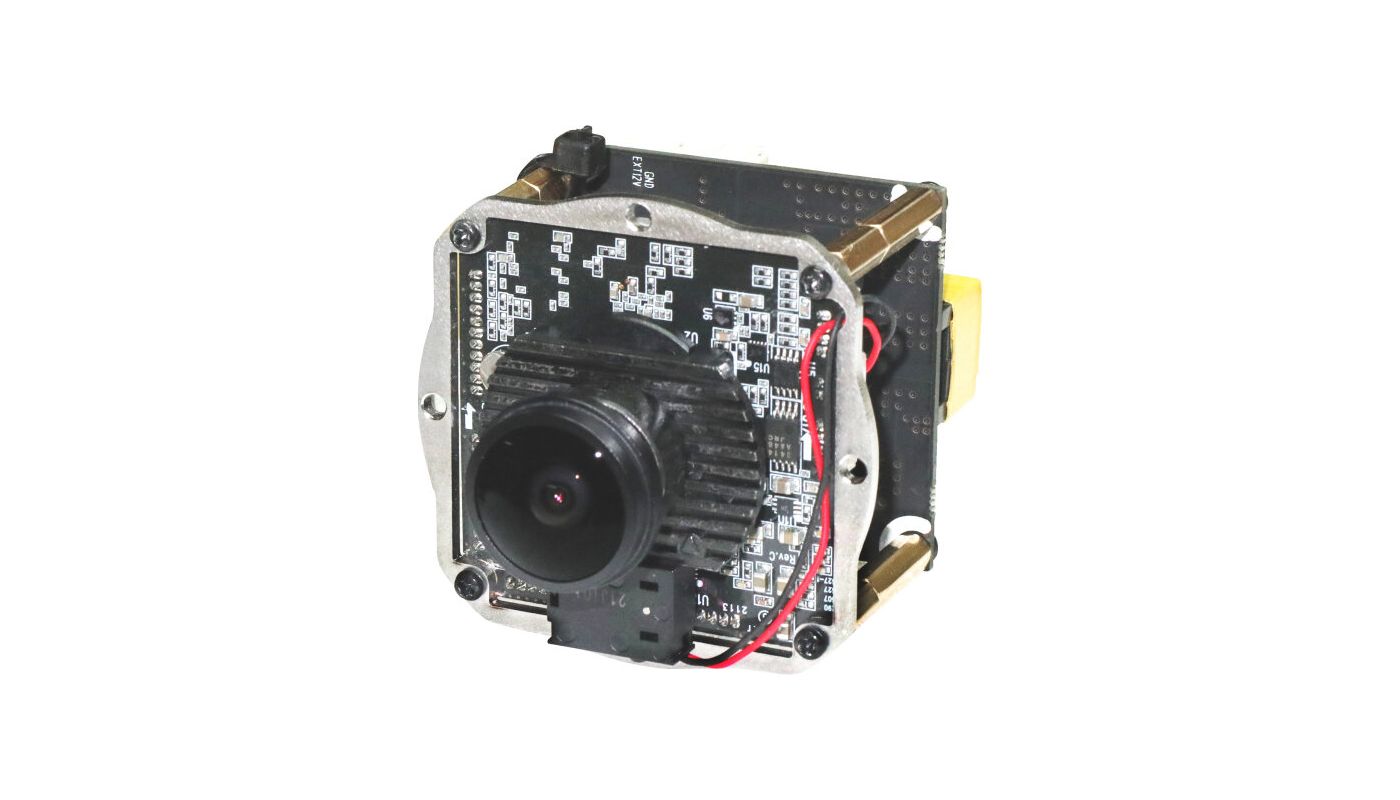

1/2.8" Network Module Camera, 3840x2160, Day&Night, WDR, 2.1mm, H.265, PoE, 12VDC
SKU
227047
Main Features
  • 1/2.8" Sony STARVIS CMOS Sensor
  • Excellent light sensitivity
  • Resolution max. 3840x2160 (4K)
  • Lens fixed focal length 2.1mm
  • DOL-WDR (120dB) by triple scan images at 30/25fps
  • Motion Detection, Privacy Zones, Slow Shutter
  • Browser independent (IE, Edge, Safari, Firefox, Chrome)
  • Smart Codec H.265 ROI (Region of Interest)
  • Supports ONVIF Profile S and Profile T
  • Operating temperature -20°C ~ +50°C
  • Dimensions 50x50x64mm
  • Power supply PoE or 12VDC
More Information
Brand eneo
Camera type Platine
Sensor size 1/2.8"
Resolution Standard 8 Megapixel
Sensitivity 0,03 Lux at F2,0, 40 IRE
System True Day&Night
Imager CMOS
Day&Night switch ICR
Low Speed Shutter yes
Digital Noise Reduction yes
Backlight Compensation BLC, HLC
Image resolution max. 3840x2160
Wide Dynamic Range (WDR) D-WDR
Motion Detector yes
Lens Type fixed focal length
Image Transmission Rate 30 fps
Video compression H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream)
Lens Type fixed focal length
llumination no
Focal Length 2,1 mm
Digital Zoom yes
MOD (Mininum Object Distance) 0,5 m
Vertical Angle of View 58°
Horizontal Angle of View 109°
Detect (25px/m) 74,2 m
Observe (62 px/m) 28,5 m
Recognize (125 px/m) 13,3 m
Identify (250 px/m) 5,2 m
Analysis functions Motion detection, Tampering Detection (TD)
Audio support no
Internal storage no
Remote configuration Browser
Ethernet interface 100Base-TX, 10Base-T
Supply voltage 12VDC, PoE
Alarm inputs no
Alarm outputs no
Serial interfaces Ethernet
Series eneo AN-Series
Dimensions (HxWxD) 63x50x50mm
Weight 112g
Housing without housing
Heater no
Camera Type Board Camera
Power consumption 7W
Blower yes
Mounting Einbaumodul
ONVIF ONVIF Profile S, ONVIF Profile T
Power over Ethernet IEEE 802.3af
Operating temperature -20°C ~ +50°C
Manufacturer order number 227047
