eneo ISM-62F0028W0A
SKU 232562No longer available

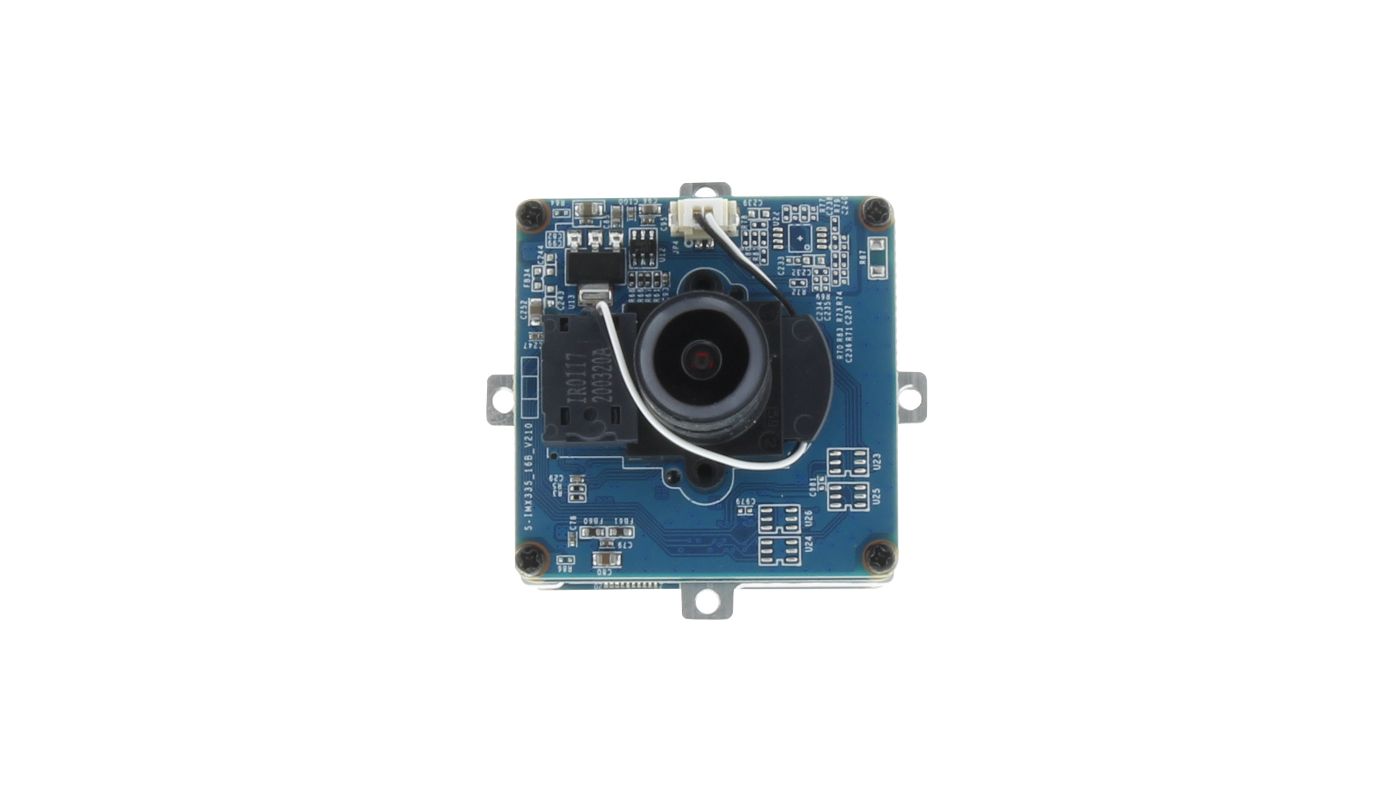

1/2,8" Network Board Camera 1920x1080, Day/Night, WDR, 2,8mm, H.265, PoE, 12VDC
discontinued
Specifications
- Brand
- eneo
- Manufacturer order number
- 232562
Camera
- Backlight compensation
- Yes
- Camera shape
- Printed circuit board
- Chip size
- 1/2,8"
- Day/night mode
- Automatic,Day,Night,Time
- Day/night switching
- Switchable IR Filter (ICR)
- Flickerless function
- Yes
- Low Speed Shutter
- No
- Photosensitivity
- 0,002 Lux bei F1,6
- Recording sensor
- CMOS
- Resolution standard
- 2 MP
- Signal-to-noise ratio
- 50 dB
- System
- True Day&Night
- White balance
- ATW,Manual
DORI
- Detect (125px/m)
- 8,6 m
- Identify (250px/m)
- 4,1 m
- Perceiving (25px/m)
- 44,9 m
- Watch (62px/m)
- 17,7 m
Lens
- Focal length
- 2,8 mm
- Horizontal angle of view
- 113°
- Lens Type
- Prime lens
- MOD (Minimum Object Distance)
- 0.5 m
- Vertical angle of view
- 61°
Video
- Data stream types
- Multi-Streaming
- Image transfer rate max.
- 30 fps
- Resolution (extended)
- 1920x1080 (16:9),1280x1024 (5:4),1024x768 (4:3),1280x720 (16:9),704x576 (4:3),704x480 (4:3),640x480 (4:3),640x360 (16:9),352x288 (4:3),352:240 (4:3)
- Video Compression
- H.264, H.265
Display
- Image resolution max.
- 1920x1080
Functions
- Alarm processing
- alarm out,FTP,E-Mail
- Analysis
- Motion Detection
- Audio
- 2 Way Audio
- Audio support
- Yes
- Browser
- Edge: MJPEG, Google Chrome: Java, Mozilla: MJPEG, MS Internet Explorer 11, Safari: MJPEG
- Digital Noise Reduction (DNR)
- Yes
- Menu languages
- English, German
- Motion detector
- Yes
- Multicast
- Yes
- Password
- Administrator and User
Interfaces / Inputs/ Outputs
- Alarm inputs
- 1
- Control Interfaces
- Ethernet
- External connections
- 12VDC power input,Alarm in/output,Audio in/output,RJ-45
General
- Camera Type
- Board Camera
- Dimensions (WxHxD) (extended)
- siehe Maßzeichnung
- Housing type
- without housing
- Lighting
- No
- Mounting type
- Built-in module
- ONVIF
- ONVIF Profile S
- Power consumption
- 3.6 W
- Power over Ethernet
- IEEE 802.3af
- Power supply
- 12VDC, Poe
- Temperature Range (Operating)
- -20°C ~ +50°C
- Text overlay
- available
- Weight
- 0.26 kg
- Wide Dynamic Range (WDR)
- WDR 120dB
Parts supplied
- Scope of delivery
- manual,Connection cable set
Notes
- Remark
- NDAA compliance under Section 889,To guarantee you an optimum user experience,we recommend that you only use components of the same brand in a system. If several brands are used in combination,eneo cannot guarantee functionality. If combined use is necess
Main Features
- 1/2.8" Sony STARVIS CMOS Sensor
- Excellent light sensitivity
- Resolution max. 1920x1080 (Full HD)
- Lens fixed focal length 2.8mm
- WDR (120dB), BLC, 3DNR
- Tripple Streaming (H.265, H.264, MJPEG)
- Browser independent (IE, Edge, Safari, Firefox, Chrome)
- Object classification (person, car, bike)
- Supports ONVIF Profile S
- Operating temperature -20°C +50°C
- Dimensions 50x50x59mm
- Power supply PoE or 12VDC
