ISM-52F0021WMA
SKU 235524
No longer available
Successor: ISM-52F0021WMB
1/2,8" Network Module Camera, 1920x1080, Day&Night,, WDR, 2,1mm, H.265, PoE, 12VDC
discontinued

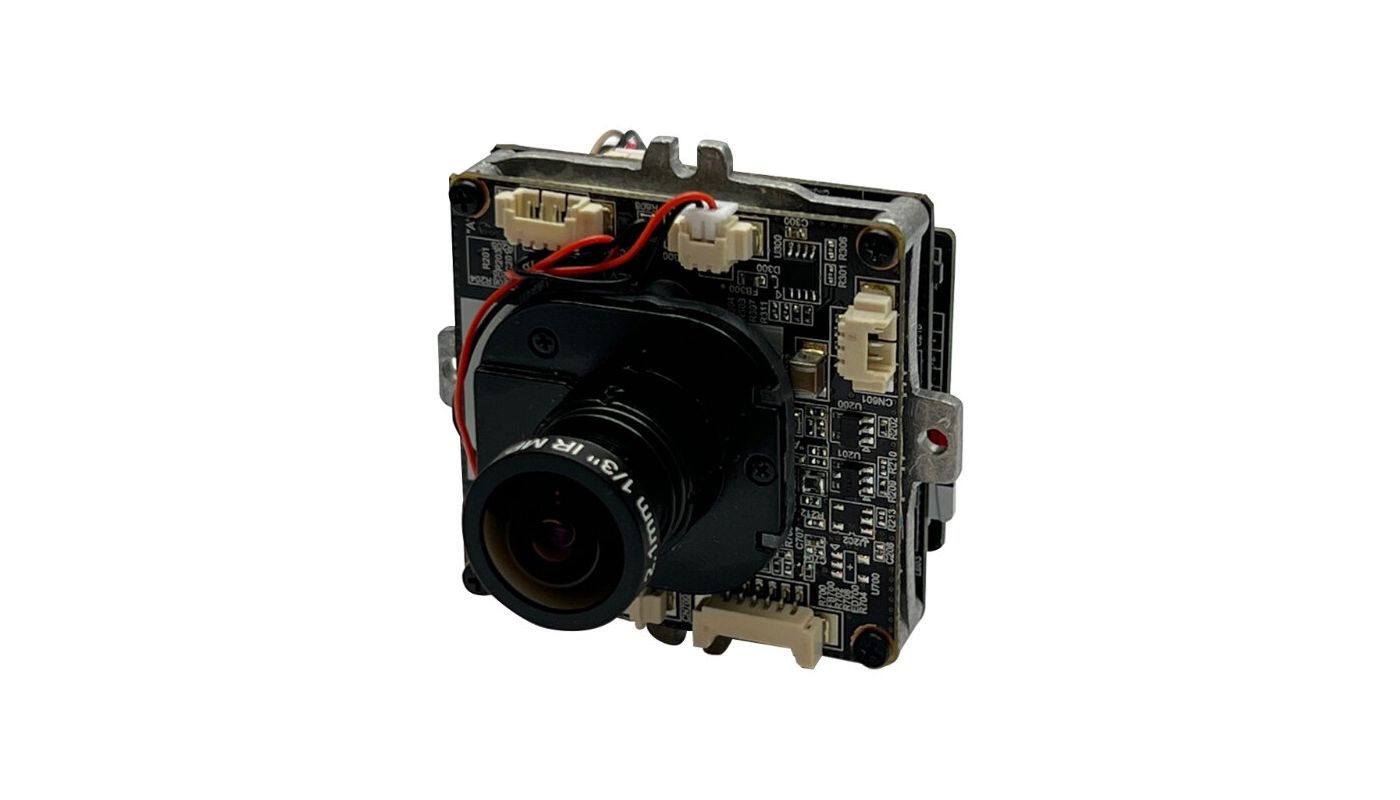

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 235524 |
|---|
| Alarm inputs | 1 |
|---|---|
| Alarm processing | recording internal storage (SD card),E-Mail,FTP,HTTP,HTTPS,alarm out |
| Audio | 2 Way Audio |
| Audio support | Yes |
| Backlight compensation | No |
| Brand | eneo |
| Browser | Edge: MJPEG setup limited, Google Chrome: MJPEG setup limited, Mozilla: MJPEG setup limited, Safari: MJPEG setup limited |
| Camera Type | Board Camera |
| Camera shape | Printed circuit board |
| Chip size | 1/2,8" |
| Control Interfaces | Ethernet |
| Data stream types | Quad Streaming |
| Day/night mode | Automatic,Day,Night |
| Day/night switching | Switchable IR Filter (ICR) |
| Detect (125px/m) | 2.9 m |
| Digital Noise Reduction (DNR) | Yes |
| Dimensions (WxHxD) (extended) | 50x50x50mm |
| External connections | Alarm output,Alarm input,Audio input/output,RJ-45,12VDC input (DC plug) |
| Flickerless function | Yes |
| Focal length | 2,1 mm |
| Heating | No |
| Horizontal angle of view | 140° |
| Housing type | without housing |
| Identify (250px/m) | 2.1 m |
| Image resolution max. | 1920x1080 |
| Image transfer rate max. | 30 fps |
| Integrated wall mount | No |
| Internal memory | microSD card slot |
| Lens Type | Prime lens |
| Lighting | no |
| Low Speed Shutter | No |
| MOD (Minimum Object Distance) | 0.3 m |
| Menu languages | Chinese, English, French, German, Japanese, Korean, Russian |
| Motion detector | No |
| Mounting type | Built-in module, Built-in module |
| Multicast | Yes |
| ONVIF | ONVIF Profile S, ONVIF Profile T |
| Password | Administrator and User |
| Perceiving (25px/m) | 36.5 m |
| Power over Ethernet | IEEE 802.3af |
| Power supply | 12VDC, Poe |
| Recording sensor | CMOS |
| Remark | NDAA compliance under Section 889,To guarantee you an optimum user experience,we recommend that you only use components of the same brand in a system. If several brands are used in combination,eneo cannot guarantee functionality. If combined use is necess |
| Resolution (extended) | 1920x1080 (16:9),1280x720 (16:9),704x480 (4:3),640x480 (4:3),352x288 (4:3) |
| Resolution standard | 2 MP |
| SDK | upon request |
| Scope of delivery | manual,Connection cable set |
| Signal-to-noise ratio | 50 dB |
| Sunshade canopy | No |
| System | True Day&Night |
| Temperature Range (Operating) | 0°C ~ +40°C |
| Text overlay | available |
| Vandalism-resistant | No |
| Video Compression | H.264, H.265, MJPEG |
| Watch (62px/m) | 14 m |
| White balance | Automatic |
| Wide Dynamic Range (WDR) | True WDR |
| Wiper | No |
| Zoom Factor (Digital) | 0 |
Main Features
- 1/2,8" 2.0 MP CMOS-Sensor
- Resolution max. 1920x1080 (Full HD)
- Board Camera 50x50x50mm
- Quad Streaming (H.265, H.264, MJPEG)
- True Day & Night (TDN)
- Noise Reduction (2D-/3D-DNR)
- WDR 120dB, Smart BLC
- Slot for Micro SD memory card
- ONVIF conformance, PoE IEEE802.af, Cross Web-Browsing
- Audio-, Alarm- In- and Outputs
- Privacy zones, password protection, Cross Web-Browsing
- NDAA compliant
