ISM-32F0036M00
SKU 234978
No longer available
Successor: ISM-42F0036MMB
1/2,8" Mini Network Modul, 1920x1080, Day&Night, 3DNR, 3,6mm, 12VDC, PoE, Indoor
discontinued

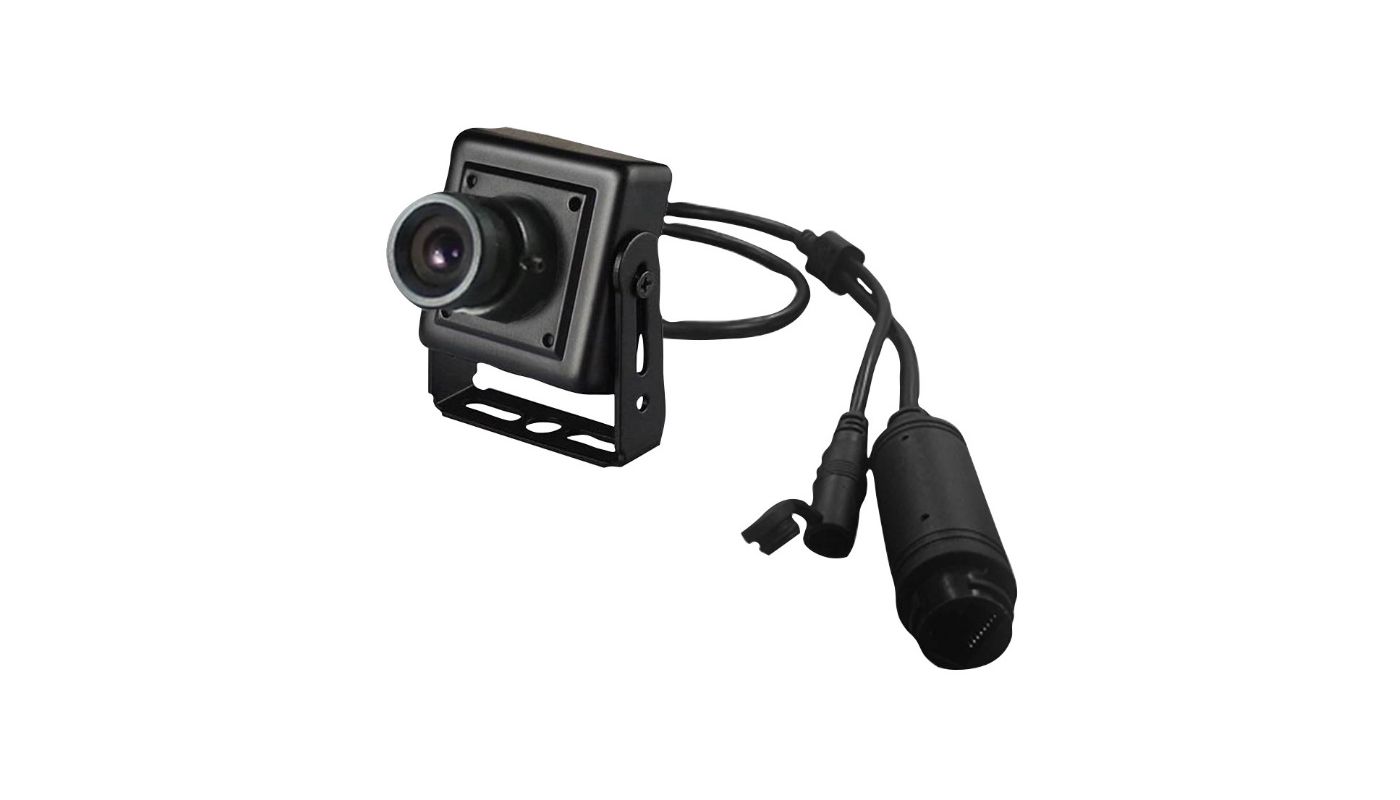

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 234978 |
|---|
| Alarm inputs | 0 |
|---|---|
| Alarm processing | FTP |
| Audio support | No |
| Backlight compensation | No |
| Brand | eneo |
| Browser | Edge: MJPEG, Mozilla: MJPEG, MS Internet Explorer from Vers. 9.0 or higher, Safari: MJPEG |
| Camera Type | Board Camera |
| Camera shape | Module |
| Certifications | IK08 |
| Chip size | 1/2,8" |
| Control Interfaces | Ethernet |
| Data stream types | 2x H.264,1x MJPEG simultan |
| Day/night mode | Automatic,Day,Night |
| Day/night switching | Electronic |
| Detect (125px/m) | 3.6 m |
| Digital Noise Reduction (DNR) | Yes |
| Dimensions (WxHxD) (extended) | 35x35mm |
| External connections | RJ-45,connection cable approx.15cm |
| Flickerless function | Yes |
| Focal length | 3,6 mm |
| Heating | Yes |
| Horizontal angle of view | 92° |
| Housing material | Metal |
| Housing type | Inside |
| Identify (250px/m) | 3.6 m |
| Image resolution max. | 1920x1080 |
| Image transfer rate max. | 30 fps |
| Integrated wall mount | No |
| Internal memory | microSD card slot |
| Lighting | no |
| Low Speed Shutter | No |
| Menu languages | English |
| Motion detector | No |
| Mounting type | Ceiling, Wall |
| Multicast | No |
| Password | Administrator and User |
| Perceiving (25px/m) | 56.6 m |
| Photosensitivity | 0,1 Lux bei F2,5,30 IRE |
| Power over Ethernet | IEEE 802.3af |
| Power supply | 12VDC |
| Recording sensor | CMOS |
| Remark | To guarantee you an optimum user experience,we recommend that you only use components of the same brand in a system. If several brands are used in combination,eneo cannot guarantee functionality. If combined use is necessary,we offer a compatibility check |
| Resolution (extended) | 1920x1080 (16:9),1280x720 (16:9),800x600 (4:3),704x480 (4:3),640x480 (4:3),320x240 (4:3) |
| Resolution standard | 0 MP |
| Scope of delivery | manual,bag of screws,mounting bracket |
| Signal-to-noise ratio | 50 dB |
| Sunshade canopy | No |
| System | Electronic Day&Night |
| Temperature Range (Operating) | -10°C ~ +50°C |
| Text overlay | available |
| Vandalism-resistant | No |
| Video Compression | H.264, M-JPEG |
| Watch (62px/m) | 22 m |
| White balance | Indoor,Outdoor,User defined,Push |
| Wide Dynamic Range (WDR) | WDR 100dB |
| Wiper | No |
| Zoom Factor (Digital) | 0 |
Main Features
- Sony STARVIS 2MP Image Sensor
- Resolution max. 1920x1080 (Full HD)
- Video Compression Format: H.264/MJPEG
- Motion Detection
- Built in SD micro slot
- Low Speed Shutter
- 2DNR, 3DNR and WDR support
- PoE Cable
- Lens 3.6mm (further lenses upon request)
- Power Supply 12VDC (1.8W) or PoE (IEEE802.3af)
- Operation Temperature -10°C - +50°C
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Product image in a high resolution
-
Declaration of conformity (german and english)
