phased-out

ISD-59P0010P0A

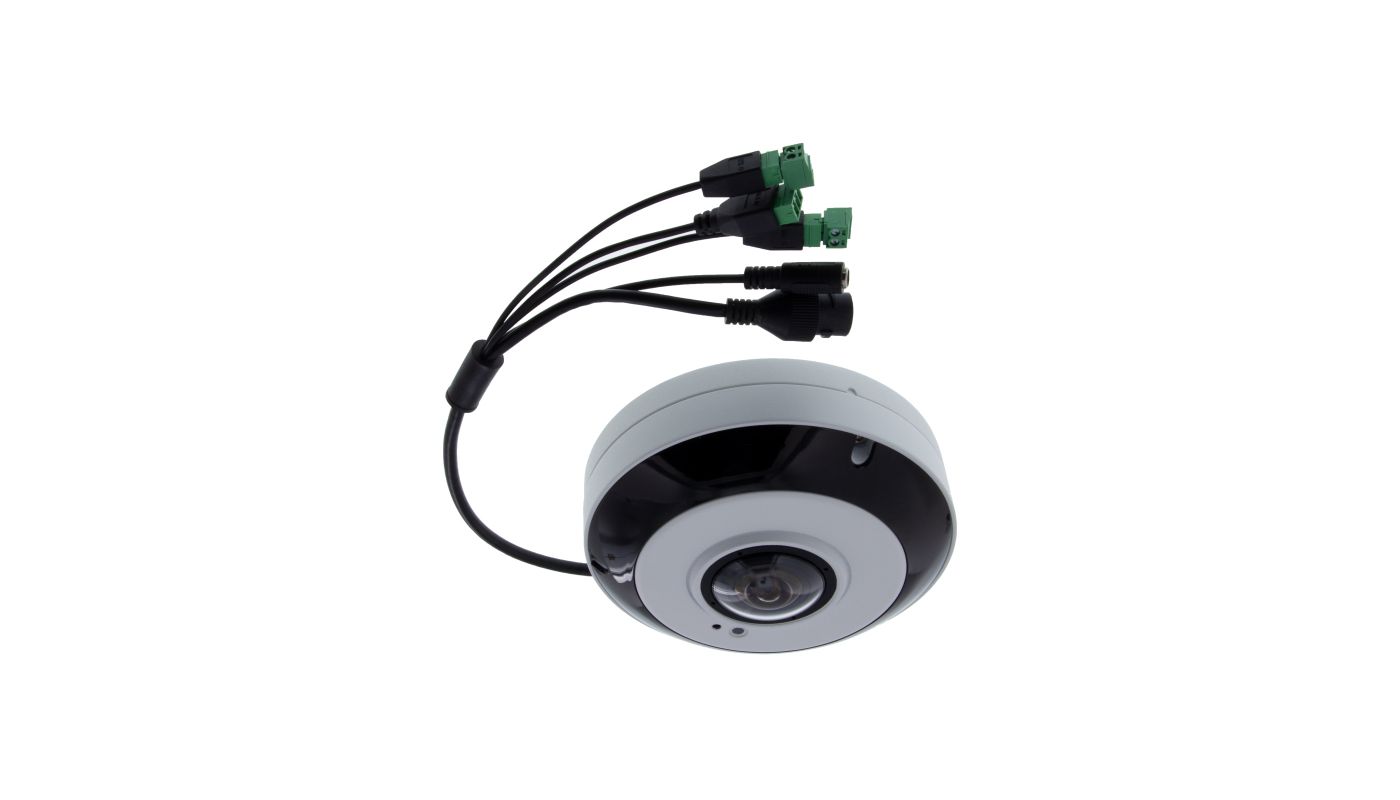

1/1,7" Network Dome, fixed, Day/Night, 4000x3000, H.265, 1,29mm, 360°, infrared, IP66
SKU
220196
Main Features
  • 1/1.7” Sony STARVIS CMOS-Sensor
  • 1.29mm fixed lens FishEye camera
  • 360° Panorama-, Corridor-, Quad-, Panomorph-View, ceiling or wall
  • Integration in eneo Center Software
  • True Day & Night
  • Resolution max. 4000x3000@20fps
  • Quad Stream (H.264/H.265x3, MJPEGx1)
  • Cross Web-Browsing
  • True-WDR (Digital Wide Dynamic Range)
  • Framerate increase on motion detection (Smart Codec)
  • IR-LED Illumination integrated
  • Compact design for indoor application
More Information
Brand eneo
Camera type Dome
Sensor size 1/1,7"
Resolution Standard 8 Megapixel
Sensitivity 0,3 Lux at F2,8
System True Day&Night
Imager CMOS
Day&Night switch ICR
Low Speed Shutter yes
Digital Noise Reduction yes
Backlight Compensation BLC
Image resolution max. 4000x3000
Wide Dynamic Range (WDR) WDR 120dB
Motion Detector yes
Lens Type fixed focal length
Image Transmission Rate 30 fps
Iris Control DC
Video compression H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Lens Type fixed focal length
llumination Infrared
Focal Length 1,29 mm
Digital Zoom yes
MOD (Mininum Object Distance) 0,1 m
Horizontal Angle of View 360°
Detect (25px/m) 60 m
Observe (62 px/m) 25 m
Recognize (125 px/m) 11 m
Identify (250 px/m) 5 m
Analysis functions Defog, Intrusion, Loitering detection, Motion analysis, Motion detection, Person recognition, Tampering protection, Trip wire plus object counting
Audio support yes
Audio 2 Way Audio
Internal storage microSD card, microSDXC card
Remote configuration Browser
Ethernet interface 100Base-TX, 10Base-T
Supply voltage 12VDC, PoE
Alarm inputs 1
Alarm outputs 1
Serial interfaces Ethernet
Series eneo SN-Series
Dimensions (HxWxD) 58,7x151,4mm
Weight 750g
Illumination range approx. 10m
Color (housing) white
Hosuing material Metal
Heater no
Camera Type Fisheye Kamera
Power consumption 12.5W @ PoE,, 15W @ VDC12V
Blower no
Mounting Ceiling mount, Wall mount
ONVIF ONVIF Profile S, ONVIF Profile T
Power over Ethernet IEEE 802.3af
Protection rating IP66
Operating temperature -20°C ~ +50°C
Vandal proof yes
Certifications IK10
Manufacturer order number 220196

to top
to top
  • Marketing Infos PDF RTSP-Konfiguration_eneo.pdf RTSP Streams Konfiguration für eneo Kameras und Rekorder 220.3 kB
  • Tools HTML eneo_Site_Manager.html eneoSite ManagerTool 914 B
  • Firmware HTML eneo_Product_ Firmware.html Produkt Firmware_CAD Files 835 B
  • Manufacturer data sheet PDF 220196_en_sup.pdf Original product information from the manufacturer 213.4 kB
  • Marketing Infos PDF OPEN SOURCE SOFTWARE LICENSE INFORMATION.pdf Open Source Software License Information 72.2 kB
  • Manufacturer datasheet PDF Original product information from the manufacturer
  • Data sheet PDF 220196_isd-59p0010p0a.pdf Data sheet with specifications generated live from the product database <350KB
  • Specifications text DOC 220196_isd-59p0010p0a.doc Technical data as Word document, generated live from the product database <50KB
to top

Description
