ISD-55P0010P0A
SKU 217871No longer available

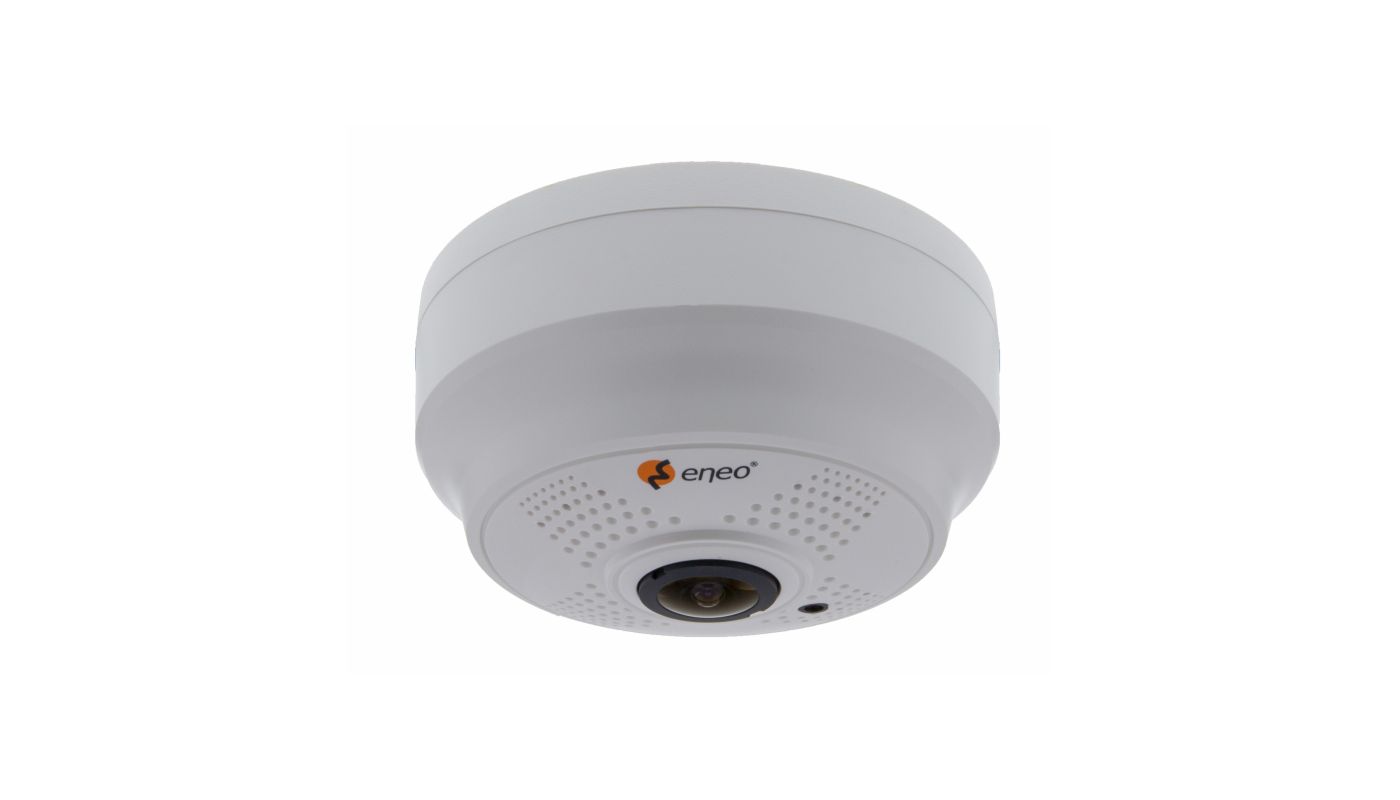

1/1.8" Network Dome, Fixed, Day&Night, 2592x1944, 360°, H.264, 1.05mm, Indoor
discontinued
Specifications
- Manufacturer order number
- 217871
- Brand
- eneo
- Series
- eneo SN-Serie
Camera
- Camera shape
- Minsters
- Chip size
- 1/1,8"
- Resolution standard
- 5 MP
- Recording sensor
- CMOS
- Photosensitivity
- 0,3 Lux bei F2,8
- System
- True Day&Night
- Day/night switching
- Switchable IR Filter (ICR)
- Day/night mode
- Automatic,Day,Night
- White balance
- Automatic,fluorescent,Outdoor,Manual,Light bulb
Video
- Resolution (extended)
- 2592x1944 (4:3),2048x1536 (4:3),1944x1944,1440x1440,1280x1024 (5:4),1280x960 (4:3),1024x1024,1024x768 (4:3),720x720,704x576 (4:3),640x480 (4:3)
- Video Compression
- H.264, M-JPEG
- Data stream types
- 2x H.264,1x MJPEG simultan
- Image transfer rate max.
- 15 fps
Lens
- Lens Type
- Prime lens
- Focal length
- 1,05 mm
- Zoom Factor (Digital)
- 0
- Horizontal angle of view
- 360°
Display
- Image resolution max.
- 2592x1944
DORI
- Perceiving (25px/m)
- 36 m
- Watch (62px/m)
- 14 m
- Detect (125px/m)
- 6 m
- Identify (250px/m)
- 4 m
Functions
- Multicast
- Yes
- Alarm processing
- recording internal storage (SD card),E-Mail,FTP,Boost,HTTP,TCP,UDP,HTTPS,XML,alarm out
- Audio support
- Yes
- Audio
- 2 Way Audio
- Internal memory
- microSDHC card, microSDXC card
- Menu languages
- Chinese, English, French, German, Japanese, Korean, Russian
- Browser
- Edge: MJPEG setup limited, Google Chrome: MJPEG setup limited, Mozilla: MJPEG setup limited, Safari: MJPEG setup limited
- Digital Noise Reduction (DNR)
- Yes
Interfaces / Inputs/ Outputs
- External connections
- Alarm output,Alarm input,Audio input/output,RJ-45,12VDC input (DC plug),connection cable approx.40cm
- Alarm inputs
- 1
- Control Interfaces
- Ethernet
General
- Wide Dynamic Range (WDR)
- D-WDR
- Lighting
- no
- Dimensions (WxHxD) (extended)
- 63,8x119mm
- Housing type
- Inside
- Housing material
- Plastic
- Heating
- No
- Camera Type
- Fisheye Camera
- Mounting type
- Ceiling, Wall
- ONVIF
- ONVIF Profile S
- Power over Ethernet
- IEEE 802.3af
- SDK
- upon request
- Power supply
- 12VDC, Poe
- Temperature Range (Operating)
- -10°C ~ +50°C
- Text overlay
- available
Parts supplied
- Scope of delivery
- manual,bag of screws
Notes
- Remark
- To guarantee you an optimum user experience,we recommend that you only use components of the same brand in a system. If several brands are used in combination,eneo cannot guarantee functionality. If combined use is necessary,we offer a compatibility check
Main Features
- 1/1.8" Sony STARVIS CMOS-Sensor
- 1.05mm fixed lens FishEye camera
- 360° Panorama view
- Integration in eneo Center Software
- True Day&Night
- Resolution max. 2048x1536@15fps
- Compression H.264/MJPEG, Web Casting
- Cross Web-Browsing
- D-WDR (Digital Wide Dynamic Range)
- Framerate increase on motion detection
- OpenVPN support
- Compact design for indoor application
