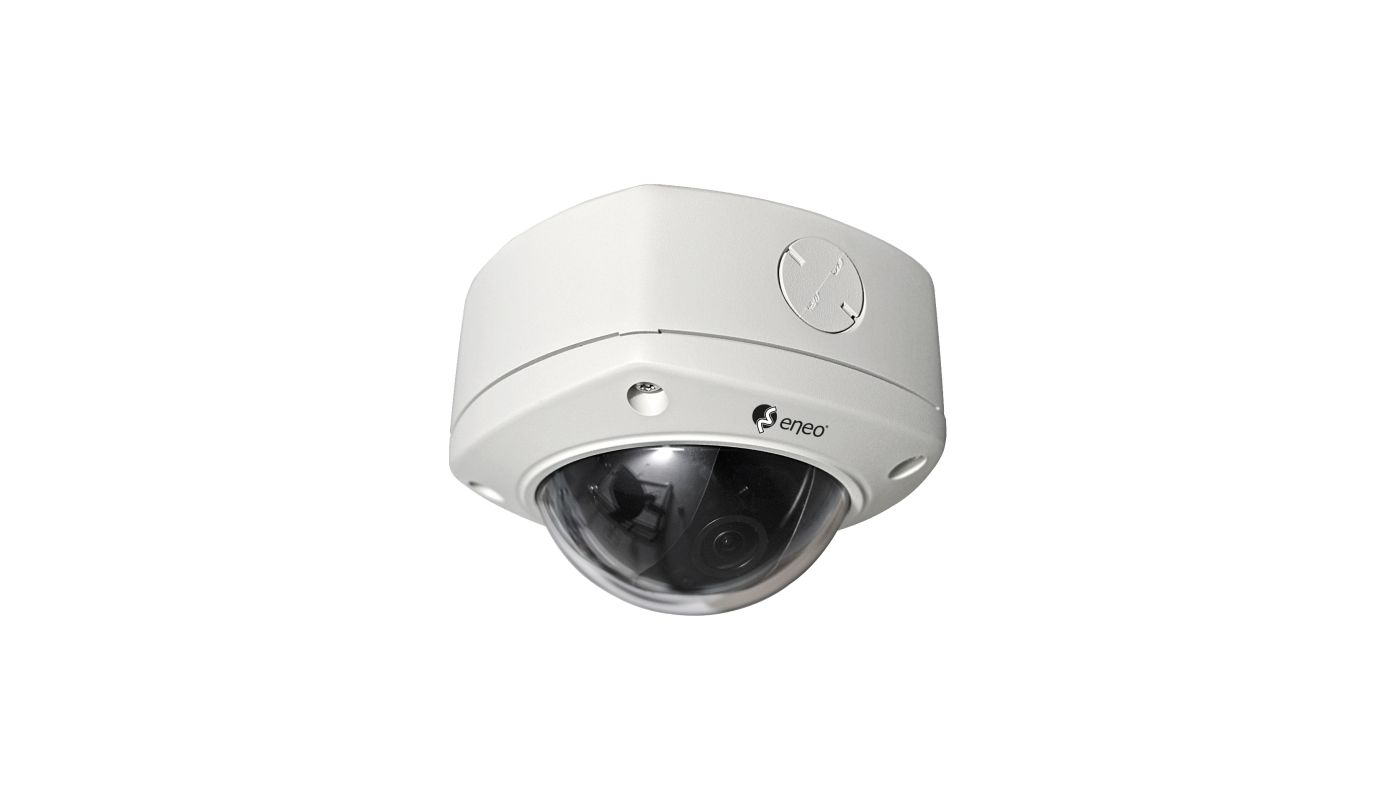

ISD-52F0023WSA

SKU 227007
1/2,8" Netzwork Dome, WDR, 1920x1080, Day&Night, 2,3mm H.265, PoE, 12VDC, Surface
Data sheet

Camera not included

Specifications

Manufacturer order number 227007
Series eneo SN-Serie
Alarm inputs 1
Alarm processing recording internal storage (SD card),E-Mail,FTP,Boost,HTTP,TCP,UDP,HTTPS,XML,alarm out
Audio 2 Way Audio
Audio support Yes
Backlight compensation No
Brand eneo
Browser Edge: MJPEG setup limited, Google Chrome: MJPEG setup limited, Mozilla: MJPEG setup limited, Safari: MJPEG setup limited
Camera shape Minsters
Certifications IK10
Chip size 1/2,8"
Color (dome) clear
Data stream types Quad Streaming
Day/night mode Automatic,Day,Night
Day/night switching Switchable IR Filter (ICR)
Detect (125px/m) 4 m
Digital Noise Reduction (DNR) Yes
Dimensions (WxHxD) (extended) 91,5x120mm
External connections Alarm output,Alarm input,Audio input/output,RJ-45,12VDC input (DC plug),connection cable approx.55cm
Flickerless function Yes
Focal length 2,3 mm
Heating Yes
Horizontal angle of view 135°
Housing material Aluminium
Housing type Outside
Identify (250px/m) 4 m
Image resolution max. 1920x1080
Image transfer rate max. 30 fps
Integrated wall mount No
Internal memory microSDHC card, microSDXC card
Lens Type Prime lens
Lighting no
Low Speed Shutter No
MOD (Minimum Object Distance) 0.3 m
Menu languages Chinese, English, French, German, Japanese, Korean, Russian
Motion detector No
Mounting type Ceiling, Wall
Multicast Yes
ONVIF ONVIF Profile S, ONVIF Profile T
Password Administrator and User
Perceiving (25px/m) 35 m
Photosensitivity 0,08 Lux bei F2,2,40 IRE
Power over Ethernet IEEE 802.3af
Power supply 12VDC, Poe
Protection IP66
Recording sensor CMOS
Remark To guarantee you an optimum user experience,we recommend that you only use components of the same brand in a system. If several brands are used in combination,eneo cannot guarantee functionality. If combined use is necessary,we offer a compatibility check
Resolution (extended) 1920x1080 (16:9),1440x1080 (4:3),1280x1024 (5:4),1024x768 (4:3),1280x720 (16:9),800x600 (4:3),800x480 (16:9),704x576 (4:3),704x480 (4:3),640x480 (4:3),400x240 (4:3),352x288 (4:3),
Resolution standard 2 MP
SDK upon request
Scope of delivery manual,bag of screws
Signal-to-noise ratio 48 dB
Sunshade canopy No
System True Day&Night
Temperature Range (Operating) -20°C ~ +50°C
Text overlay available
Vandalism-resistant Yes
Video Compression H.264, H.264+, H.265, H.265+, M-JPEG
Watch (62px/m) 14 m
White balance Automatic,Manual
Wide Dynamic Range (WDR) WDR 120dB
Wiper No
Zoom Factor (Digital) 0

Main Features

  • 1 / 2.8 "2.0 MP Sony STARVIS CMOS sensor
  • Resolution max. 1920x1080 (Full HD)
  • Fixed focal length 2.3mm, day / night lens (HFoV 135 °!)
  • Quad Streaming (H.265, H.264, MJPEG)
  • Intelligent self-learning video analysis (IntelliVision inside)
  • WDR 120dB, Smart BLC
  • Slot for micro SD memory card
  • ONVIF compliance, PoE IEEE802.af, 12VDC
  • Audio, alarm inputs and outputs
  • Privacy zones, password protection, browser-independent
  • Increasing the refresh rate when moving
  • Suitable for indoor and outdoor use IP66
