IPP-72A0023MIA
SKU 220201No longer available

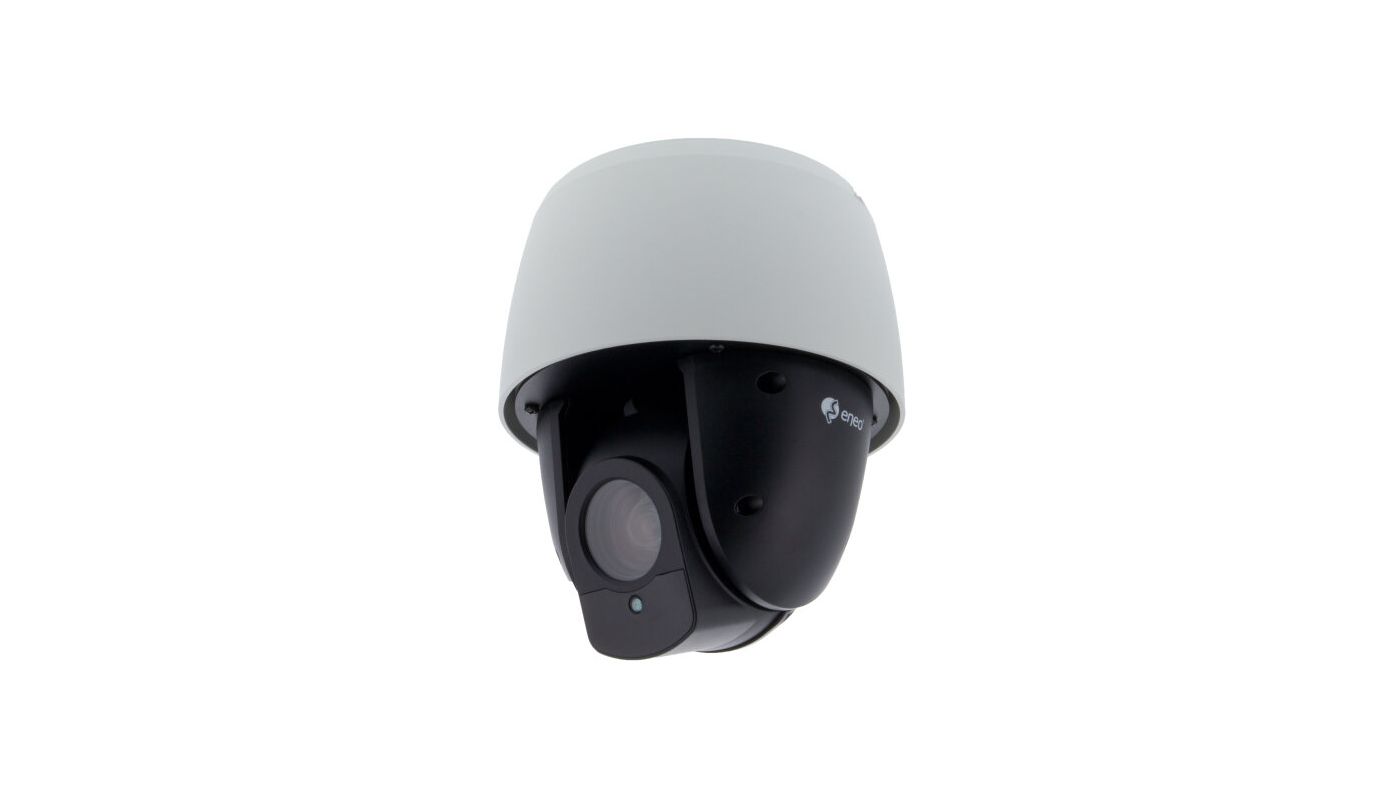

1/2,8" Network Dome, PTZ, Day&Night, 23x, H.265, WDR, 1920x1080, Infrared, IP66
discontinued
Specifications
- Manufacturer order number
- 220201
- Brand
- eneo
- Series
- eneo SN-Serie
Camera
- Camera shape
- PTZ
- Chip size
- 1/2,8"
- Resolution standard
- 2 MP
- Recording sensor
- CMOS
- Photosensitivity
- 0,35 Lux bei F1,6,50 IRE
- System
- True Day&Night
- Day/night switching
- Switchable IR Filter (ICR)
- Day/night mode
- Day,Night,Automatic
- White balance
- Automatic,Manual
- Signal-to-noise ratio
- 50 dB
Video
- Resolution (extended)
- 1920x1080 (16:9),1440x1080 (4:3),1280x1024 (5:4),1024x768 (4:3),1280x720 (16:9),800x600 (4:3),800x480 (16:9),720x576 (4:3),720x480 (4:3),704x576 (4:3),704x480 (4:3),640x480 (4:3),
- Video Compression
- H.264, H.264+, H.265, H.265+, M-JPEG
- Data stream types
- Quad Streaming
- Image transfer rate max.
- 30 fps
Lens
- Lens Type
- Auto Focus Zoom
- Focal length
- 5 - 117 mm
- Zoom Factor (Digital)
- 0
- MOD (Minimum Object Distance)
- 3 m
- Horizontal angle of view
- 56,6 - 3°
Display
- Image resolution max.
- 1920x1080
DORI
- Perceiving (25px/m)
- 71 m
- Watch (62px/m)
- 27 m
- Detect (125px/m)
- 7 m
- Identify (250px/m)
- 7 m
Functions
- Multicast
- Yes
- Alarm processing
- recording internal storage (SD card),E-Mail,FTP,Boost,HTTP,TCP,UDP,HTTPS,XML,alarm out
- Home Position
- Selectable, Tour, Preset, Pattern
- Tours
- 8 selectable tours
- Turning range
- 360 °
- Speed (manual control)
- 380 °/sec
- Speed (Target Approach)
- 380 °/sec
- Vertical tilt range
- -10° ~ +90°
- Audio support
- Yes
- Audio
- 2 Way Audio
- Password
- Administrator and User
- Internal memory
- microSDHC card, microSDXC card
- Menu languages
- Chinese, English, French, German, Japanese, Korean, Russian
- Browser
- Edge: MJPEG setup limited, Google Chrome: MJPEG setup limited, Mozilla: MJPEG setup limited, Safari: MJPEG setup limited
- Digital Noise Reduction (DNR)
- Yes
Interfaces / Inputs/ Outputs
- External connections
- Alarm output,Alarm input,Audio input/output,RJ-45,12VDC input (DC plug),connection cable approx.40cm
- Alarm inputs
- 4
- Control Interfaces
- Ethernet
General
- Wide Dynamic Range (WDR)
- WDR 120dB
- Lighting
- Infrared
- Zoomfactor (optical)
- 23
- Dimensions (WxHxD) (extended)
- 208,3x182,4mm
- Housing type
- Outside
- Housing material
- Aluminium
- Power consumption
- 22 W
- Mounting type
- Ceiling, Wall
- ONVIF
- ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3at
- Protection
- IP66
- SDK
- upon request
- Power supply
- 12VDC, Poe
- Temperature Range (Operating)
- -20°C ~ +50°C
- Text overlay
- available
Parts supplied
- Scope of delivery
- manual,plug set,bag of screws
Notes
- Remark
- To guarantee you an optimum user experience,we recommend that you only use components of the same brand in a system. If several brands are used in combination,eneo cannot guarantee functionality. If combined use is necessary,we offer a compatibility check
Main Features
- 1/2.8" Sony STARVIS CMOS-Sensor
- Full HD 1920x1080 Pixel, 25/30fps
- 23x AF Zoom, 5~117mm
- Quad Stream H.265, H.264, MJPEG (Smart Codec)
- Real time WDR (Wide Dynamic Range) 25/30fps
- Intelligent self learning video analysis
- Digital Noise Reduction (2DNR/3DNR)
- Audio support including audio alarm
- Infrared illumination up to 60m
- Alarm in- and outputs, micro SD-card
- Power supply 12VDC or HPoE
- Support ONVIF Profile S und Profile T
