IPP-62A0020M0B

SKU 222184

No longer available

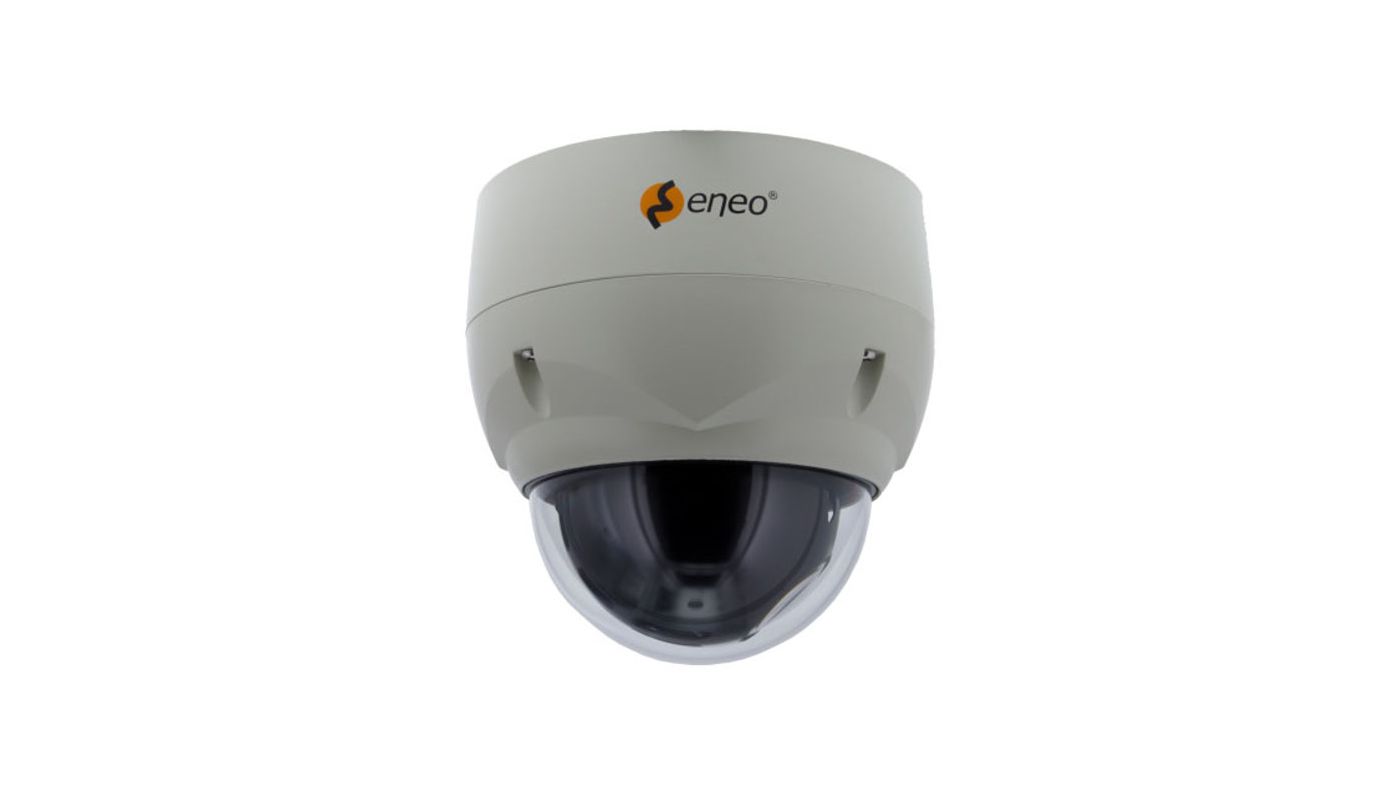

1/2,8" Network Dome, PTZ, Day&Night, 20x, H.265, WDR, 1920x1080, PoE, IP66
Data sheet

Specifications

Manufacturer order number 222184
Series eneo SN-Serie
Alarm inputs 4
Alarm processing recording internal storage (SD card),E-Mail,FTP,Boost,HTTP,TCP,UDP,HTTPS,XML,alarm out
Audio 2 Way Audio
Audio support Yes
Backlight compensation No
Brand eneo
Browser Edge: MJPEG setup limited, Google Chrome: MJPEG setup limited, Mozilla: MJPEG setup limited, Safari: MJPEG setup limited
Camera shape PTZ
Certifications IK10
Chip size 1/2,8"
Color (dome) clear
Control Interfaces Ethernet
Data stream types Quad Streaming
Day/night mode Day,Night,Automatic
Day/night switching Switchable IR Filter (ICR)
Detect (125px/m) 7 m
Digital Noise Reduction (DNR) Yes
Dimensions (WxHxD) (extended) 150x154mm
External connections Alarm output,Alarm input,Audio in/output,RJ-45,voltage input,connection cable approx.25cm
Flickerless function Yes
Focal length 4,7 - 94 mm
Heating Yes
Home Position Selectable, Tour, Preset, Pattern
Horizontal angle of view 55,5 - 3°
Housing material Aluminium
Housing type Inside, Outside
Identify (250px/m) 7 m
Image resolution max. 1920x1080
Image transfer rate max. 30 fps
Integrated wall mount No
Internal memory microSDHC card, microSDXC card
Lens Type Auto Focus Zoom
Lighting no
Low Speed Shutter No
MOD (Minimum Object Distance) 1 m
Menu languages Chinese, English, French, German, Japanese, Korean, Russian
Motion detector No
Mounting type Ceiling, Wall
Multicast Yes
ONVIF ONVIF Profile S, ONVIF Profile T
Password Administrator and User
Perceiving (25px/m) 70 m
Photosensitivity 0,2 Lux bei F1,6,50 IRE
Power over Ethernet IEEE 802.3af
Power supply 12VDC, 24VAC, 24VAC, 24VAC, Poe
Protection IP66
Recording sensor CMOS
Remark "To guarantee you an optimum user experience,we recommend that you only use components of the same brand in a system. If several brands are used in combination,eneo cannot guarantee functionality. If combined use is necessary,we offer a compatibility chec
Resolution (extended) 1920x1080 (16:9),1440x1080 (4:3),1280x1024 (5:4),1024x768 (4:3),1280x720 (16:9),800x600 (4:3),800x480 (16:9),704x576 (4:3),704x480 (4:3),640x480 (4:3),400x240 (4:3),352x288 (4:3),
Resolution standard 0 MP
SDK upon request
Scope of delivery manual,plug set,bag of screws
Signal-to-noise ratio 50 dB
Speed (Target Approach) 380 °/sec
Speed (manual control) 380 °/sec
Sunshade canopy No
System True Day&Night
Temperature Range (Operating) -20°C ~ +50°C
Text overlay available
Tours 8 selectable tours, 8 selectable tours, 8 selectable tours
Turning range 360 °
Vandalism-resistant Yes
Vertical tilt range -10° ~ 190°
Video Compression H.264, H.264+, H.265, H.265+, M-JPEG
Watch (62px/m) 28 m
White balance Automatic,Manual
Wide Dynamic Range (WDR) WDR 120dB
Wiper No
Zoom Factor (Digital) 16
Zoomfactor (optical) 20

Main Features

  • 1/2.8" Sony STARVIS CMOS-Sensor
  • Full HD 1920x1080 Pixel, 25/30fps
  • 23x AF Zoom, 4.7~94mm
  • Quad Stream H.265, H.264, MJPEG (Smart Codec)
  • Real time WDR (Wide Dynamic Range) 25/30fps
  • Intelligent motion detector
  • Digital Noise Reduction (2DNR/3DNR)
  • Audio support including audio alarm
  • Alarm in- and outputs, micro SD-card slot
  • Power supply 12VDC, 24VAC or PoE
  • IK10 IK shock resistance degree
  • Support ONVIF Profile S und Profile T
