eneo IPD-78M3611M0A

SKU 220930

No longer available

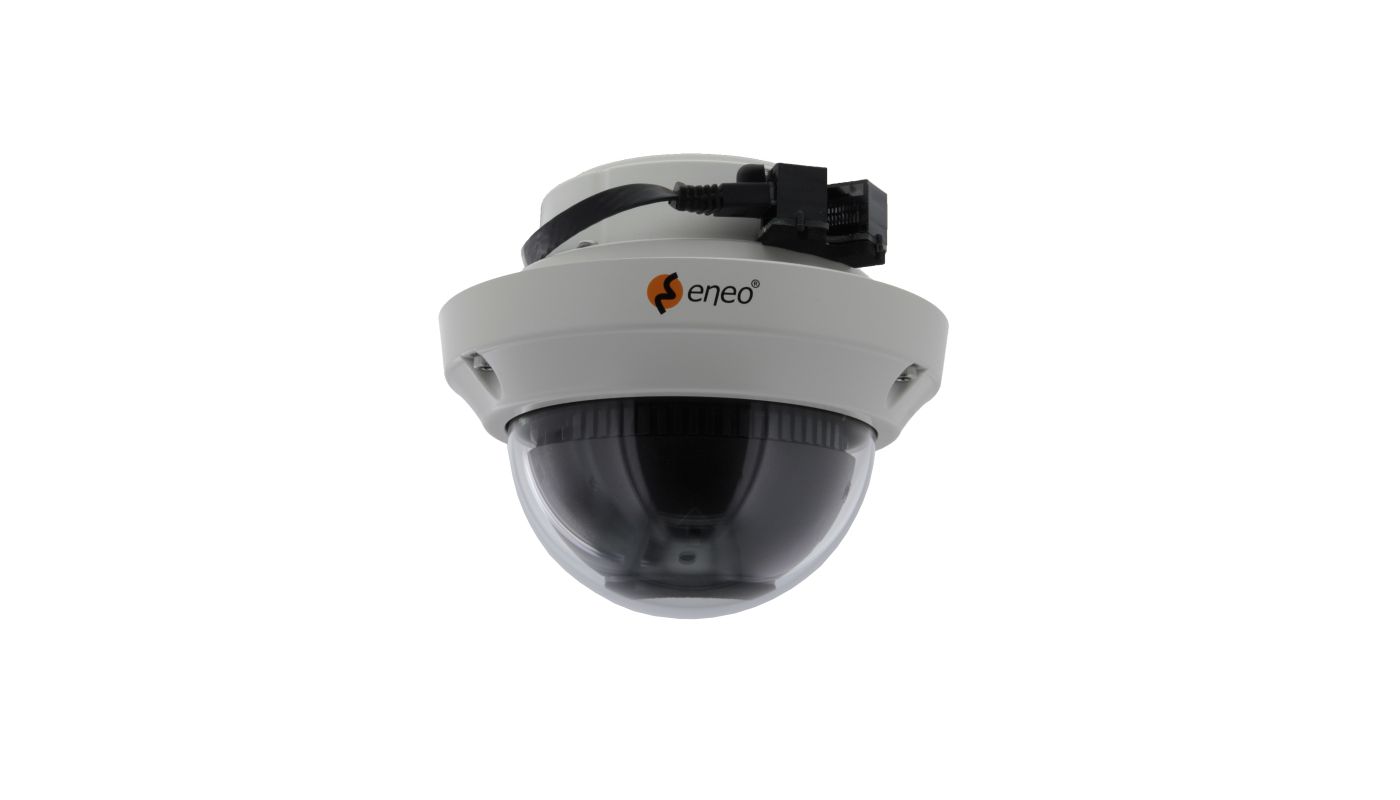

1/2,5" Network Dome, Fix, 3840x2160, Day&Night, DOL-WDR 3,6-11mm, Infrared, IP67
Data sheet

Specifications

Brand
eneo
Manufacturer order number
220930
Series
eneo LN-Serie

Camera

Backlight compensation
Yes
Camera shape
Minsters
Chip size
1/2,5"
Day/night mode
Automatic,Day,Night,night-color mode,extern (Sensor)
Day/night switching
Switchable IR Filter (ICR)
Flickerless function
Yes
Low Speed Shutter
Yes
Photosensitivity
0,2 Lux bei F1,5,40 IRE
Recording sensor
CMOS
Resolution standard
8 MP
Signal-to-noise ratio
50 dB
System
True Day&Night
White balance
ATW-Indoor,ATW-Outdoor,Manual,Fluorescent light,Light bulb,Shade,Clear Sky,Flammes

DORI

Detect (125px/m)
17,7 - 42,6 m
Identify (250px/m)
8,6 - 21,2 m
Perceiving (25px/m)
91,7 - 214 m
Watch (62px/m)
36,6 - 86,5 m

Lens

Focal length
3,6 - 11 mm
Horizontal angle of view
84 - 40°
Lens Type
Varifocal (motorized)
MOD (Minimum Object Distance)
0.5 m
Vertical angle of view
46 - 21°
Zoom Factor (Digital)
0
Zoomfactor (optical)
3

Video

Data stream types
Multi-Streaming
Image transfer rate max.
30 fps
Resolution (extended)
3840x2160 (16:9),2592x1520 (16:9),1920x1080 (16:9),1600x900 (16:9),1280x720 (16:9),960x540 (16:9),640x360 (16:9),320x180 (16:9)
Video Compression
H.264, H.264+, H.265, H.265+, M-JPEG

Display

Image resolution max.
3840x2160

Functions

Alarm processing
recording internal storage (SD card),E-Mail,HTTP,FTP,Boost,TCP,UDP,Onvif Event Mapping,alarm out
Analysis
Motion Detection
Audio
2 Way Audio
Audio support
Yes
Browser
Edge: MJPEG, Mozilla: MJPEG, Safari: MJPEG
Digital Noise Reduction (DNR)
Yes
Internal memory
microSDHC card, microSDXC card
Menu languages
English, French, German, Korean
Motion detector
Yes
Multicast
Yes
Password
Administrator and User
Turning range
173 °
Vertical tilt range
65 °(25 ~ 90°)

Interfaces / Inputs/ Outputs

Alarm inputs
1
Control Interfaces
Ethernet
External connections
micro SD card slot,Alarm in/output,RJ-45,Combi connector,connection cable approx.15cm

General

Certifications
IK10
Color (dome)
clear
Color (Housing)
Pantone Cool Gray 1C
Dimensions (WxHxD) (extended)
119x140mm
Heating
No
Housing material
Aluminium
Housing type
Inside, Outside
Lighting
Infrared
Mounting type
Ceiling, Wall
ONVIF
ONVIF Profile S, ONVIF Profile T
Power consumption
10.8 W
Power over Ethernet
IEEE 802.3af
Power supply
12VDC, 24VAC, Poe
Protection
IP67
SDK
upon request
Temperature Range (Operating)
-50°C ~ +50°C
Text overlay
available
Vandalism-resistant
Yes
Weight
1 kg
Wide Dynamic Range (WDR)
D-WDR

Parts supplied

Scope of delivery
manual,bag of screws

Main Features

  • 1/2.5" Sony STARVIS CMOS sensor
  • Resolution max. 3840x2160, 8 Megapixel
  • Motorised varifocal lens 3,6~11mm
  • DOL-WDR (120dB) by triple scan images at 30/25fps
  • VCA video analysis, ONVIF event mapping
  • Browser independent (IE, Edge, Safari, Firefox, Chrome)
  • Smart Codec H.265 ROI (Region of interest)
  • Quad Smart Streaming: H.265(+), H.264(+), MJPEG
  • Slot for Micro SD Card, HTML5 replay, Audio, Alarm
  • Power supply PoE, 12VDC or 24VAC
  • For outdoor use IP66, vandal proofed IK10
  • Supports ONVIF Profile S and Profile T
