INP-75A0033MIA
SKU 234751This article is no longer available Successor: INP-75A0033MIB
Network Dome, PTZ, 33x, 2952x1944, Day & Night, WDR, AI, Alarm, Audio, 24VAC/12VDC, PoE, IP66
discontinued

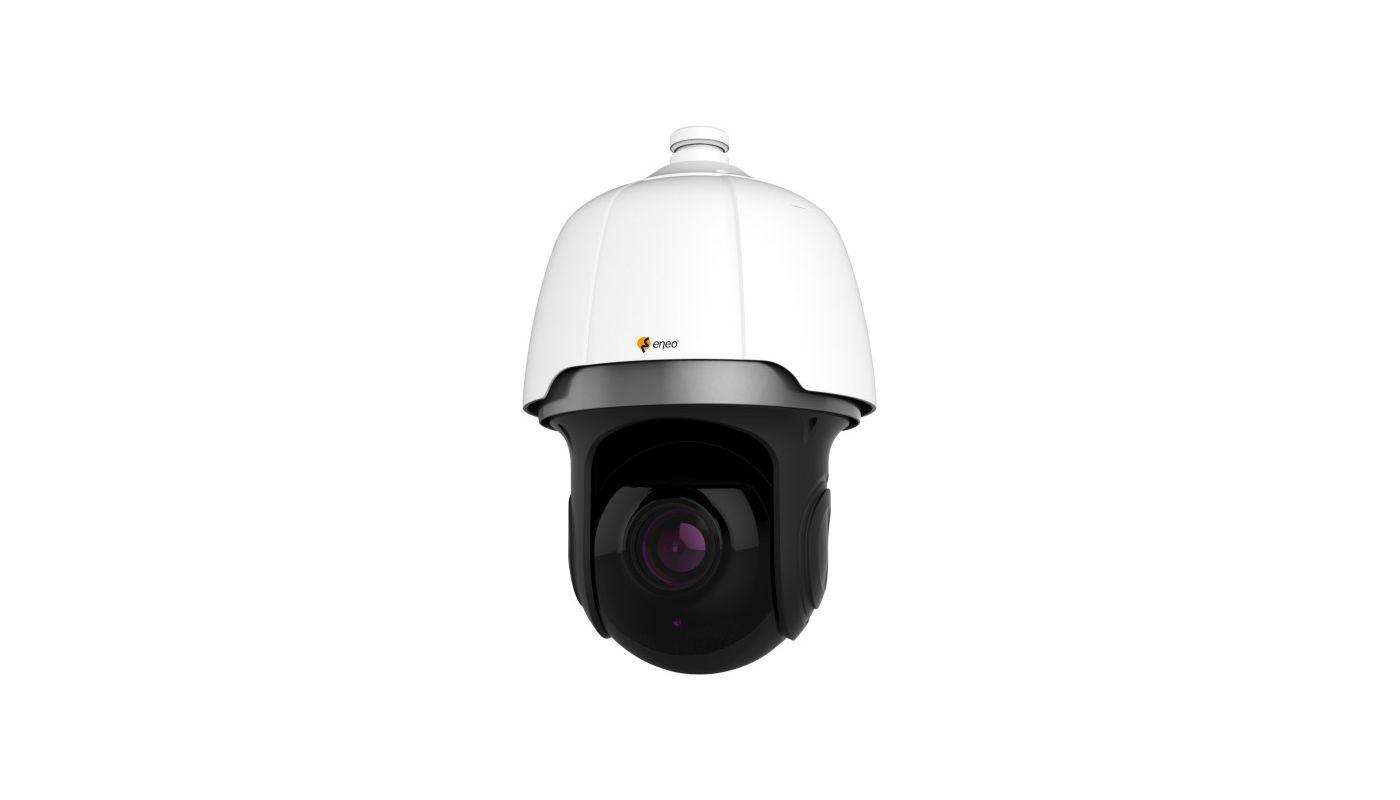

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 234751 |
|---|---|
| EAN/GTIN | 4260229840160 |
| Series | eneo IN-Series |
| Alarm inputs | nein |
|---|---|
| Alarm outputs | no |
| Analysis functions | Cross Counting (CC), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Stationary Object Detection (SOD), Tampering Detection (TD) |
| Audio | 1/1 Line input and output, 2 Way Audio |
| Audio support | yes |
| Backlight Compensation | BLC, HLC |
| Blower | no |
| Brand | eneo |
| Camera Type | Face recognition, People Count, Retail Intelligence |
| Camera type | PTZ |
| Color (housing) | black, Pantone P 179-1, RAL9003 |
| Day&Night switch | ICR |
| Detect (25px/m) | 90,2 - 2728,4 m |
| Digital Noise Reduction | yes |
| Dimensions (HxWxD) | 206,4×351,8mm |
| Ethernet interface | 100Base-TX, 10Base-T |
| Focal Length | 4,3 - 142 mm |
| Heater | no |
| Horizontal Angle of View | 55 - 2,3° |
| Hosuing material | Aluminium |
| Housing | Outdoor |
| Identify (250 px/m) | 7,5 - 273,3 m |
| Illumination range | approx. 150m |
| Image Transmission Rate | 30 fps |
| Image resolution max. | 2592x1944 |
| Imager | CMOS |
| Internal storage | microSD-Kartenslot |
| Iris Control | DC |
| Lens Type | auto focus zoom |
| Low Speed Shutter | yes |
| Motion Detector | yes |
| Mounting | Wall mount |
| ONVIF | ONVIF Profile G, ONVIF Profile S, ONVIF Profile T |
| Observe (62 px/m) | 35,6 - 1107,3 m |
| Operating temperature | -30°C ~ +60°C, @ Humidity 90% or less (non-condensing) |
| Power consumption | 25,5W |
| Power over Ethernet | IEEE 802.3at |
| Protection rating | IP66 |
| Recognize (125 px/m) | 17 - 548,3 m |
| Remote configuration | Browser |
| Resolution Standard | 5 Megapixel |
| Rotation range | 360° |
| Sensitivity | 0,003 Lux at F1,6 |
| Sensor size | 1/2.7" |
| Serial interfaces | Ethernet |
| Speed (manual) | 200°/Sek. |
| Speed (preset) | 200°/Sek. |
| Supply voltage | 12VDC, PoE+ |
| System | True Day&Night |
| Vandal proof | no |
| Vertical Angle of View | 41,6 - 1,7° |
| Video compression | H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG |
| Weight | 3.7kg |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Zoom Factor | 33x |
| llumination | Infrared |
Main Features
- 1/2.7" CMOS sensor, maximum resolution 5 MP/30fps
- AI analysis functions including object classification
- WDR 120dB, 3D-DNR Noise Reduction
- Motorized autofocus zoom lens 33x 4.3-142mm
- Smart Codec H.265/H.264, multi-streaming
- Browser independent (IE, Edge, Safari, Firefox, Chrome)
- Supports ONVIF Profile S and Profile T
- Local storage via Micro SD card
- Audio input and output
- IR LED illumination, IP66
- Wall bracket included
- Wall bracket included
