phased-out

IND-45F0028M0A

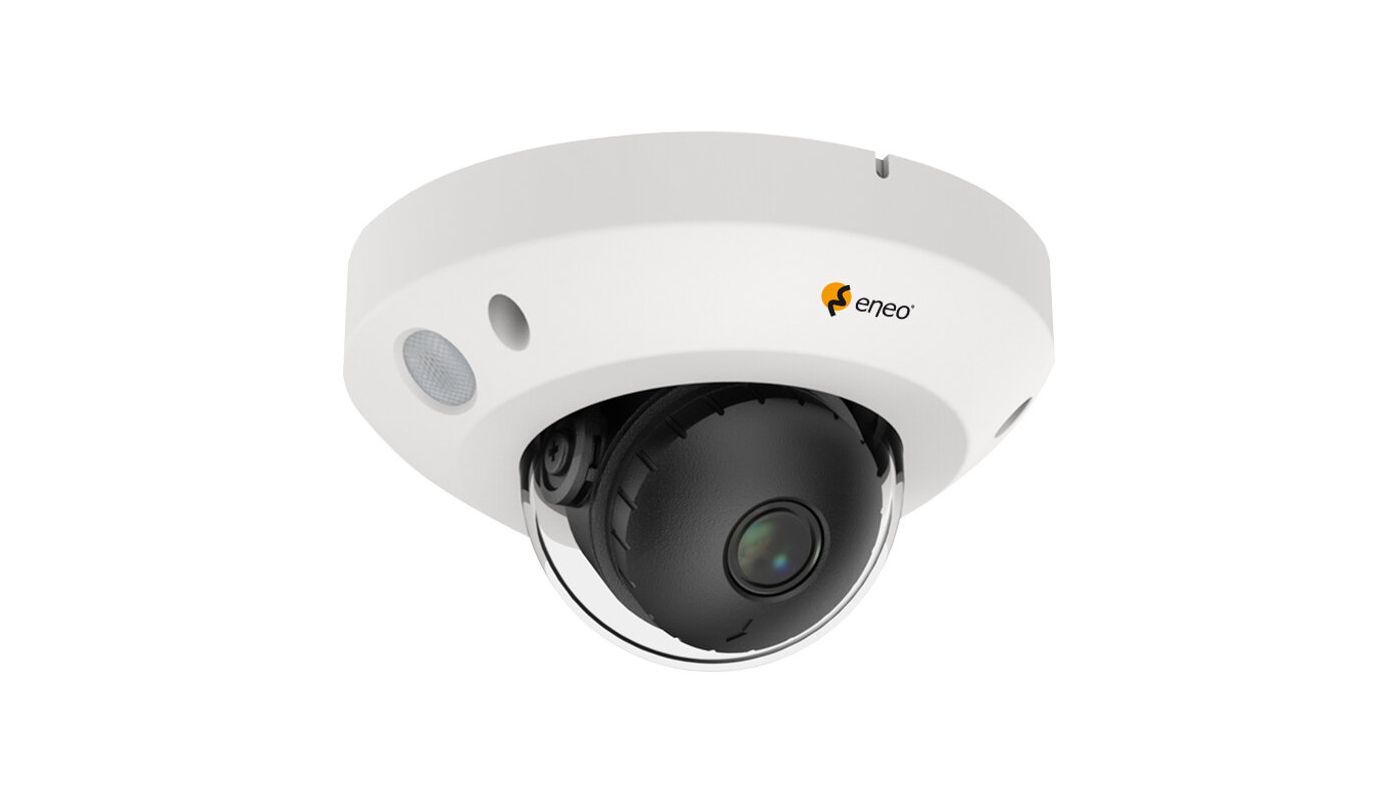

Mini Network Dome Fix, 2880x1620, Day/Night, WDR, AI, 2,8mm, IR, PoE, IP66
SKU
233902
Main Features
  • 1/2.7" CMOS sensor, maximum resolution 5 MP/30fps
  • AI analysis functions including object classification
  • WDR 120dB, 3D-DNR noise reduction
  • Fixed focal length lens 2.8mm (HFoV 110°)
  • Smart Codec H.265/H.264, multi-streaming
  • Browser independent (IE, Edge, Safari, Firefox, Chrome)
  • Supports ONVIF Profile S and Profile T
  • Multilingual menu navigation (OSD)
  • Local storage via Micro SD card
  • Supports audio (built-in microphone)
  • Power supply PoE IEEE 802.3af
  • IR LED illumination, IP66
More Information
Brand eneo
Camera type Dome
Sensor size 1/2.7"
Resolution Standard 5 Megapixel
System True Day&Night
Imager CMOS
Day&Night switch ICR
Low Speed Shutter yes
Digital Noise Reduction yes
Backlight Compensation BLC, HLC
Image resolution max. 2880x1620
Wide Dynamic Range (WDR) WDR 120dB
Motion Detector yes
Lens Type fixed focal length
Image Transmission Rate 30 fps
Iris Control DC
Video compression H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Lens Type fixed focal length
llumination Infrared
Focal Length 2,8 mm
Digital Zoom yes
MOD (Mininum Object Distance) 1,8 m
Vertical Angle of View 58°
Horizontal Angle of View 110°
Detect (25px/m) 64,4 m
Observe (62 px/m) 25,4 m
Recognize (125 px/m) 12,1 m
Identify (250 px/m) 5,4 m
Analysis functions Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD)
Audio support yes
Audio 1 Way Audio, built-in microphone
Internal storage 256GB, microSDHC card, microSDXC card
Remote configuration Browser
Ethernet interface 100Base-TX, 10Base-T
Supply voltage PoE
Alarm inputs no
Alarm outputs no
Serial interfaces Ethernet
Series eneo IN-Series
Dimensions (HxWxD) 115,3x64,3mm
Weight 265g
Illumination range approx. 20m
Color (housing) Pantone P 179-1, RAL9003
Color (bubble) clear
Housing Outdoor
Hosuing material Aluminium, Plastic
Heater no
Camera Type Face recognition, License plate recognition, People Count, Retail Intelligence
Power consumption 4.5W
Blower no
Mounting Ceiling mount, Wall mount
ONVIF ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
Power over Ethernet IEEE 802.3af
Protection rating IP66
Operating temperature -35°C ~ +60°C, @ Humidity 90% or less (non-condensing)
Vandal proof no
EAN/GTIN 4260229840009
Manufacturer order number 233902
