IED-62M2812MAA 9005

SKU 225146

No longer available

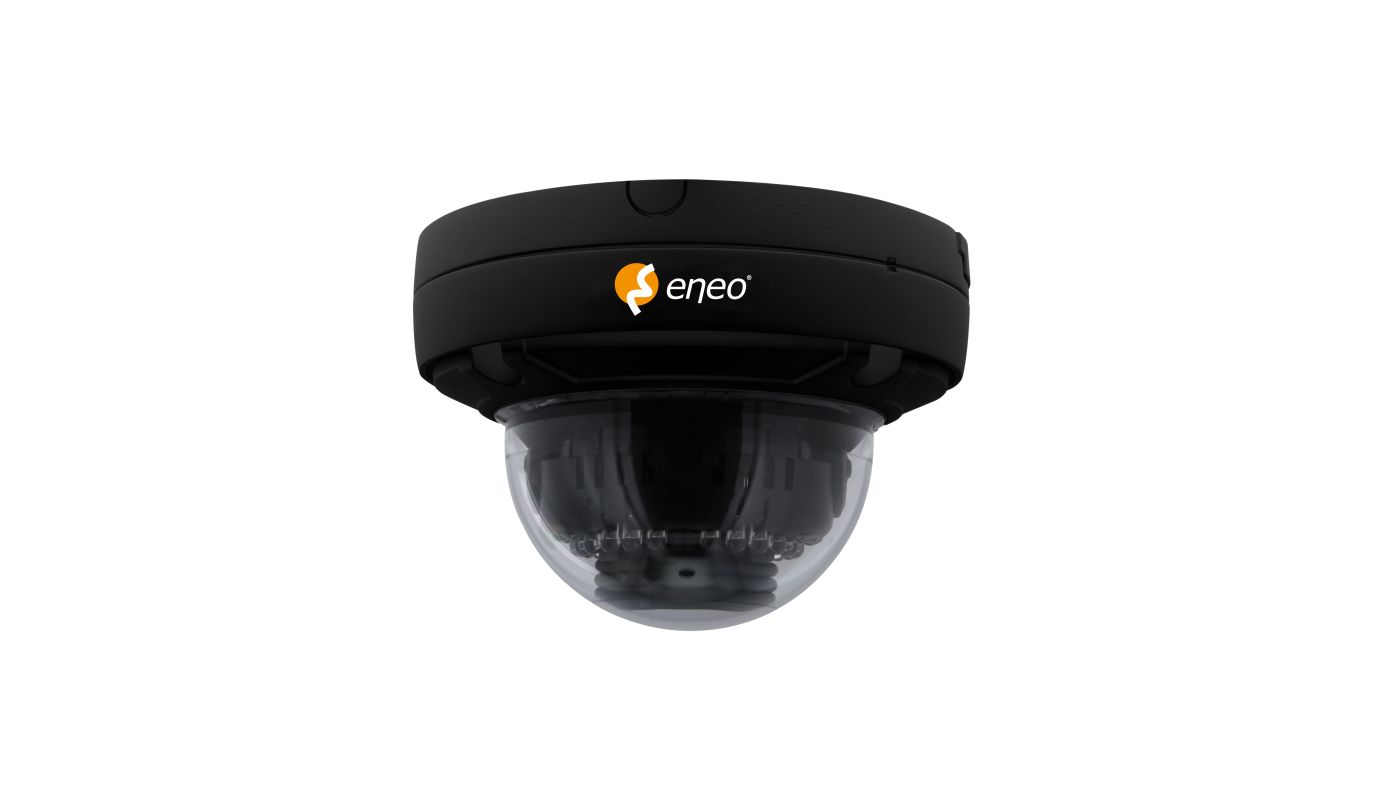

1/2.8" Network Dome, Fixed, 1920x1080, Day&Night, WDR, 2,8-12mm, IR, IP66, Black
Data sheet

Specifications

Manufacturer order number 225146
Series eneo SN-Serie
Alarm inputs 1
Alarm processing recording internal storage (SD card),E-Mail,FTP,Boost,HTTP,TCP,UDP,HTTPS,XML,alarm out,Alarm Forwarding (Preset Call of eneo PTZ Dome)
Audio 2 Way Audio
Audio support Yes
Brand eneo
Browser Edge: MJPEG setup limited, Google Chrome: MJPEG setup limited, Mozilla: MJPEG setup limited, Safari: MJPEG setup limited
Camera shape Minsters
Certifications IK10
Chip size 1/2,8"
Color (dome) clear
Control Interfaces Ethernet
Data stream types Quad Streaming
Day/night mode Day,Night,Automatic
Day/night switching Switchable IR Filter (ICR)
Detect (125px/m) 4 m
Digital Noise Reduction (DNR) Yes
Dimensions (WxHxD) (extended) 99x144mm
External connections Alarm output,Alarm input,Audio input/output,RJ-45,12VDC input (DC plug),connection cable approx.40cm
Flickerless function Yes
Focal length 2,8 - 12 mm
Heating Yes
Horizontal angle of view 100 - 33°
Housing material Aluminium
Housing type Outside
Identify (250px/m) 4 m
Image resolution max. 1920x1080
Image transfer rate max. 30 fps
Internal memory microSDHC card, microSDXC card
Lens Type Varifocal (motorized)
Lighting Infrared
MOD (Minimum Object Distance) 0.5 m
Menu languages Chinese, English, French, German, Japanese, Korean, Russian
Mounting type Ceiling, Wall
Multicast Yes
ONVIF ONVIF Profile S, ONVIF Profile T
Password Administrator and User
Perceiving (25px/m) 40 m
Photosensitivity 0,03 Lux bei F1,6,40 IRE
Power consumption 8.5 W
Power over Ethernet IEEE 802.3af
Power supply 12VDC, Poe
Protection IP66
Recording sensor CMOS
Remark Note that electronic adjustment aid such as Zoom / Focus or Pan / Tilt functions are not designed for continuous operation.Permanent use may affect the life of the camera,Colour matching accessories on request,To guarantee you an optimum user experience,
Resolution (extended) 1920x1080 (16:9),1440x1080 (4:3),1280x1024 (5:4),1024x768 (4:3),1280x720 (16:9),800x600 (4:3),800x480 (16:9),704x576 (4:3),704x480 (4:3),640x480 (4:3),400x240 (4:3),352x288 (4:3),
Resolution standard 2 MP
SDK upon request
Scope of delivery manual,bag of screws
System True Day&Night
Temperature Range (Operating) -20°C ~ +50°C
Text overlay available
Turning range 359 °
Vandalism-resistant Yes, Yes
Vertical tilt range 0 ~ +90°
Video Compression H.264, H.264+, H.265, H.265+, M-JPEG
Watch (62px/m) 16 m
White balance Automatic,Manual
Wide Dynamic Range (WDR) WDR 120dB
Zoom Factor (Digital) 0
Zoomfactor (optical) 4

Main Features

  • 1/2,8" Sony STARVIS CMOS
  • Resolution max. 1920x1080, 25fps frame rate
  • Motorised vary focal lens 2.7~12mm with P-Iris
  • Intelligent self-learning video analysis (IntelliVision inside)
  • Wide Dynamic Range, T-WDR (120dB)
  • Quad Streaming: H.264, H.265 x3, MJPEG x1, Smart Codec ROI Hi-Stream
  • Micro SD Card (SDHC, SDXC)
  • 1 x Alarm in and output as well as audio support
  • Infrared illumination up to 30m
  • PoE IEEE 802.3af Class 0,12VDC, IP66
  • Supports ONVIF Profile S and Profile T
  • Colour RAL 9005 black
