ICB-62M0550MAA
SKU 231833

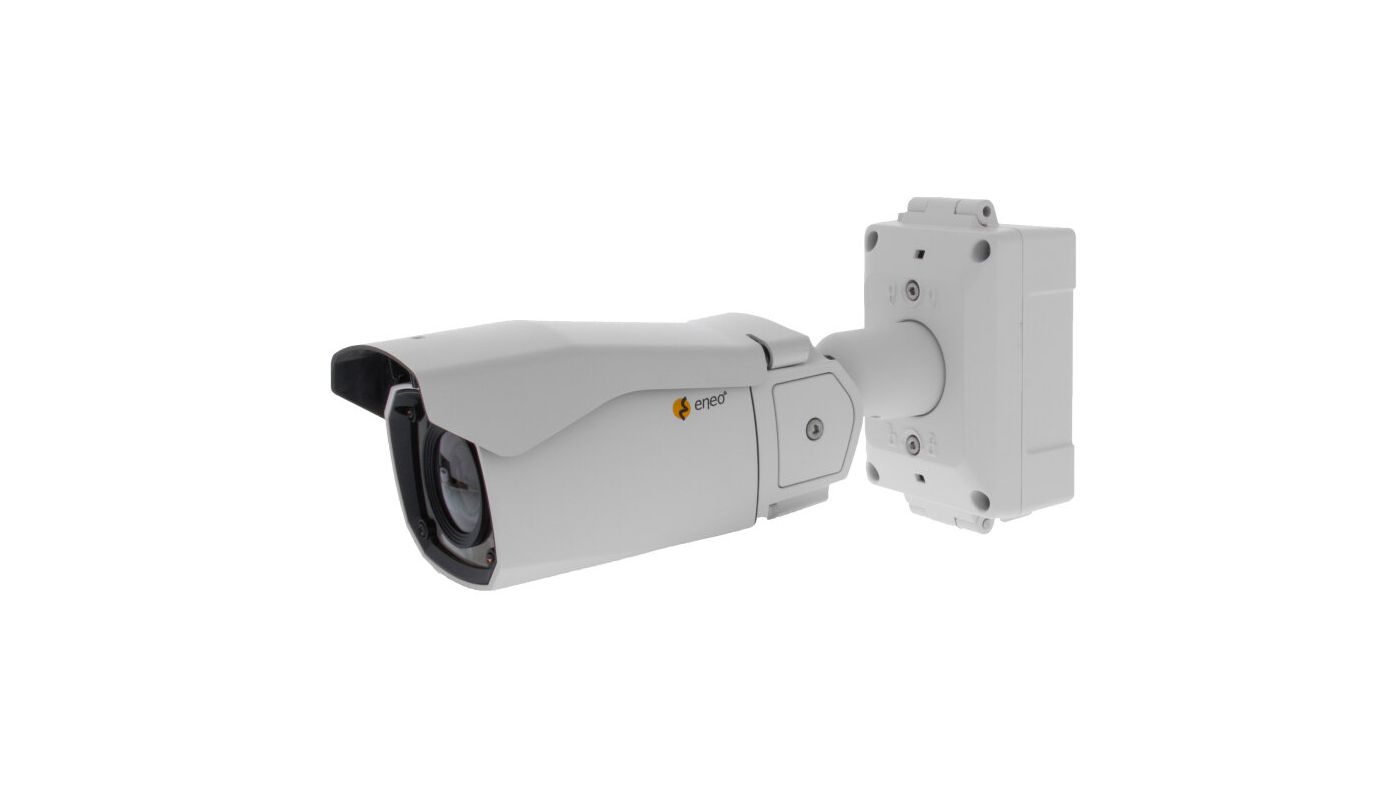

1/2.8" Network Camera, 1920x1080, Day/Night, DOL-WDR, 5.0-50mm, Infrared, IP67
For Prices and Availability please login.
phased-out
Camera not included
Specifications
- Manufacturer order number
- 231833
- Brand
- eneo
- Series
- eneo AN-Serie,eneo Candid Small
Camera
- Camera shape
- Bullet
- Chip size
- 1/2,8"
- Resolution standard
- 2 MP
- Recording sensor
- CMOS
- Photosensitivity
- 0,001 Lux bei F1,6,40 IRE
- System
- True Day&Night
- Flickerless function
- Yes
- Day/night switching
- Switchable IR Filter (ICR)
- Day/night mode
- Automatic,Day,Night,extern (Sensor)
- White balance
- Automatic,Outdoor,Light bulb,Fluorescent light,Clear Sky,Shade,Manual
- Signal-to-noise ratio
- 50 dB
Video
- Resolution (extended)
- 1920x1080 (16:9),1280x720 (16:9)
- Video Compression
- H.264, H.264+, H.265, H.265+, M-JPEG
- Data stream types
- Multi-Streaming
- Image transfer rate max.
- 30 fps
Lens
- Lens Type
- Varifocal (motorized)
- Focal length
- 5 - 50 mm
- Zoom Factor (Digital)
- 0
- MOD (Minimum Object Distance)
- 0.5 m
- Horizontal angle of view
- 49,9 - 8°
Display
- Image resolution max.
- 1920x1080
DORI
- Perceiving (25px/m)
- 764 m
- Watch (62px/m)
- 303 m
- Detect (125px/m)
- 7.5 m
- Identify (250px/m)
- 7.5 m
Functions
- Multicast
- Yes
- Alarm processing
- recording internal storage (SD card),E-Mail,HTTP,FTP,Boost,TCP,UDP,Onvif Event Mapping,alarm out
- Password
- Administrator and User
- Internal memory
- microSDHC card, microSDXC card
- Menu languages
- English, French, German, Korean
- Browser
- Edge: MJPEG, Mozilla: MJPEG, Safari: MJPEG
- Digital Noise Reduction (DNR)
- Yes
Interfaces / Inputs/ Outputs
- External connections
- micro SD card slot,Connection board (LSA,RJ45,audio,I / O alarm & Sabotage contacts)
- Alarm inputs
- 1
- Control Interfaces
- Ethernet
General
- Wide Dynamic Range (WDR)
- D-WDR
- Lighting
- Infrared
- Zoomfactor (optical)
- 10
- Dimensions (WxHxD) (extended)
- 130,50x82,15x265,80mm
- Housing type
- Outside
- Housing material
- Aluminium
- Integrated wall mount
- Yes
- Mounting type
- Ceiling, Wall
- ONVIF
- ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3af
- Protection
- IP67
- SDK
- upon request
- Sunshade canopy
- Yes
- Power supply
- Poe
- Temperature Range (Operating)
- -50°C ~ +50°C
- Text overlay
- available
Parts supplied
- Scope of delivery
- manual,bag of screws
Notes
- Remark
- NDAA compliance under Section 889,To guarantee you an optimum user experience,we recommend that you only use components of the same brand in a system. If several brands are used in combination,eneo cannot guarantee functionality. If combined use is necess
Main Features
- 1/2.8" Sony STARVIS CMOS Sensor
- Excellent light sensitivity
- Resolution max. 1920x1080 (Full HD)
- Motorised varifocal lens 5.0~50mm
- DOL-WDR (120dB) by triple scan images at 30/25fps
- Motion Detection, Privacy Zones, Slow Shutter
- Browser independent (IE, Edge, Safari, Firefox, Chrome)
- Smart Codec H.265 ROI (Region of Interest)
- Supports ONVIF Profile S and Profile T
- Vertical View 90°/270° Modus, H-Flip, Mirror
- Power supply PoE, IP67
- Integrated connection box including connection board
