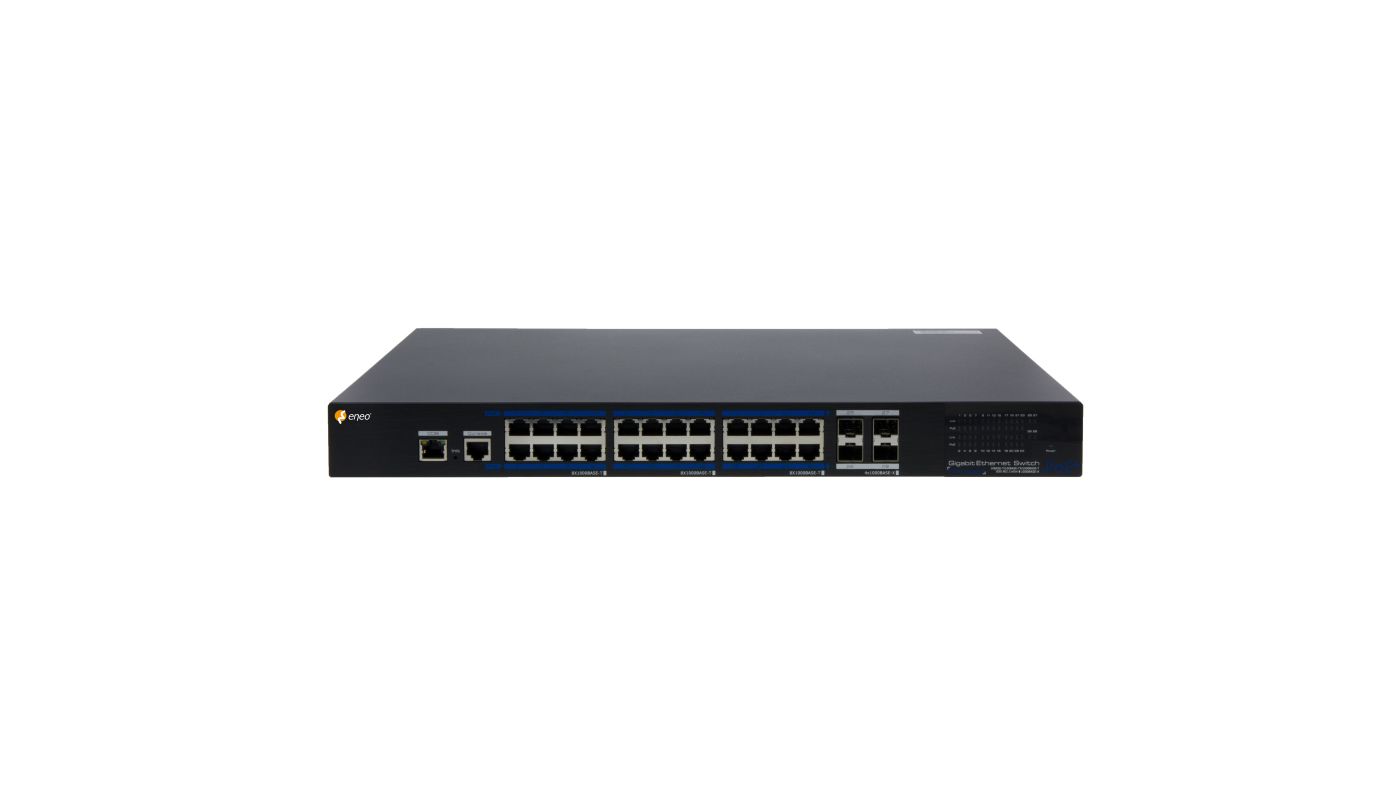

eneo IAR-7SG1024MMB
SKU 226922No longer available
Gigabit Switch, Managed, 390W, 24x PoE, 4x SFP, 10/100/1000 Mbps, 19", 1HE
discontinued
Specifications
- Manufacturer order number
- 226922
- Brand
- eneo
- Series
- eneo Switch
Functions
- Multicast
- Yes
- Security
- Fast Ring, Password, Port Isolation, Port Speed Setting, Radius Authentication
Network
- Eneo _netzwerkstandards
- IEEE 802.1D Spanning Tree Protocol, IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
- Internal Switching Capacity (MP per second)
- 41.7 Mpps
- Internal Switching Capacity (Gbit)
- 56 Gbps
- VLAN
- Yes
Interfaces / Inputs/ Outputs
- Ethernet interface
- 1000Base-T, 100Base-TX, 10Base-T
- Ports
- 24x 10/100/1000Base-T, 4x 1000Mbps SFP, Console RJ45-RS232, Console RJ45-RS232, OOB 10/100Base-TX, OOB 10/100Base-TX
General
- Design
- Rack
- Dimensions (WxHxD) (extended)
- 44,5x442x320mm
- Weight
- 4.5 kg
- Number of PoE ports
- 24
- Type
- Layer2 Switch
- Power consumption
- 450 W
- Fan
- Yes
- Management
- Yes
- Mounting type
- 19" Rack Installation
- PoE Budget (Total)
- 390 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at
- Power supply
- 100~240VAC
- Temperature Range (Operating)
- -10°C ~ +50°C
- Application environment
- inside
- ESD protection
- IEC61000-4-2, IEC61000-4-5
Parts supplied
- Scope of delivery
- manual,power cord,19\" rack mount angle
Main Features
- PoE Switch, Rack Mounting
- Gigabit Uplink Ports: 4x SFP
- 24x 10/100/1000 PoE Ports, IEEE 802.3af/at
- Up to 30W per port, total ≤390W
- Fast Ring-Redundant, Reconfiguration < 20 ms
- ESD protection IEC61000-4-5 standard
- Managed L2 switch, Built in low-noise fans
- Web configuration, Web management
- VLAN, PoE management, MAC address table
- Port mirroring, password
- Temperature range -10° C ~ +50° C
- Rack mounting brackets included
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Manufacturer data sheet (german)
-
Manufacturer data sheet (english)
-
Manual for this product (english)
-
Product image in a high resolution
-
Declaration of conformity (german and english)
