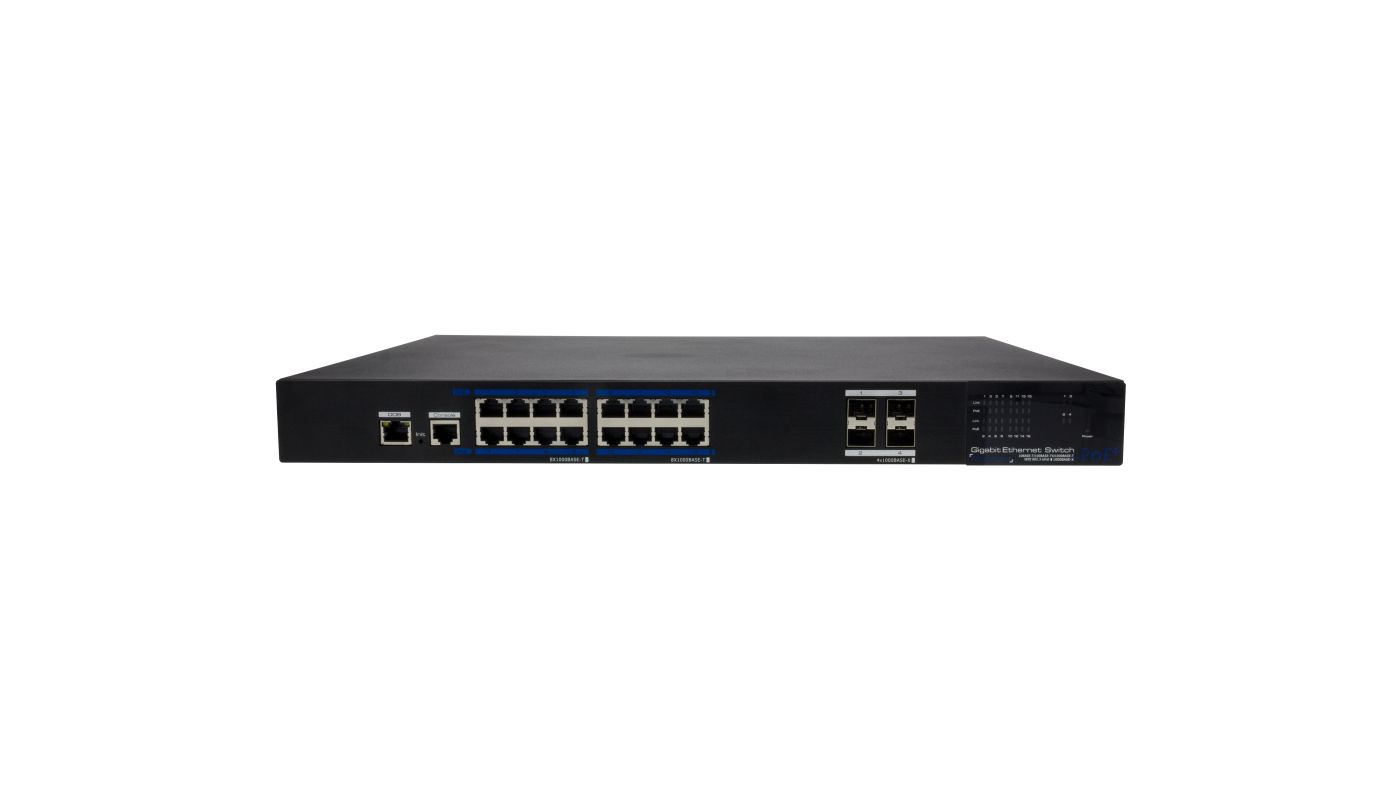

IAR-7SG1016MMB

Gigabit Switch, Managed 270W, 16x PoE, 4x SFP, 10/100/1000 Mbps, 19", 1 U
SKU
226691
Main Features
  • PoE Switch, Rack Montage
  • Gigabit Uplink Ports: 4x SFP
  • 16x 10/100/1000 PoE Ports, IEEE 802.3af/at
  • Up to 30W per port, total ≤270W
  • Fast Ring-Redundant, Reconfiguration <20ms
  • ESD protection IEC61000-4-5 standard
  • Managed L2 switch
  • Web configuration, Web management
  • VLAN, PoE management, MAC address table
  • Port mirroring, password
  • Temperature range -10° C ~ +50° C
  • Rack mounting brackets included
More Information
Brand eneo
Model Rack Mount
VLAN yes
Ethernet interface 1000Base-T, 100Base-TX, 10Base-T
Ports 16x 10/100/1000Base-T, 4x 1000Mbps SFP, Console RJ45-RS232, OOB 10/100Base-TX
Supply voltage 100~240VAC
Series eneo Switch
Dimensions (HxWxD) 44,5x442x320mm
Weight 4.5Kg
PoE ports (number) 16
Type Layer2 switch
Power consumption 320W
Blower yes
Management yes
Mounting 19" rack
PoE budget 270 W
Power over Ethernet IEEE 802.3af, IEEE 802.3at
Operating temperature -10°C ~ +50°C
Manufacturer order number 226691
