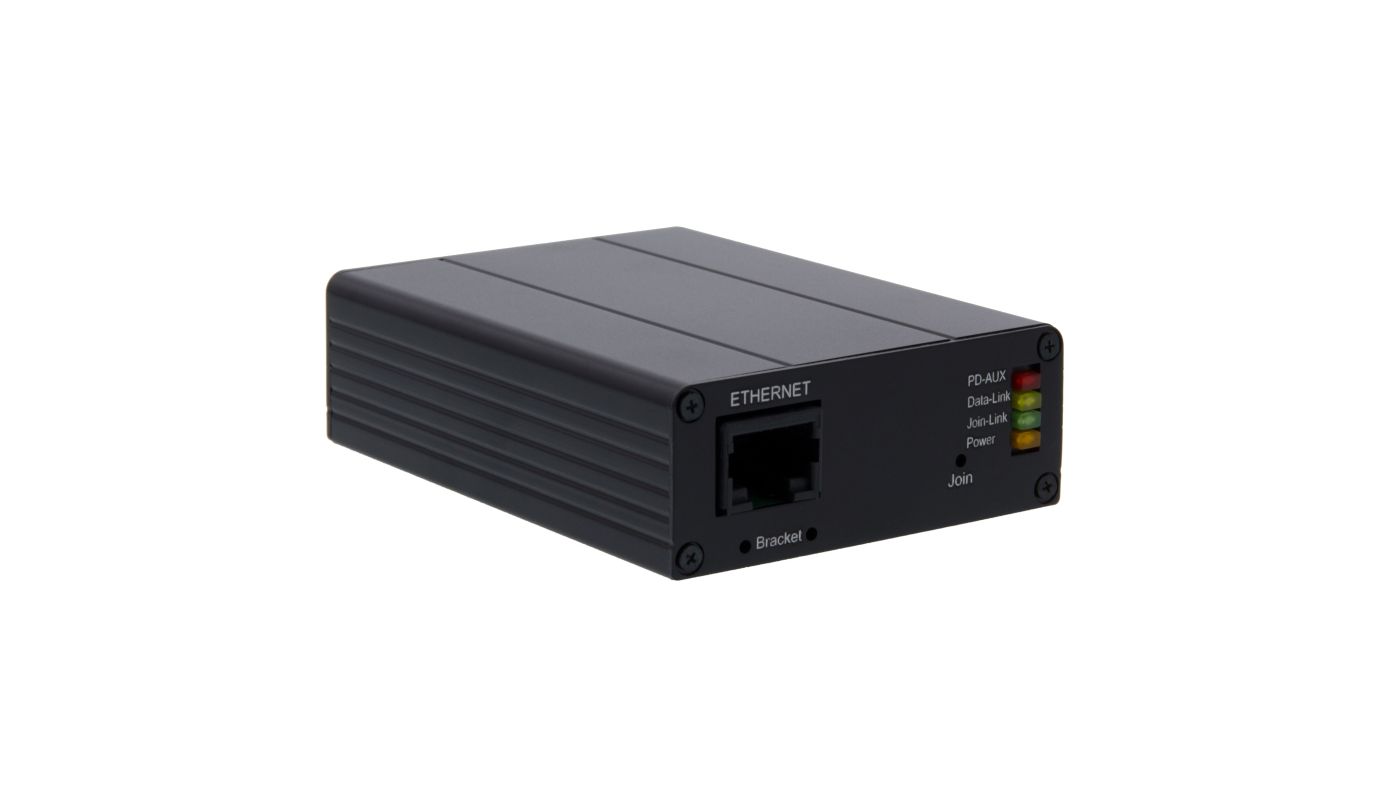

IAM-6MC1001MRA
Ethernet Coax Receiver Data & Power over Coax 1 x RJ-45, 1 x BNC
SKU
221577
Main Features
- EPOC Ethernet and Power over Coax Transmission
- RJ45 Ethernet and BNC-Female plug
- Max. Transmission Rate 95Mbps Full Duplex
- Data Transmission up to 2.4Km
- PoC Transmission up to 1.2Km
- Power Supply Receiver PoE or 12-57V DC
- PoE/PoE+ Power Supply for Transmitter
- 128 Bit AES Network Encryption
- Supports Multi Connection (Daisy Chain, Star)
- Surge Protection
- Temperature Range (Operating) -20° C bis +60°C
- Easy Installation (Plug & Play)
For Prices and Availability please login.
| Brand | eneo |
|---|---|
| Model | module |
| Data tranfer rate max. | 95 Mbps |
| Ethernet interface | 100Base-TX, 10Base-T |
| Series | eneo EPOC |
| Dimensions (HxWxD) | 24x61,6x82,4mm |
| Weight | 77g |
| Color | anthracite |
| Housing | Metal |
| Power over Ethernet | IEEE 802.3af, IEEE 802.3at |
| Supply voltage | 56VDC |
| Operating temperature | -20°C ~ +60°C |
| Manufacturer order number | 221577 |
- Marketing Infos PDF Transmission_Rates_EPOC_eneo.pdf Transmission rates of the EPOC devices from eneo 362.9 kB
- Firmware HTML eneo_Product_ Firmware.html Produkt Firmware_CAD Files 835 B
- Manufacturer data sheet PDF 221577_en_sup.pdf Original product information from the manufacturer 189 kB
- Manufacturer datasheet PDF Original product information from the manufacturer
- Data sheet PDF 221577_iam-6mc1001mra.pdf Data sheet with specifications generated live from the product database <350KB
- Specifications text DOC 221577_iam-6mc1001mra.doc Technical data as Word document, generated live from the product database <50KB
