IAM-5SE1008MUB
SKU 228223
Gigabit Switch, 8xPoE 100Mbps, 1x RJ45, 1x SFP 1000Mbps, Unmanaged, Industrial Design
For Prices and Availability please login.
special_price

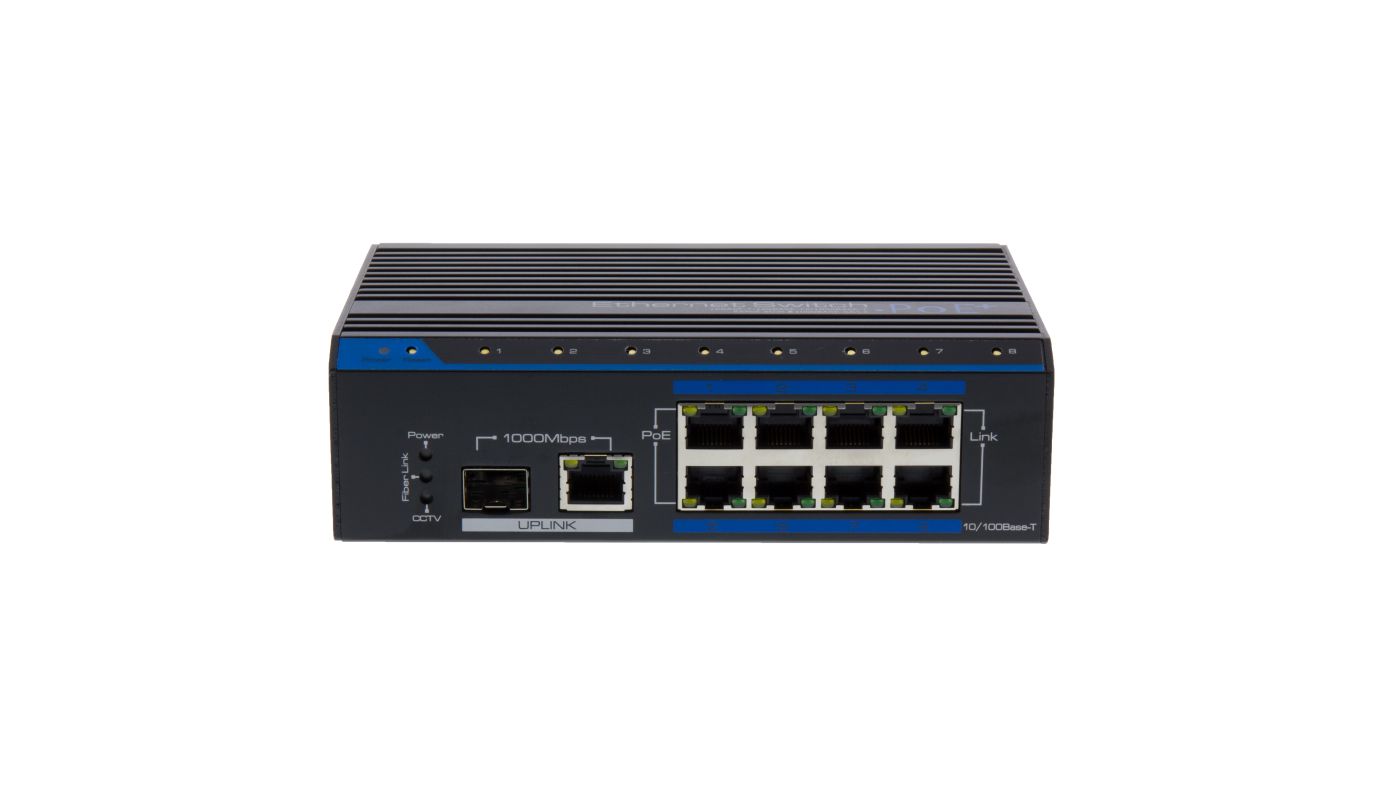

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 228223 |
|---|---|
| Series | eneo Switch |
| Application environment | inside |
|---|---|
| Brand | eneo |
| Design | DIN Rail Module |
| Dimensions (WxHxD) (extended) | 46,5x163x110,5mm |
| ESD protection | IEC61000-4-2, IEC61000-4-5 |
| Eneo _netzwerkstandards | IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX |
| Ethernet interface | 1000Base-T, 100Base-TX, 10Base-T |
| Fan | No |
| Internal Switching Capacity (Gbit) | 5.6 Gbps |
| Internal Switching Capacity (MP per second) | 4.2 Mpps |
| Management | No |
| Mounting type | DIN Rail, Wall |
| Multicast | No |
| Number of PoE ports | 8 |
| PoE Budget (Total) | 120 W |
| Ports | 1x 10/100/1000Base-TX, 1x 10/100/1000T SFP, 8x 10/100Base-TX |
| Power over Ethernet | IEEE 802.3af, IEEE 802.3at |
| Power supply | 48-57 VDC |
| Rack installation | No |
| Scope of delivery | manual,power cord,Mounting Bracket,PSU |
| Temperature Range (Operating) | -40°C ~ +75°C |
| Type | Unmanaged |
| VLAN | Yes |
| Weight | 530 kg |
Main Features
- Gigabit PoE switch, DIN Rail
- Gigabit Uplink ports 1xRJ45, 1xSFP
- 8x 10/100 PoE Ports, IEEE 802.3af/at
- Up to 30W per port
- Surge protection IEC61000-4-5 (6KV)
- Status LED: Uplink, PoE, Optical port, Power
- PoE reset button for each port
- CCTV mode allows transmission up to 250m @ 10Mbps
- Temperature range -40° C ~ +75° C
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Manufacturer data sheet (german)
-
Manufacturer data sheet (english)
-
Quick reference guide for this product (multilingual)
-
Quick reference guide for this product (multilingual)
-
Manual for this product (english)
-
Product Firmware CAD Files
-
NDAA compliant products
-
SFP compatibility overview regarding the eneo switches
-
Product image in a high resolution
-
Declaration of conformity (german and english)
