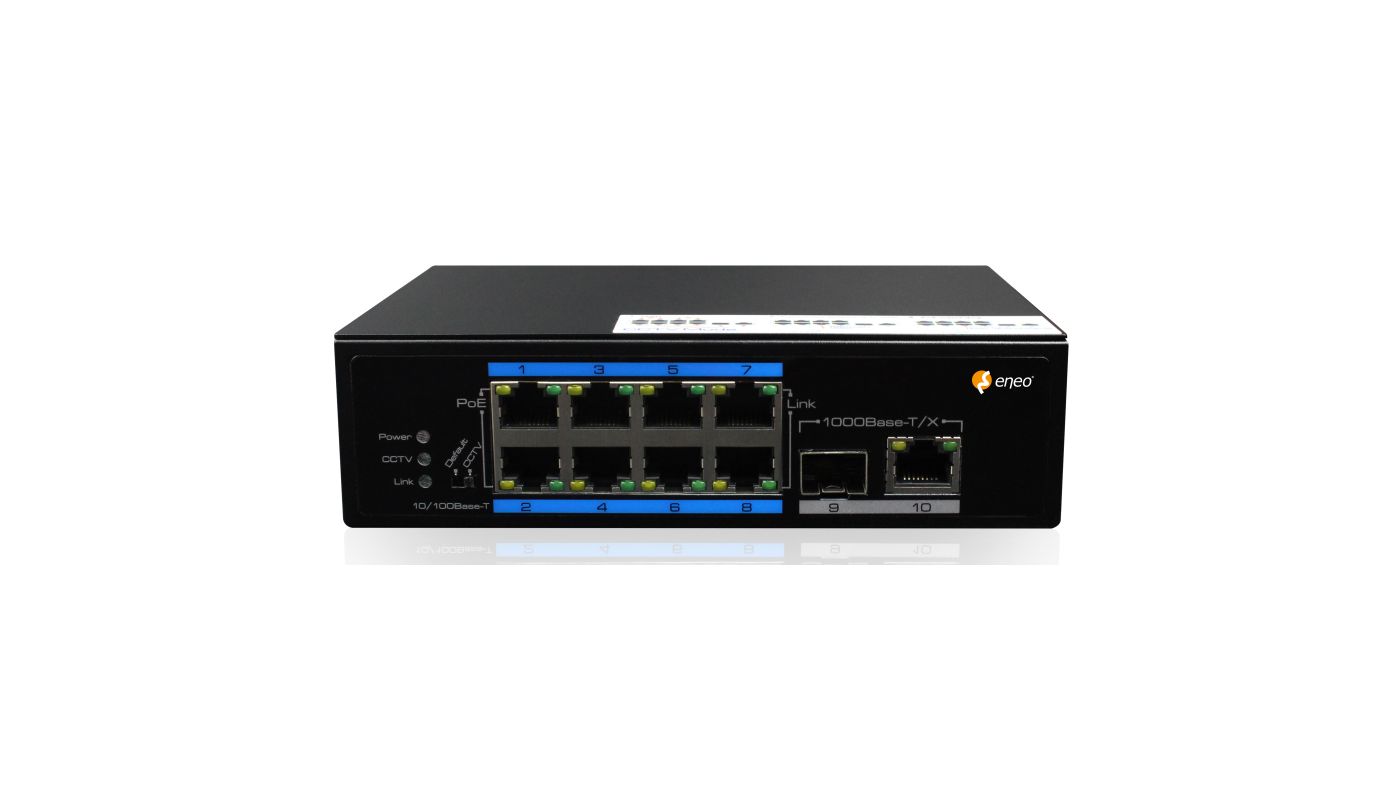

IAM-5SE1008IUA

SKU 230034
Switch unmanged, 120W, 8xPoE 1xRJ45 ,1xSFP Gigabit Industrial Design
Data sheet

Specifications

Manufacturer order number
230034
Brand
eneo
Series
eneo Switch

Functions

Menu languages
English, German
Security
CCTV mode

Network

Eneo _netzwerkstandards
IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
Internal Switching Capacity (MP per second)
4.0 Mpps
Internal Switching Capacity (Gbit)
5.6 Gbps
VLAN
Yes

Interfaces / Inputs/ Outputs

Ethernet interface
1000Base-T, 100Base-TX, 10Base-T
Ports
1x 10/100/1000Base-T, 1x 10/100/1000T SFP, 8x 10/100Base-TX
PoE Standard
IEEE802.3af, IEEE802.3at

General

Design
Case
Dimensions (WxHxD) (extended)
44x159x110mm
Weight
500 g
Number of PoE ports
8
Type
Unmanaged
Mounting type
Desktop
PoE Budget (Total)
240 W
Power over Ethernet
IEEE 802.3af, IEEE 802.3at
Power supply
48-57 VDC
Temperature Range (Operating)
-30°C ~ +65°C
Application environment
inside
ESD protection
IEC61000-4-2, IEC61000-4-5

Parts supplied

Scope of delivery
manual,power cord,Mounting Bracket,PSU

Notes

Remark
External power supply specification: 100~240VAC,120W,-10°~+55°.,To achieve the specified PoE budget (total) value,an appropriate optional power supply unit must be used.

Main Features

  • Ethernet PoE Switch, DIN Rail
  • Gigabit Uplink ports 1xRJ45, 1xSFP
  • 8x 10/100 PoE Ports,IEEE 802.3af/at
  • Up to 30W per port, Total ≤240W (optional power supply)
  • Surge protection IEC61000-4-5 (6KV)
  • Status LED: Uplink, PoE, Optical port, Power
  • CCTV mode allows transmission up to 250m @ 10Mbps
  • Temperature range -30° C ~ +65° C
