IAM-5SE1004MUC
SKU 220212No longer available
Gigabit Switch, Unmanaged, 4x PoE, 2x RJ45 and 2x SFP, 1000Mbps, Industrial Design
discontinued

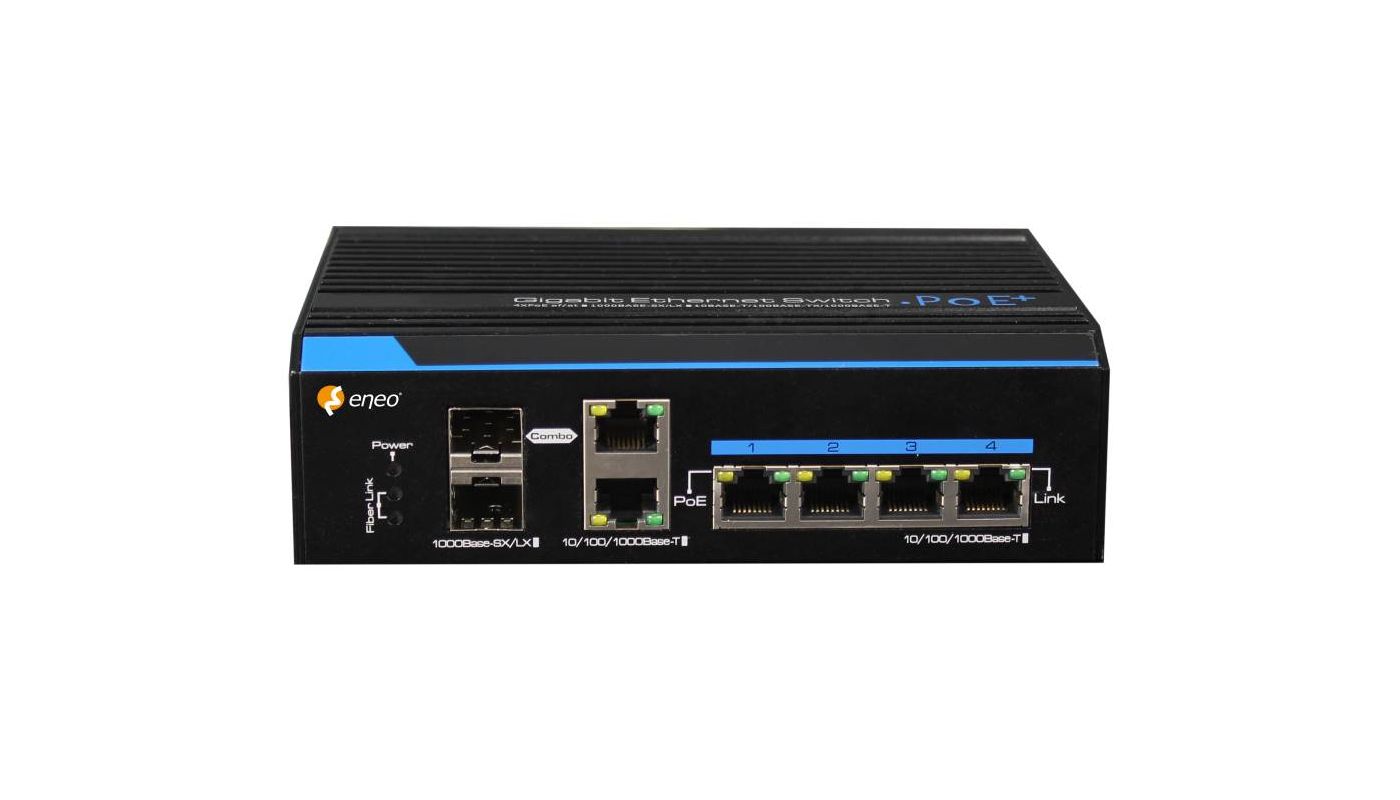

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 220212 |
|---|---|
| Series | eneo Switch |
| Application environment | inside |
|---|---|
| Brand | eneo |
| Design | DIN Rail Module |
| Dimensions (WxHxD) (extended) | 46x110x163mm |
| Eneo _netzwerkstandards | IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX |
| Ethernet interface | 1000Base-T, 100Base-TX, 10Base-T |
| Fan | No |
| Internal Switching Capacity (Gbit) | 14 Gbps |
| Internal Switching Capacity (MP per second) | 10.4 Mpps |
| Management | No |
| Mounting type | DIN Rail, Wall |
| Multicast | No |
| Number of PoE ports | 4 |
| PoE Budget (Total) | 120 W |
| Ports | 2x 10/100/1000Base-TX, 2x 10/100/1000T SFP, 4x 10/100/1000Base-T |
| Power over Ethernet | IEEE 802.3af, IEEE 802.3at |
| Power supply | 48-57 VDC |
| Rack installation | No |
| Remark | External power supply specification: 100~240VAC,150W,30x70x150mm,-30°~+70° |
| Scope of delivery | manual,power cord,Mounting Bracket,PSU |
| Temperature Range (Operating) | -40°C ~ +75°C |
| Type | Unmanaged |
| VLAN | No |
| Weight | 530 kg |
Main Features
- Gigabit PoE switch, DIN Rail
- Gigabit Uplink ports 2xRJ45, 2xSFP
- 4x 10/100/1000 PoE Ports,IEEE 802.3af/at
- Surge protection IEC61000-4-5 (6KV)
- Status LED: Uplink, PoE, Optical port, Power
- Temperature range -40° C ~ +75° C
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Manufacturer data sheet (german)
-
Manufacturer data sheet (english)
-
Manual for this product (english)
-
Declaration of conformity (german and english)
