IAM-5SE1004IUP

SKU 237908

No longer available

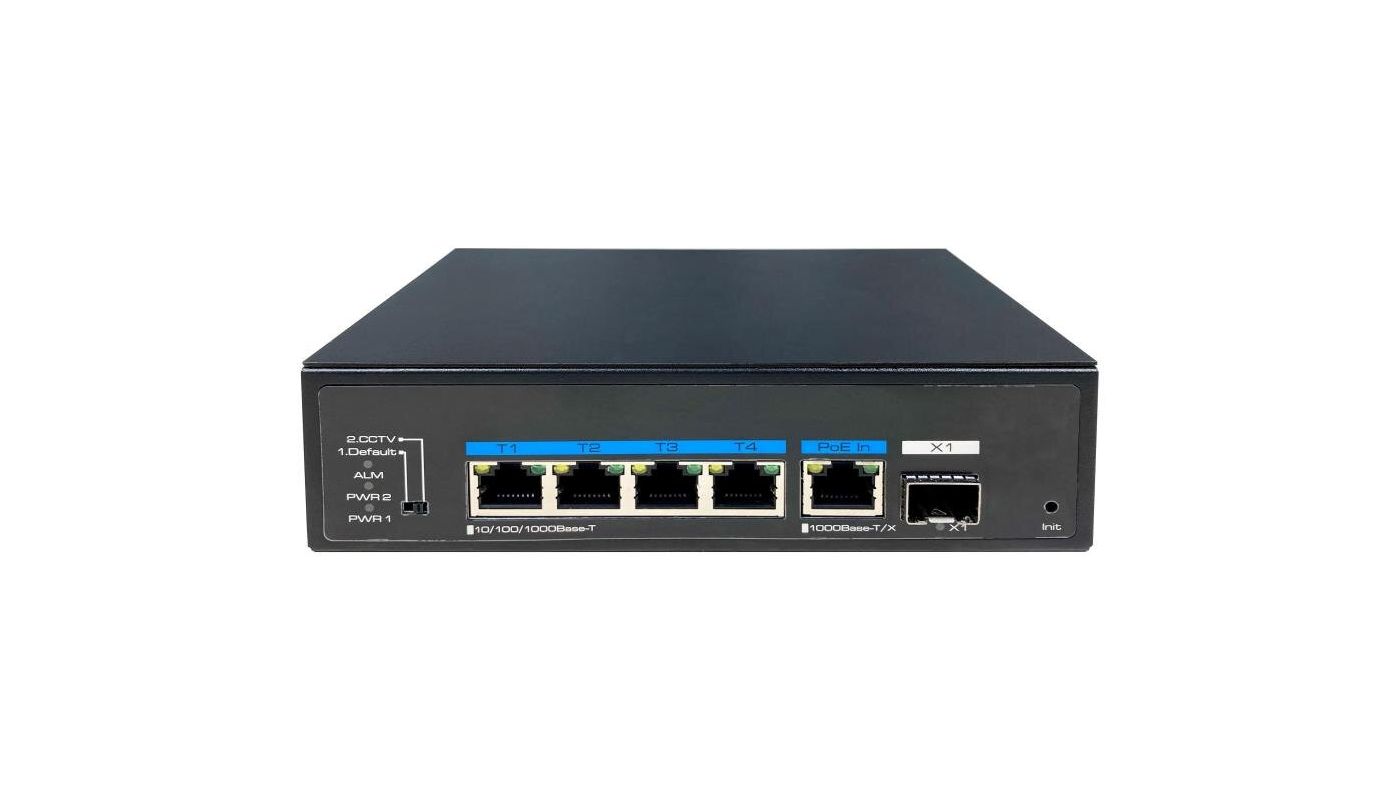

Gigabit Switch, Unmanaged 120W, 4x PoE, Industrial Design -20°C~+65°C, PD port
Data sheet

Specifications

Manufacturer order number
237908
Brand
eneo
Series
eneo Switch

Network

Eneo _netzwerkstandards
IEEE 802.1D Spanning Tree Protocol, IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
Internal Switching Capacity (MP per second)
8.9 Mpps
Internal Switching Capacity (Gbit)
12 Gbps

Interfaces / Inputs/ Outputs

Ethernet interface
1000Base-T, 100Base-TX, 10Base-T
Ports
1x 10/100/1000Base-T (PoE-PD), 1x 1000Base-X SFP, 4x 10/100/1000Base-T

General

Design
DIN Rail Module
Dimensions (WxHxD) (extended)
44x110x160mm
Weight
540 kg
Number of PoE ports
4
Type
Unmanaged
Power consumption
130 W
Mounting type
DIN Rail
PoE Budget (Total)
120 W
Power over Ethernet
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Power supply
48-56VDC, Poe
Temperature Range (Operating)
-40°C ~ +65°C
Application environment
inside
ESD protection
IEC61000-4-2

Parts supplied

Scope of delivery
"manual,power cord

Notes

Remark
Power supply unit is not included in the scope of delivery,To achieve the specified PoE budget (total) value,please use suitable power supplies or PoE injector.PoE budget: 90W max. for a single PoE port; 75W max. for all PoE ports when supplied via PD por

Main Features

  • Gigabit PoE Switch, DIN Rail
  • 4x 10/100/1000 PoE ports, IEEE 802.3af/at/bt
  • Maximum 90W power budget
  • 1 x SFP Gigabit uplink port
  • 1 x RJ45 Gigabit uplink port, PD-capable (90W PoE input)
  • CCTV mode, extended transmission distance
  • 1 x output relay
  • Overvoltage protection IEC61000-4-5 (6KV)
  • Temperature range -20°C ~ +65°C
