IAD-5SG1008MUA
SKU 216472No longer available

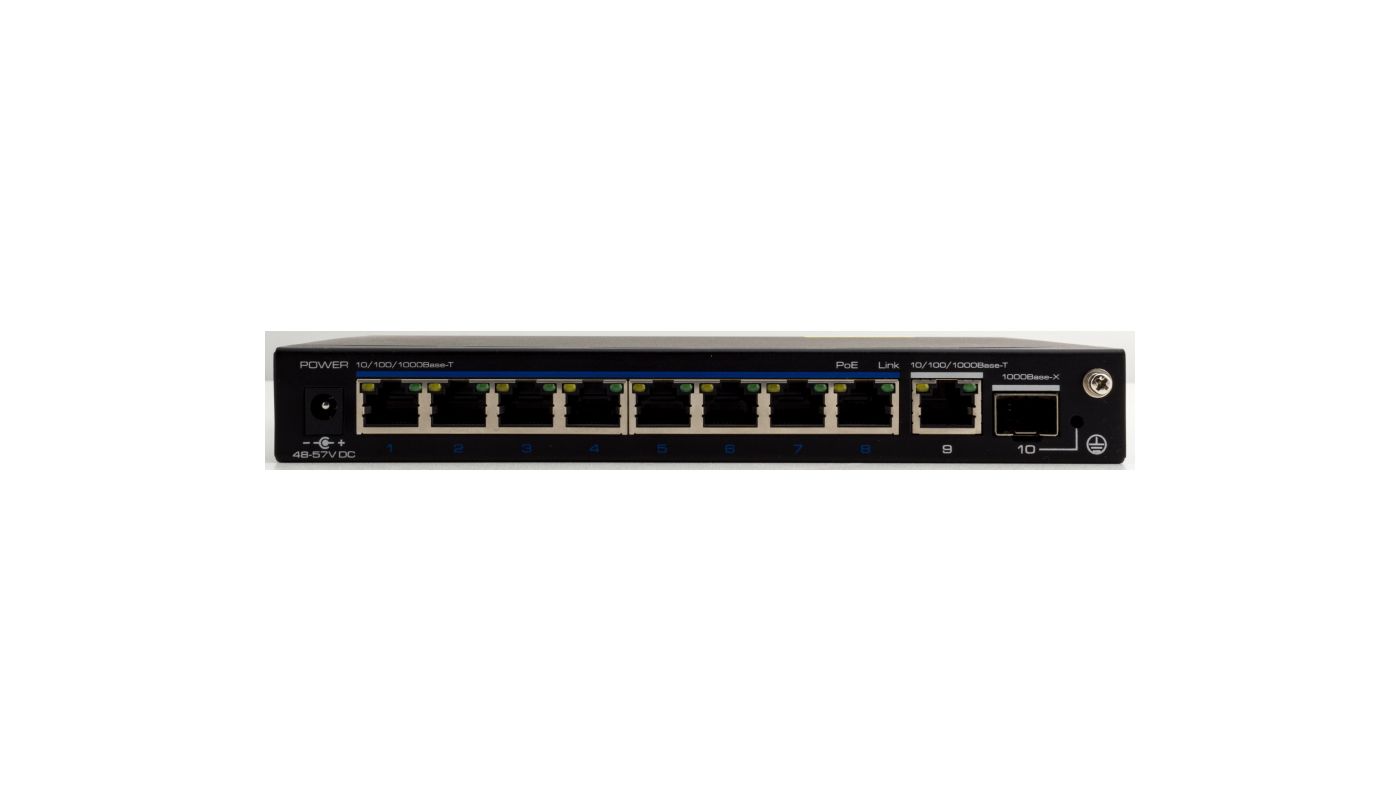

Gigabit Switch, Unmanaged, 120W, 8x PoE, 1xSFP, 1x RJ45, 10/100/1000 Mbps, Desktop
discontinued
Specifications
- Manufacturer order number
- 216472
- Brand
- eneo
- Series
- eneo Switch
Functions
- Security
- CCTV mode
Network
- Eneo _netzwerkstandards
- IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
- Internal Switching Capacity (MP per second)
- 14.9 Mpps
- Internal Switching Capacity (Gbit)
- 20 Gbps
Interfaces / Inputs/ Outputs
- Ethernet interface
- 1000Base-T, 100Base-TX, 10Base-T
- Ports
- 1x 10/100/1000Base-TX, 1x 1000Base-X SFP, 8x 10/100/1000Base-T
General
- Design
- Desktop
- Dimensions (WxHxD) (extended)
- 27x200x101,8mm
- Weight
- 500 kg
- Number of PoE ports
- 8
- Type
- Layer2 Switch
- Mounting type
- Desktop
- PoE Budget (Total)
- 120 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at
- Power supply
- 48-57 VDC
- Temperature Range (Operating)
- -10°C ~ +45°C
Parts supplied
- Scope of delivery
- manual,power cord,Mounting Bracket,PSU
Notes
- Remark
- CCTV mode: transmission of 10Mbps @ 250m,CCTV mode,PoE Power output: 29.2W @ 1m; 25.8W @ 100m; 24.2W @ 150m; 19.9W @ 250m
Main Features
- Gigabit PoE Switch, desktop application
- Gigabit Uplink Ports: 1x RJ45, 1x SFP
- 8x 10/100/1000 PoE Ports, IEEE 802.3af/at
- Up to 30W per Port, Total ≤120W
- ESD protection IEC61000-4-2 Standard
- CCTV mode allows transmission up to 250m @ 10Mbps
- Brackets and 150W power-adaptor scope of supply
