eneo IAD-5SE1008MUA
SKU 220593
No longer available
Successor: IAD-5SG1008MUA

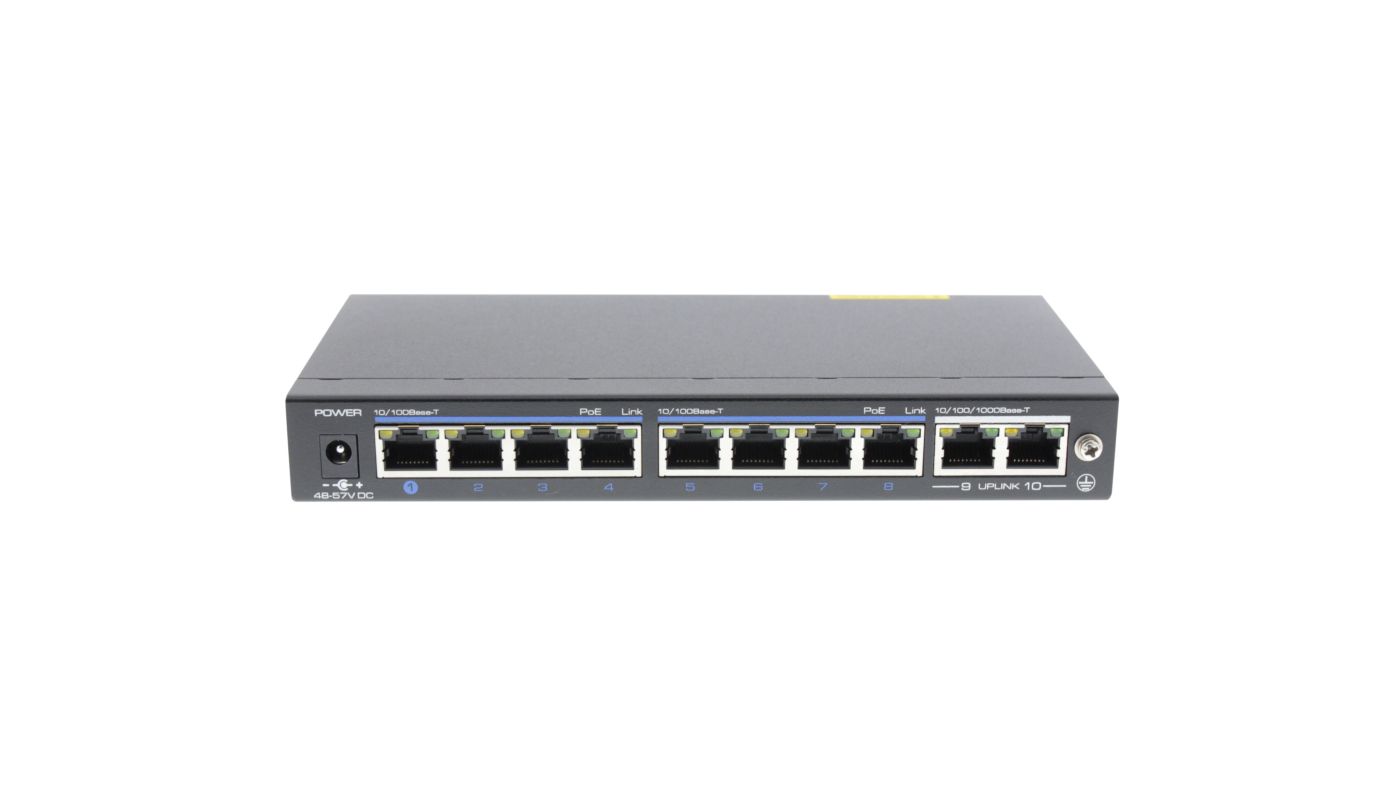

Switch, Unmanaged, 120W 8x PoE, 2 x RJ45 Uplink 10/100/1000 Mbps, Desktop
discontinued
Specifications
- Manufacturer order number
- 220593
- Brand
- eneo
- Series
- eneo Switch
Functions
- Security
- CCTV mode
Network
- Eneo _netzwerkstandards
- IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX
- Internal Switching Capacity (MP per second)
- 4.2 Mpps
- Internal Switching Capacity (Gbit)
- 5.6 Gbps
Interfaces / Inputs/ Outputs
- Ethernet interface
- 1000Base-T, 100Base-TX, 10Base-T
- Ports
- 2x 10/100/1000Base-T, 8x 10/100Base-TX
General
- Design
- Desktop
- Dimensions (WxHxD) (extended)
- 27x200x101,8mm
- Weight
- 500 kg
- Number of PoE ports
- 8
- Type
- Unmanaged
- Mounting type
- Desktop
- PoE Budget (Total)
- 120 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at
- Power supply
- 48-57 VDC
- Temperature Range (Operating)
- -10°C ~ +55°C
Parts supplied
- Scope of delivery
- manual,PSU
Notes
- Remark
- CCTV mode: transmission of 10Mbps @ 250m,CCTV mode,PoE Power output: 29.2W @ 1m; 25.8W @ 100m; 24.2W @ 150m; 19.9W @ 250m
Main Features
- Ethernet PoE Switch, desktop application
- Gigabit Uplink Ports: 2 x RJ45
- 8 x 10/100 PoE Ports IEEE 802.3af/at
- Up to 30W per Port, Total ≤120W
- Surge protection IEC61000-4-5 (6KV)
- CCTV mode allows transmission up to 250m @ 10Mbps
- Plug and Play no further settings necessary
