phased-out

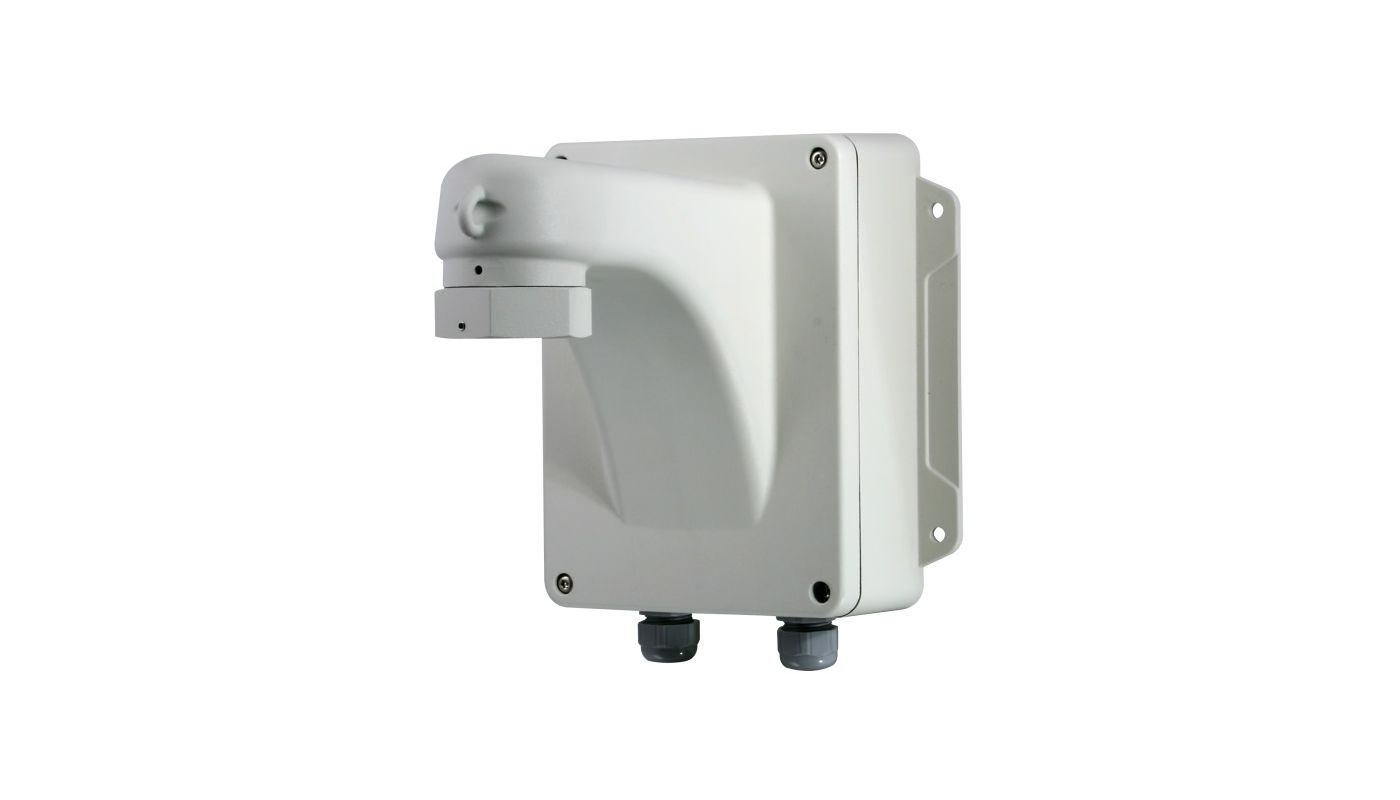

EDC-AKS1

Power&Connection Box with Mounting Bracket for In/Outdoor, 230V-24VAC/3.0A
SKU
74125
Main Features
  • Power & connection box
  • Input voltage: 230VAC
  • Output: 24VAC/3.0A
  • Signal, data and alarm loop-tru terminals inside
  • Weatherproof die-cast aluminium wall mount box
  • Box includes turnable mounting arm
  • Protection rating: IP66
More Information
Brand eneo
Hosuing material aluminium
Alarm inputs 2 4
Alarm outputs 2 (NO/NC)
Output voltage 24 ~ 28VAC
Power consumption 80W
Operating temperature -40°C ~ +50°C
Dimensions (HxWxD) see drawing
Weight 3.8kg
Colour Pantone Cool Gray 1C
Manufacturer order number 74125


to top
to top
  • Manufacturer data sheet PDF 74125_en_sup.pdf Original product information from the manufacturer 155 kB
  • Data sheet PDF 74125_edc-aks1.pdf Data sheet with specifications generated live from the product database <350KB
  • Specifications text DOC 74125_edc-aks1.doc Technical data as Word document, generated live from the product database <50KB
to top

Description
