phased-out

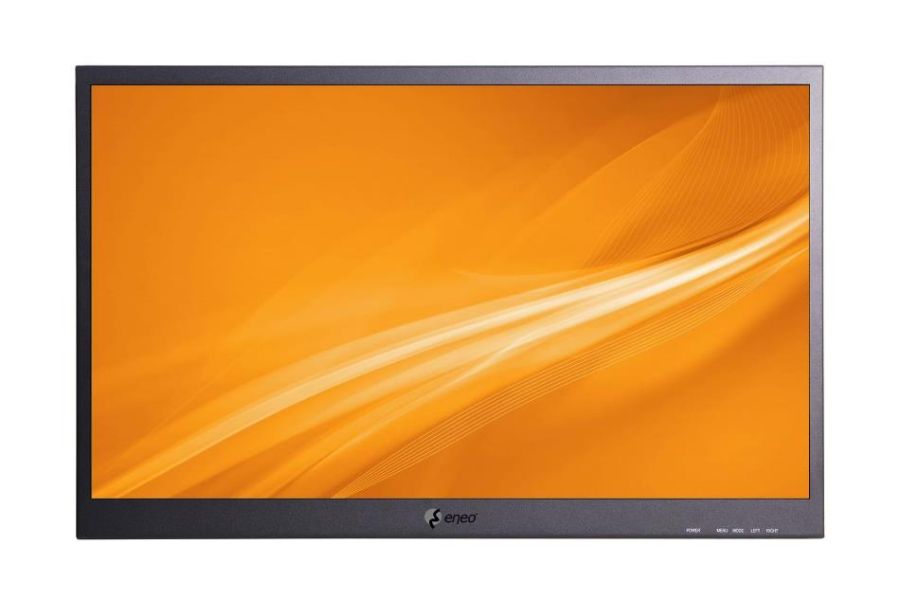

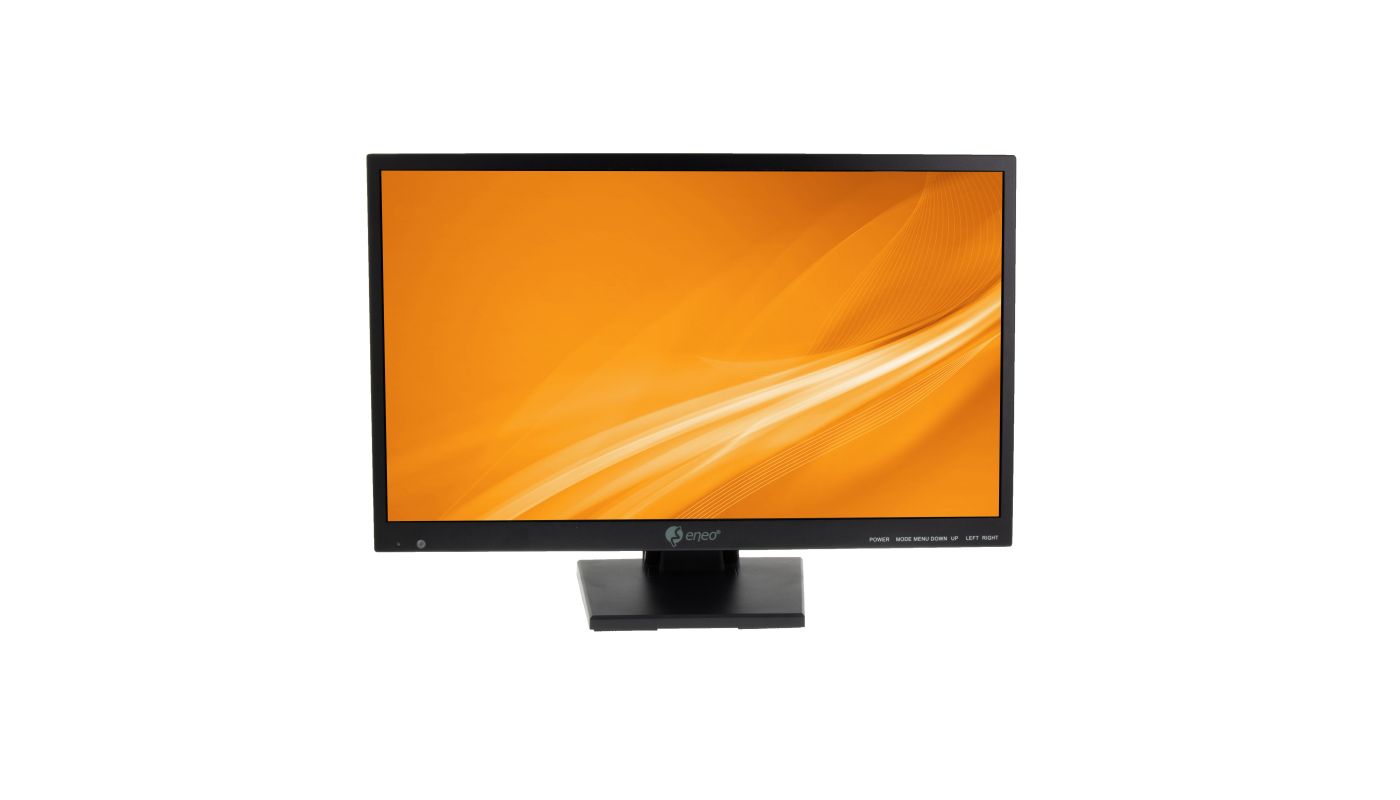

VM-FHD22M

22" (56cm) LCD Monitor FHD, 1920x1080, LED, HDMI, VGA, Composite
SKU
217916
Main Features
  • Professional 22"(56 cm) LCD monitor
  • Maximum resolution Full HD 1920x1080 pixels
  • LED Back Light
  • Metal cabinet including stand
  • Perfect presentation through digital 3D filtering and noise reduction
  • Built to run 24x7x365 continuously
  • Different video inputs HDMI, VGA, Composite
  • Built-in speakers
More Information
Brand eneo
Refresh rate 60 Hz
Applications 24/7
Aspect ratio 16:9
Resolution Pixels 1920x1080
Contrast ratio typical 1000:1
Reponse time typical 5 ms
Brightness typical 250 cd/m²
Backlighting LED
Viewing angle vertical 178°
Viewing angle horzontal 178°
Screen size (inch) 22"
Screen size (cm) 55.9 cm
Video inputs (type) 2x composite (CVBS), HDMI, VGA
Video outputs Composite (CVBS)
Audio inputs 1
Audio output 1x 3,5mm jack
Serial interfaces no
Series eneo Monitor
Dimensions (HxWxD) 306x498,4x67mm
Weight 5.2kg
Hosuing material Metal
Housing color black
Loudspeaker 2
Power consumption 25W
Operating temperature -30°C ~ +85°C, @ Humidity 10%-90% (non-condensing)
Manufacturer order number 217916
