VHU-165/24V
SKU 79549This article is no longer available
Weatherproof Housing (165mm), with Heater and Thermostat, 24VAC
discontinued

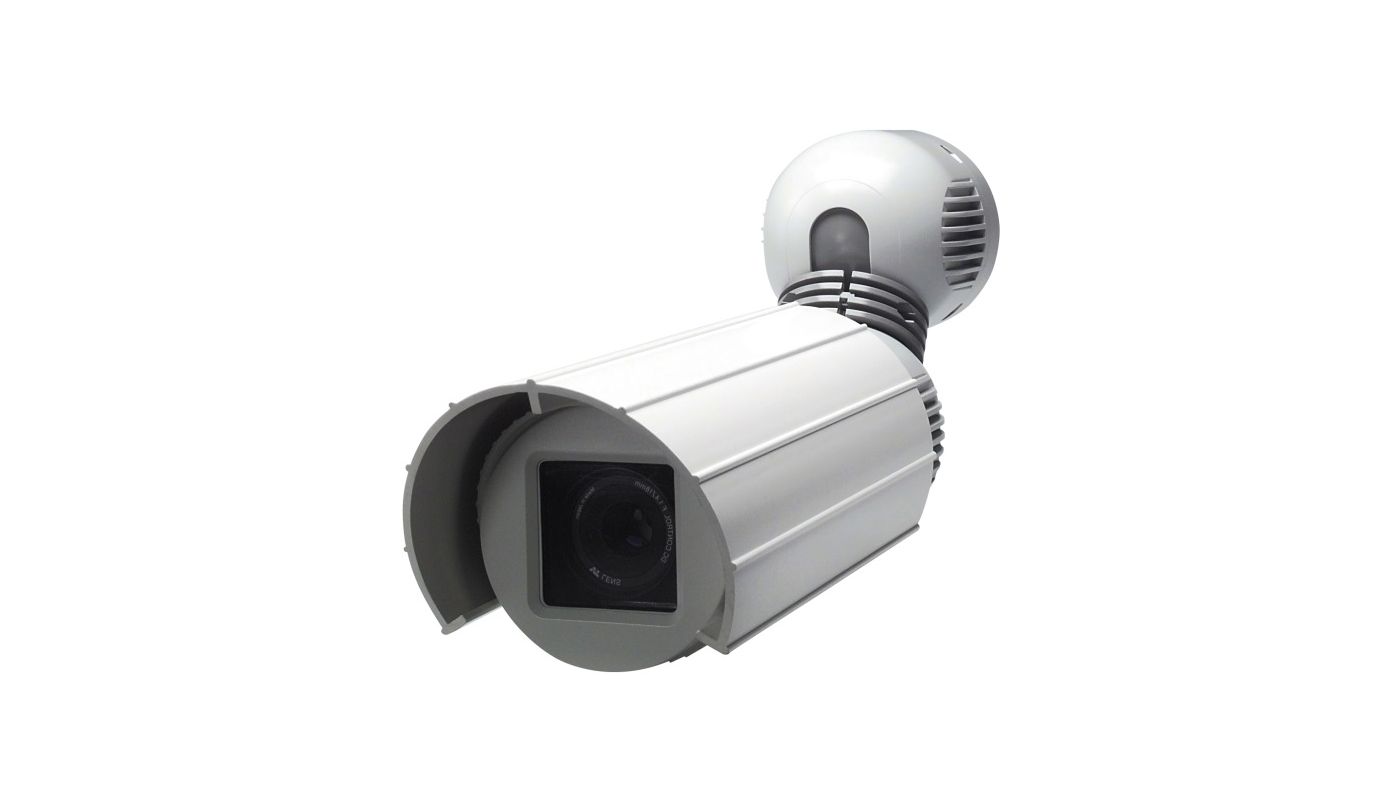

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 79549 |
|---|---|
| Series | eneo Candid |
| Blower | no |
|---|---|
| Brand | eneo |
| Color | (Sunshield and body) RAL7035 (Front and back) RAL7037 (Inner ball, fixing ring) |
| Color (housing) | RAL7035, RAL7037, RAL9016 |
| Dimensions (HxWxD) | see drawing |
| Hosuing material | Aluminium |
| Housing | Outdoor |
| Max. installation length | 165 mm |
| Protection rating | IP66/67 |
| Supply voltage | 24VAC |
| Weight | 1.2kg |
| Window heater | ja |
| Wiper | nein |
Main Features
- Camera weatherproof housing for small cameras
- Integrated ball point head for smooth adjustment
- For wall/ceiling and upright mounting
- For cameras with 12VDC, 24VAC power input
- Window heater: 24V
- Insulated camera mounting
- Cable entry: M25X1.5mm
- Fully hidden cable routing
- Protection rating: IP66/67
Downloads
-
Data sheet with specifications generated live from the product database
-
Detailed manual for this product
-
Betriebsanleitung zum Produkt
-
Mode d'emploi succincte pour ce produit
