SOL-IQbox-plus

SKU 215020

This article is no longer available Successor: SOL-IQbox-plus-B

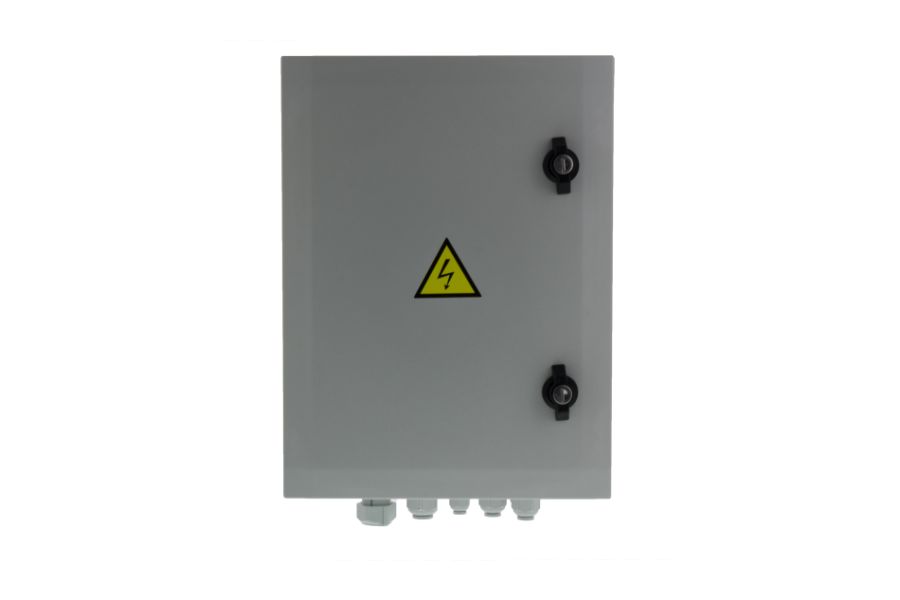

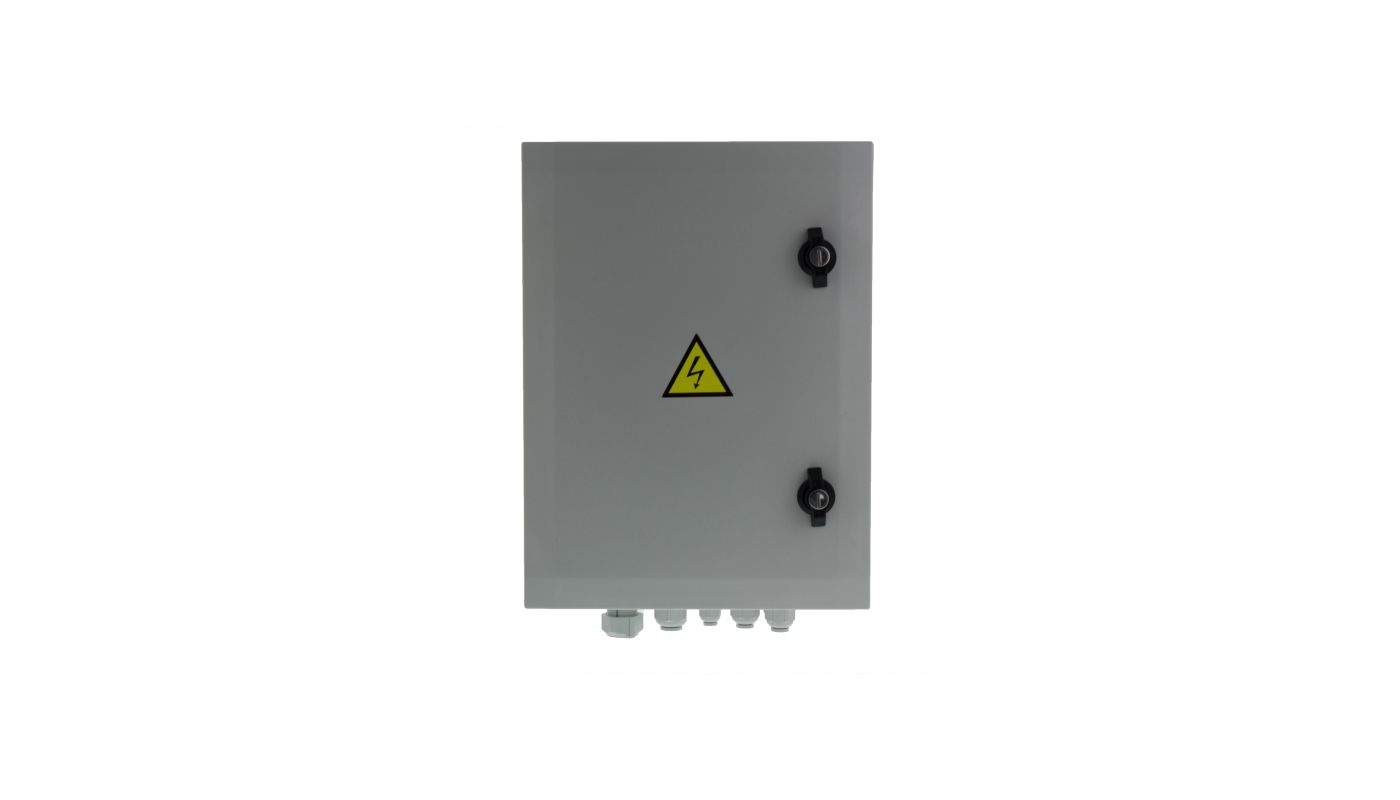

Camera junction box for video surveillance, lightning protection, 400x300x150mm
Data sheet

Specifications

Manufacturer order number 215020
Series Solvido IQbox
Brand Solvido
Certifications IK10
Color (housing) RAL7035
Dimension (lxwxd) 400x300x150mm
Heater optional
Hosuing material Polycarbonate
Housing Outdoor
Operating temperature -25°C ~ +55°C
Protection rating IP66
Supply voltage 230VAC

Main Features

  • Optimised for outdoor use
  • Electrically prewired for flexible, modular expansion.
  • UV stable polycarbonate, corrosion-resistant
  • Protective class IP66
  • Impact resistance IK 10, vandalism protected
  • Swivelling door (with door contact switch)
  • Wall or mast mounted
  • Fast, easy installation
  • Simple mechanical finishing
  • Including service socket, personal protection
  • Lightning protection combination arrestor type
  • Graduated prices on request
