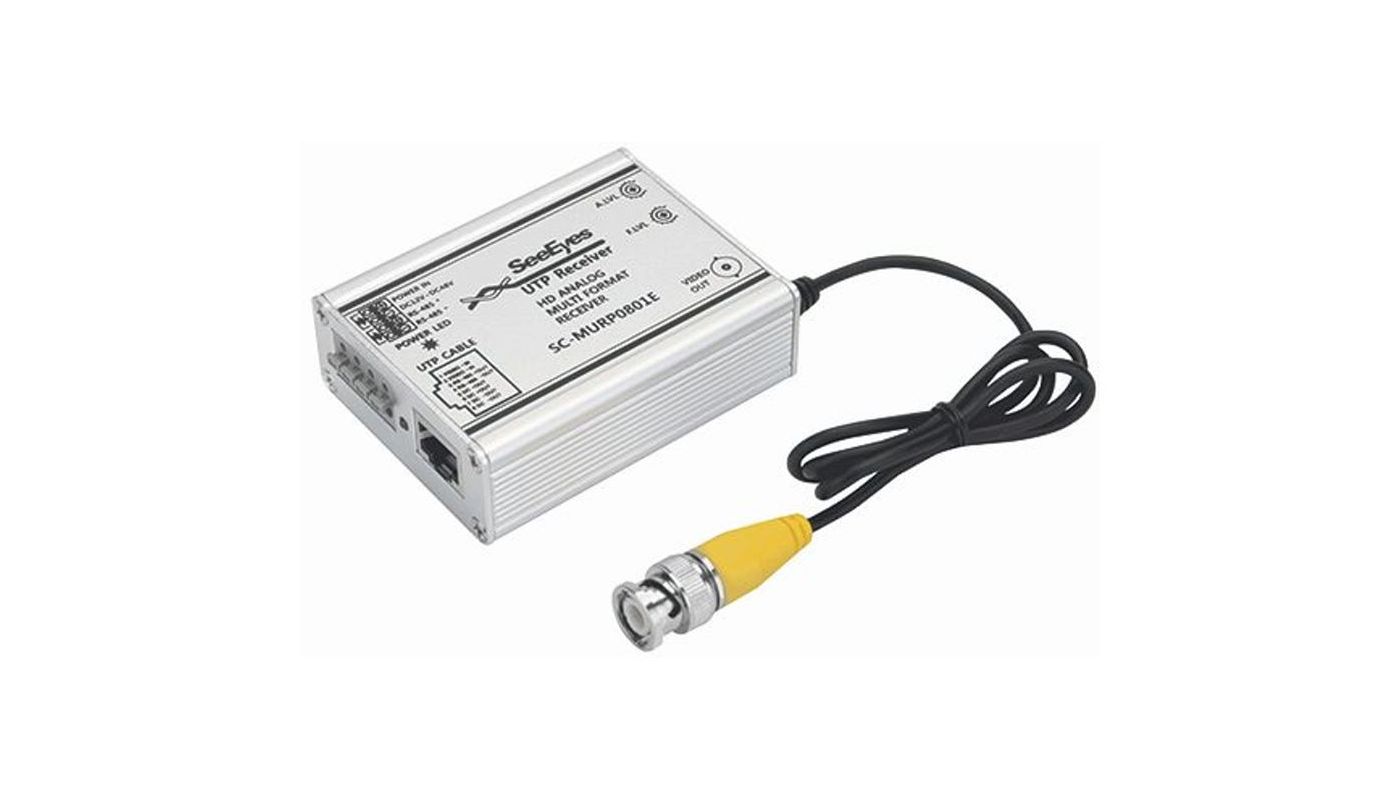

1-channel active UTP-receiver supports AHD, TVI, CVI and CVBS, max 700m over CAT.5e
SKU
236258
Main Features
- Active 1CH receiver with noise reduction function
- Supports analog HD signals in multiple formats
- Video signal transmission Max. 700m (AHD 2M), Max. 300m (TVI 2M),
- Max. 300m (CVI 2M), Max. 700m (CVBS) via CAT.5e UTP cable
- DC 12V output for transmitter (SC-MUTP0801E) on camera side (max. 12W)
- Supports standard CVBS signal (NTSC, PAL)
- Built-in overvoltage protection circuit
- Power supply 12VDC, 48VDC
- -10°C ~ +50C Temperature range
For Prices and Availability please login.
Brand | SeeEyes |
---|---|
Manufacturer order number | SC-MURP0801E |
- Data sheet PDF 236258_sc-murp0801e.pdf Data sheet with specifications generated live from the product database <350KB
- Specifications text DOC 236258_sc-murp0801e.doc Technical data as Word document, generated live from the product database <50KB
