SC-IPU601T
SKU 237249
1-channel-IP transmitter PoE over UTP, High Power (70W) , High Reach up to 800m
For Prices and Availability please login.

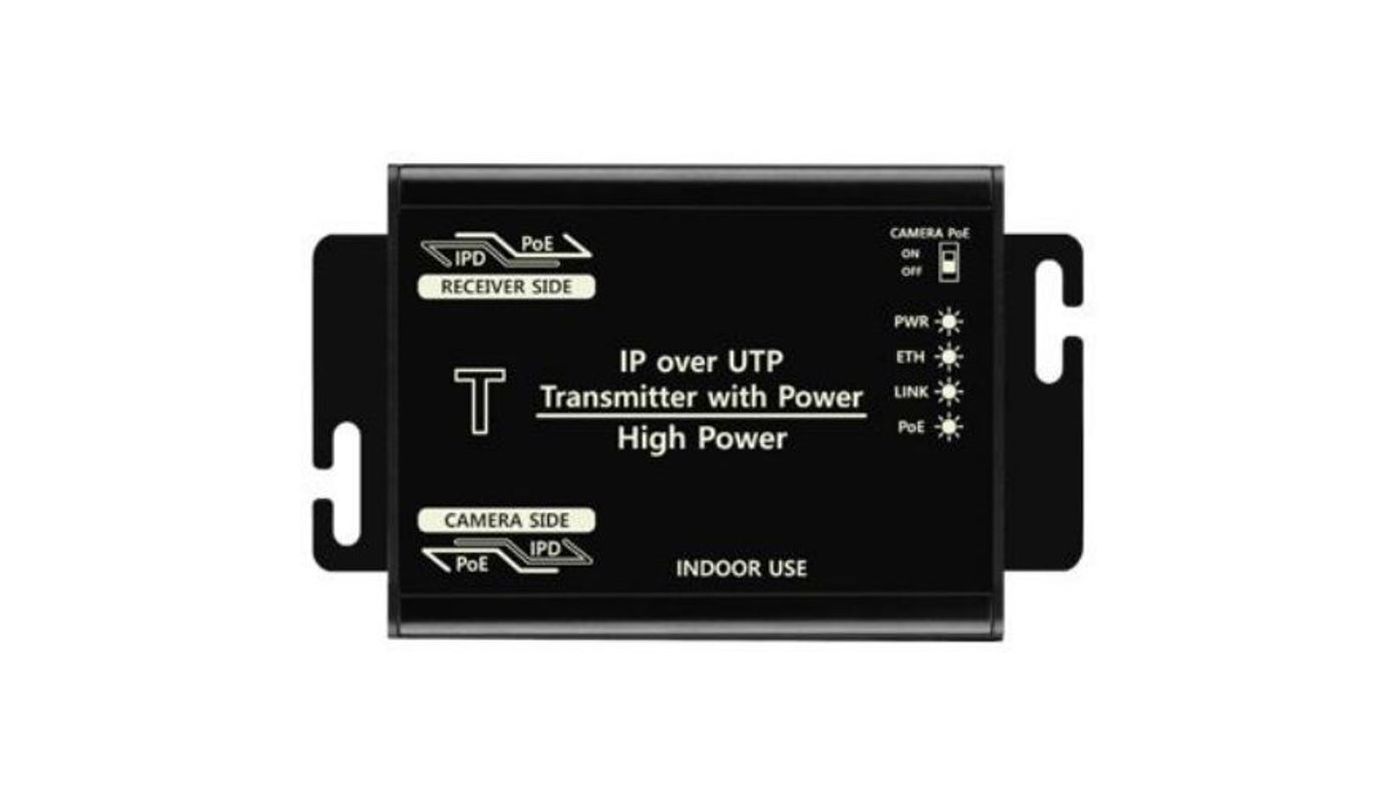

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | SC-IPU601T |
|---|---|
| Series | SeeEyes SC-IP |
| Brand | SeeEyes |
|---|---|
| Model | module |
| Mounting | wall mount |
| Operating temperature | -10°C ~ +50°C |
| PoE budget | 70 W |
| Ports | 1 |
| Range | 800 m |
| Supply voltage | 56VDC, PoE |
| Transmission medium | UTP |
| Type | Media Converter |
Main Features
- 1-channel IP + PoE via UTP transmitter
- PoE++ (IEEE 802.3af/at/bt, max 70W
- Transmission range: 100Mbps up to 500m
- Transmission range: 10Mbps to 800m
- Supports Auto MDI/MDIX function
- Power transmission with automatic power diagnostics
- Built-in surge protection
