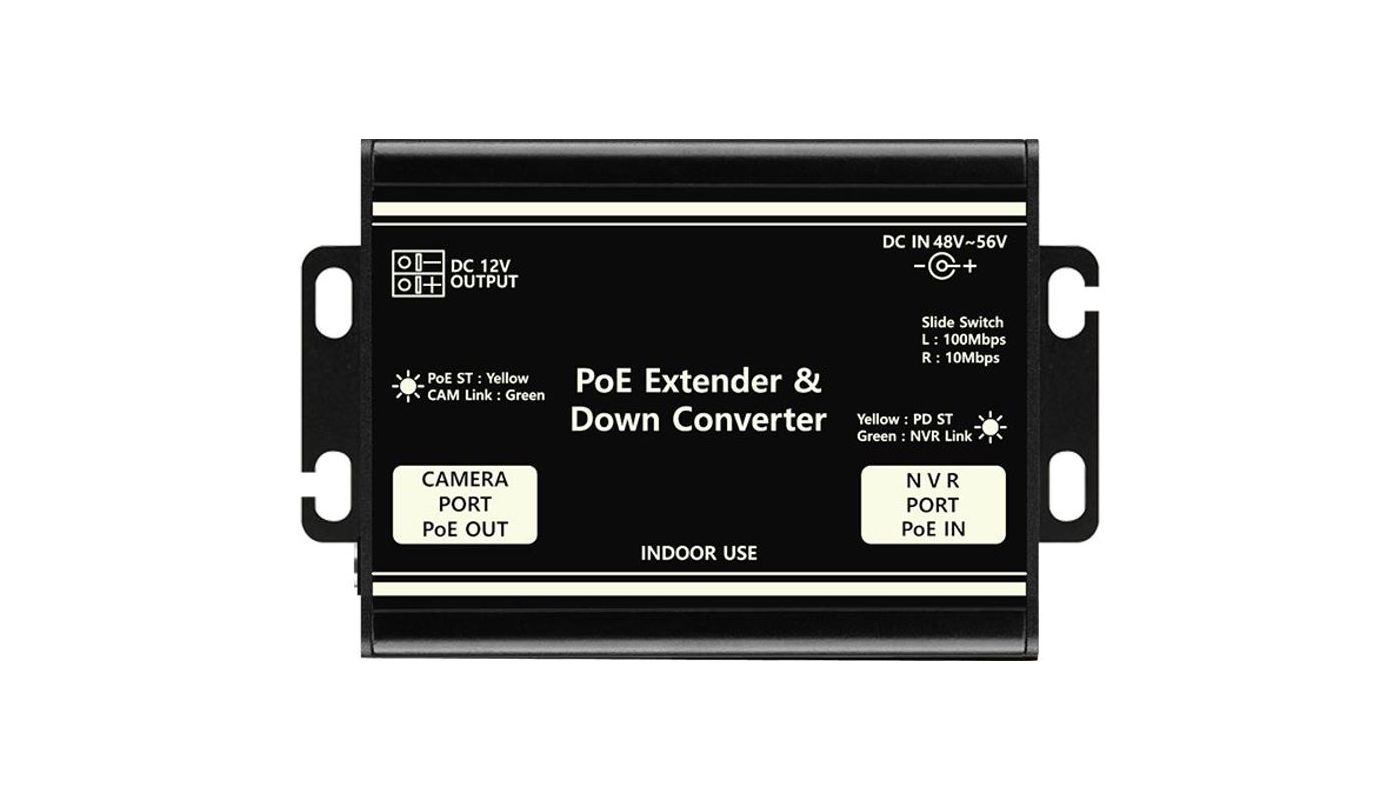

SC-IPH3002DC

SKU 237397
PoE and Ethernet Extender, Splitter functionality (DC 12V), 250m reach
Data sheet

Specifications

Manufacturer order number SC-IPH3002DC + 48V 1A ADAPTER
Series SeeEyes SC-IP
Brand SeeEyes
Model module
Mounting wall mount
Operating temperature -10°C ~ +50°C
PoE budget 30 W
PoE ports (number) 1
Ports 1
Range 250 m
Supply voltage 48VDC, PoE
Transmission medium UTP
Type Media Converter

Main Features

  • 1-channel Ethernet over coax transmission Receiver
  • Ethernet extender function
  • PoE injector function
  • PoE splitter function (DC 12V max. 1A output)
  • Transmission bandwidth (Max.): 10/100Mbps (full duplex)
  • Transmission range: 100Mbps to 100m (CAT.5e)
  • Transmission range: 10Mbps to 250km (CAT.5e)
  • Supports Auto-MDI/MDIX function
  • Built-in surge protection
