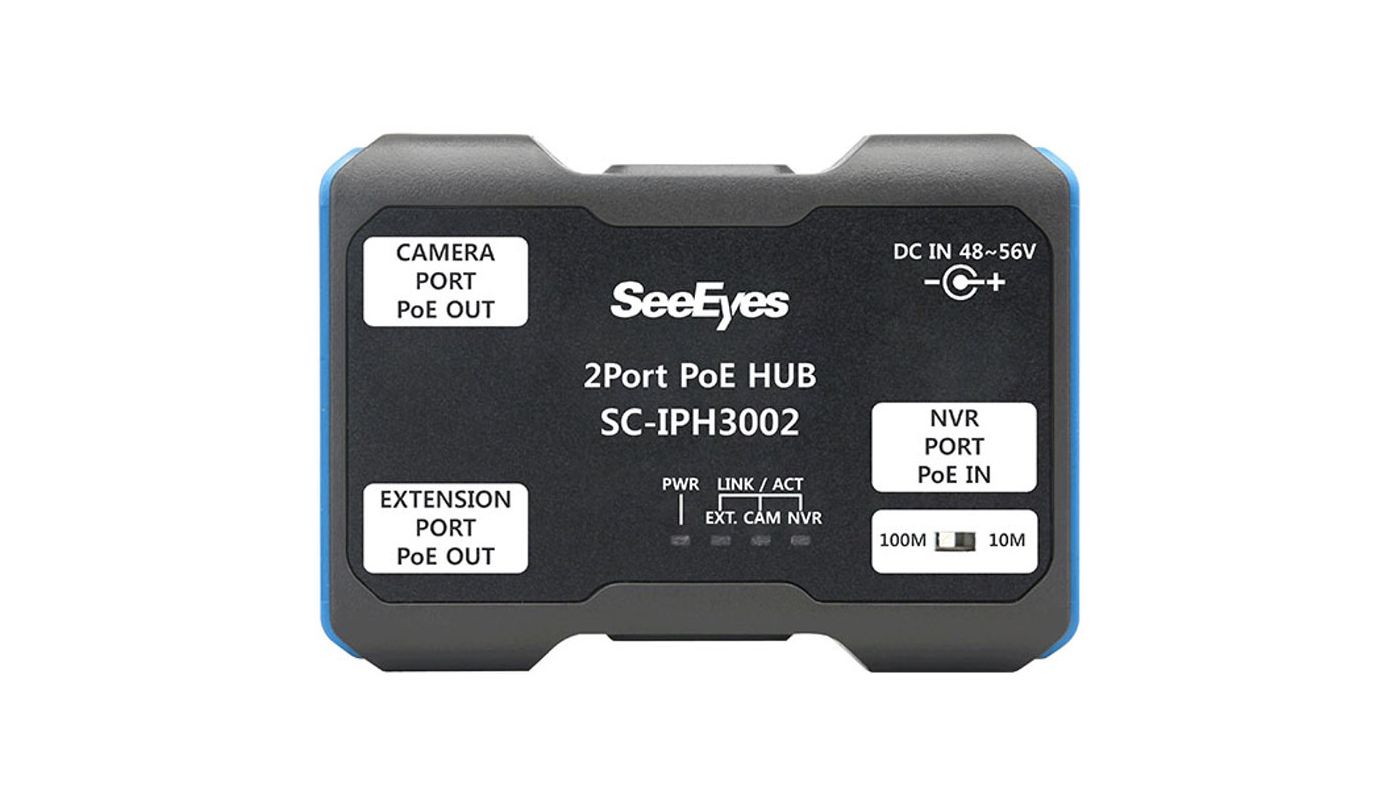

SC-IPH3002
SKU 226674
Ethernet, PoE Extender, 1x IN, 2x OUT, Daisy-chain for cameras, 250m max.
For Prices and Availability please login.
Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | SC-IPH3002 |
|---|
| Brand | SeeEyes |
|---|---|
| Model | mini module |
| Operating temperature | -10°C ~ +50°C |
| PoE budget | 30 W |
| PoE ports (number) | 2 |
| Ports | 2 |
| Supply voltage | 48VDC, PoE |
| Type | PoE extender, PoE splitter |
Main Features
- PoE- and Ethernet extender with daisy chaining
- Cost-efficient extension of existing networks
- Up to 10 PoE IP cameras via UTP
- Range at 100Mbps: 100m
- Range at 10Mbps: 250m
- 48V PSU included
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Original product information from the manufacturer
Services
Manufacturer and service level agreementsInformation to garantee, service, partner programs, repairs, pre and aftersales.
Safety Instructions
