SC-HDT01E
SKU 232597

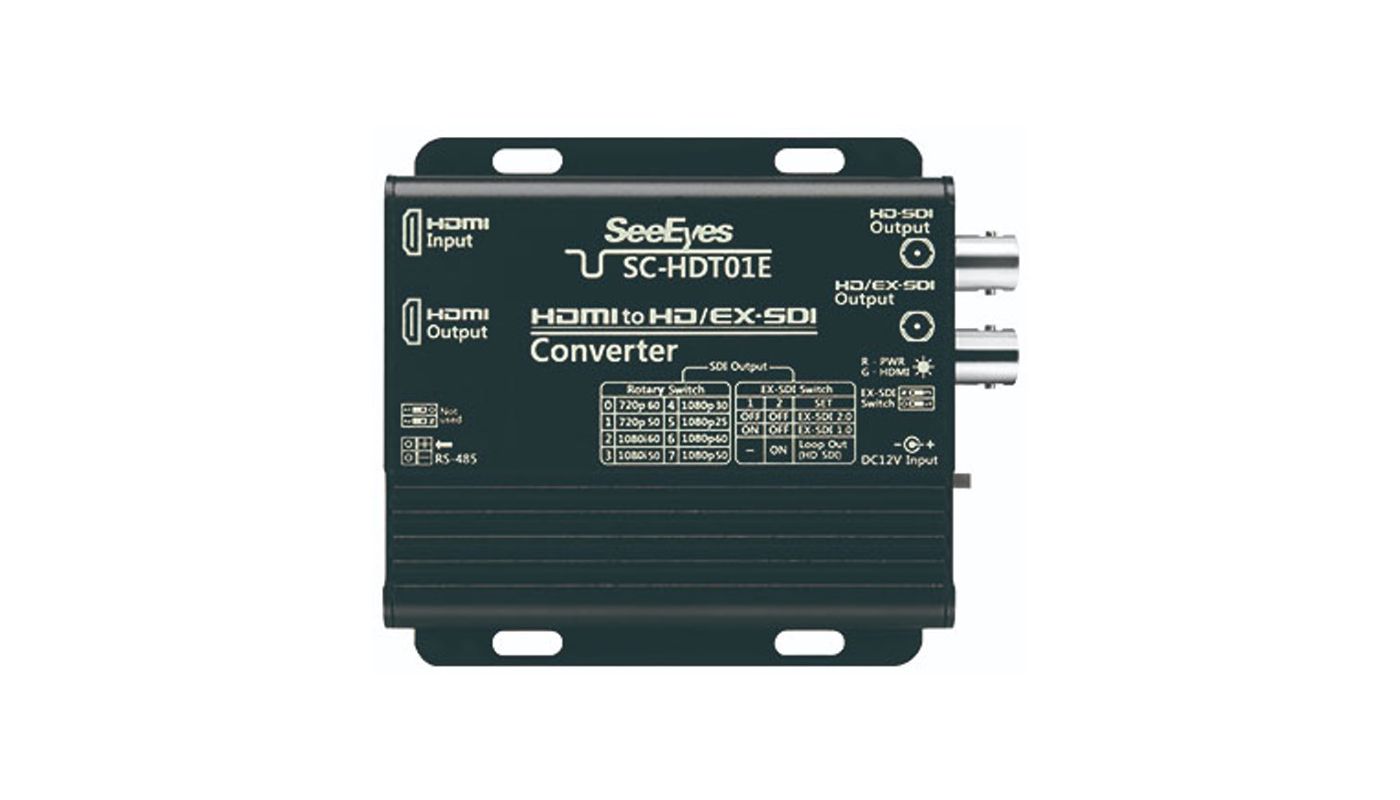

Converter, HDMI to HD/EX-SDI, HDMI 1.3, Ex-SDI 1.0/2.0, Full HD 1,5/3G, 12VDC
For Prices and Availability please login.
Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | SC-HDT01E |
|---|
| Brand | SeeEyes |
|---|---|
| Design | Mini module |
| Fan | No |
| Management | No |
| Multicast | No |
| Ports | 1 |
| Power supply | 12VDC |
| Rack installation | No |
| Temperature Range (Operating) | -10°C ~ +50°C |
| Type | Media converter |
| VLAN | No |
Main Features
- Converter HDMI to HD-SDI and Ex-SDI
- Supports High Definition Digital Video
- HDMI input up to 1080p60Hz
- HD-SDI and Ex-SDI 1.0/2.0 output
- 1x IN / 3x OUT distribution
- Supports 50 and 60 Hz systems
- Cable length up to 200m (HD-SDI 1,5G)
- Cable length up to 600m (Ex-SDI 2.0)
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Manufacturer data sheet (german)
Services
Manufacturer and service level agreementsInformation to garantee, service, partner programs, repairs, pre and aftersales.
Safety Instructions
Manufactured by
SeeEyes Co, Ltd
506 Sunil Technopia
KR 13215 Seonagnam-si
Gyeonggi, Korea
+82-2-31-730-5800
506 Sunil Technopia
KR 13215 Seonagnam-si
Gyeonggi, Korea
+82-2-31-730-5800
