The combined capabilities of 4K cameras and thermal imaging cameras enable effective and economical perimeter and outdoor area protection. In addition to new IP cameras, eneo also offers multi-signal cameras with 4K resolution.
This means that specialist installers can find at eneo everything they need to expand or modernise their existing external security systems.

All the benefits at a glance:

  • improved situation recognition
  • improved taking of evidence
  • proactive protection using video analytics
  • lowering the overall operation costs
  • economical modernisation of existing systems with 4K multi-signal cameras

4K cameras: XXL overview and important details

With a resolution of 8 megapixels, 4K video cameras can monitor larger areas than cameras with Full HD or lower resolution. When zooming in on individual image sections, even the smallest items are displayed in razor-sharp detail. For this reason, a few 4K cameras are sufficient for comprehensive location detection in large areas such as shopping centres, extensive event locations or outdoor areas and fences.

At the same time, the comprehensively detailed video images provide abundant source material for forensic image analysis and taking evidence.
But using 4K cameras is also economically worthwhile. After all, just a few of these high-resolution cameras give security officers a comprehensive overview, so that very lean video security solutions are possible.
Fewer cameras mean lower acquisition costs, shorter installation times, reduced maintenance requirements and lower overall operating costs. And that pays off, especially with extensive perimeter protection systems and systems for securing outdoor areas.

  1. IEB-78M3611MAA IEB-78M3611MAA
    IEB-78M3611MAA
    1/2.5" Network Camera, 3840x2160, Day&Night, WDR, 3,6-11mm, Infrared, IP66
  1. IED-68M3611MAA IED-68M3611MAA
    IED-68M3611MAA

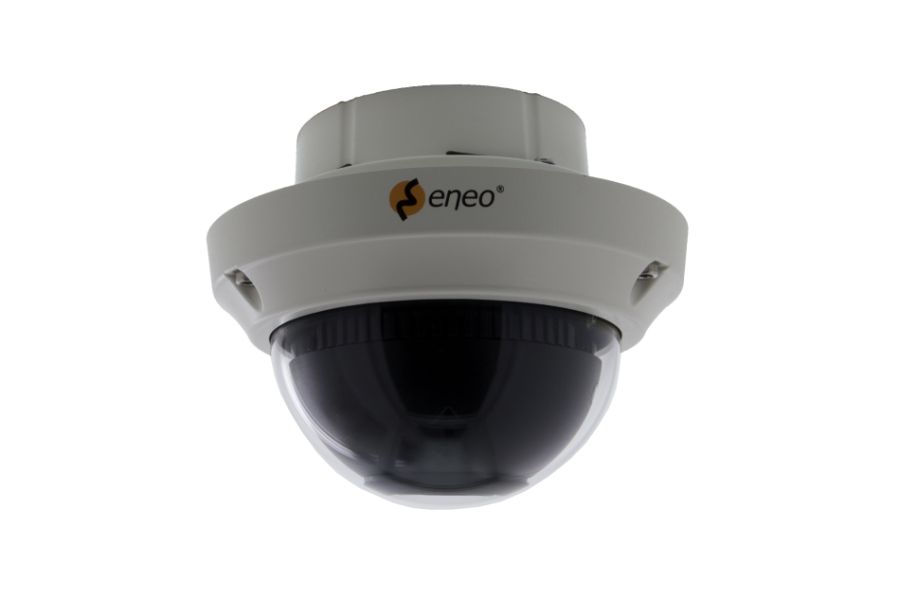

    1/2.5" Network Dome, Fixed, 3840x2160, Day&Night, WDR, 3,6-11mm, Infrared, IP66

Defence against acute threats with IP cameras

IP cameras with intelligent video analysis functions document incidents at security fences and can also ward off acute threats and dangers. These cameras are particularly powerful as they also deliver video images in outstanding 4K quality.

eneo offers a selection of network-based 4K cameras for outdoor use which have motion analysis, motion detection, intrusion detection, loitering detection as well as the recognition of people and directions taken. This means that you have everything that you need for proactive perimeter and outdoor area protection.

These cameras include the robust bullet camera, IEB-78M3611MAA, and the fixed dome, IED-68M3611MAA. Each of these 4K cameras has a motorised varifocal lens (3.6 – 11 mm) with P-Iris control and is equipped with a Sony STARVIS CMOS image sensor.

4K multi-signal cameras: modernise existing systems easily and economically

Die Modernisierung bestehender Perimeterschutzanlagen ist meist aufwendig und kostspielig. Knackpunkt ist hier die Verkabelung, bei der es sich oft um schwer zugängliche Koaxstrecken handelt. Ein Umstieg auf IP ginge hier mit immensem Arbeitsaufwand und entsprechenden Kosten einher. Kosten, die sich vermeiden lassen, wenn das Bestandssystem mit 4K-Multisignalkameras der eneo COAXIZE Linie modernisiert wird. Die Kameras sind mit der analogen Kabelinfrastruktur kompatibel und ermöglichen Errichtern die Modernisierung bestehender Perimeterschutzanlagen im zeitsparenden Plug-and-Play-Verfahren. Und das zahlt sich für Betreiber ebenso aus wie die Senkung der Gesamtbetriebskosten, die infolge der Verschlankung des Bestandssystems durch 4K-Kameras möglich wird.

Flexible and easy to install

eneo Multisignalkameras unterstützen mehrere Videosignale, sodass Errichter unter HD-TVI, AHD, CVI sowie EX-SDI flexibel das für die konkrete Anwendung optimale Signalformat auswählen können. So auch bei der neuen 4K-Bullet-Kamera MCB-68M2713M0A und dem 4K-Dome MPD-78M2713M0A. Beide Kameras kommen mit einem motorisierten Varifokalobjektiv (Brennweite 2,7–13,5 mm) und einem Sony Starvis CMOS-Sensor. Integrierte Infrarot-LEDs gewährleisten einen kontinuierlichen Einsatz rund um die Uhr. Für die schnelle und saubere Montage wird das Modell MCB-68M2713M0A mit einer kameraseitig vorverkabelten Anschlussbox ausgeliefert. Für den Dome MPD-78M2713M0A ist vom Wandarm bis zum Montagering eine breite Palette an funktionalem Installationszubehör erhältlich. Dank dieser integrierten bzw. zusätzlichen Ausstattung ist die für den Perimeterschutz charakteristische Mastmontage der Kameras schnell und errichterfreundlich erledigt.

  1. MCB-68M2713M0A MCB-68M2713M0A
    MCB-68M2713M0A
    1/2,8" HD Camera, Day&Night 3840x2160, Infrared, WDR, 2,7-13,5mm, 12/24V, IP67
  1. MPD-78M2713M0A MPD-78M2713M0A
    MPD-78M2713M0A
    1/2,8" HD Dome Fix, Day&Night 3840x2160, Infrared, WDR, 2,7-13,5mm, 12/24V, IP67

Thermal imaging cameras

Thermal cameras are compatible with both analogue and network-based systems. Due to their lengthy detection ranges, a few well-positioned thermal imaging cameras are sufficient for monitoring large areas and extensive fencing. The cabling effort and maintenance costs are correspondingly manageable.
eneo thermal imaging cameras work with uncooled thermal imaging modules which enable very good object recognition over short and medium ranges and run maintenance-free for years. Their scope of functions also includes video analysis functions such as motion detection and the monitoring of specially defined zones, virtual trip wires and protection against manipulation, which are available when used in IP systems.

  1. ITB-7SF0075M0A ITB-7SF0075M0A
    ITB-7SF0075M0A
    Thermal Network Camera, 7,5mm, 45°, 336x256, 25Hz, Audio, Composite, PoE, IP67
  1. ITB-7SF0013M0A ITB-7SF0013M0A
    ITB-7SF0013M0A
    Thermal Network Camera, 13mm, 25°, 336x256, 25Hz, Audio, Composite, PoE, IP67
  1. ITB-7SF0019M0A ITB-7SF0019M0A
    ITB-7SF0019M0A
    Thermal Network Camera, 19mm, 17°, 336x256, 25Hz, Audio, Composite, PoE, IP67
  1. ITB-7SF0035M0A ITB-7SF0035M0A
    ITB-7SF0035M0A
    Thermal Network Camera, 35mm, 9,3°, 336x256, 25Hz, Audio, Composite, PoE, IP67

Optimal protection through combined capabilities

A combination of thermal and 4K cameras is recommended for the effective and economical protection of outdoor areas and fencing. Thermal imaging cameras provide the necessary position detection from a distance, while 4K cameras enable the precise visual identification of intruders and detailed clarification of incidents. The fact that a single 4K camera can often do the job of several cameras with lower resolution makes these powerful cameras of interest, not least for civil authorities or municipalities.
