MSM-42F0037MPA
SKU 217646
1/2.8" HD Board Camera, Colour, 1920x1080, 3.7mm, Pinhole, WDR, Housing, 12VDC
For Prices and Availability please login.
special_price

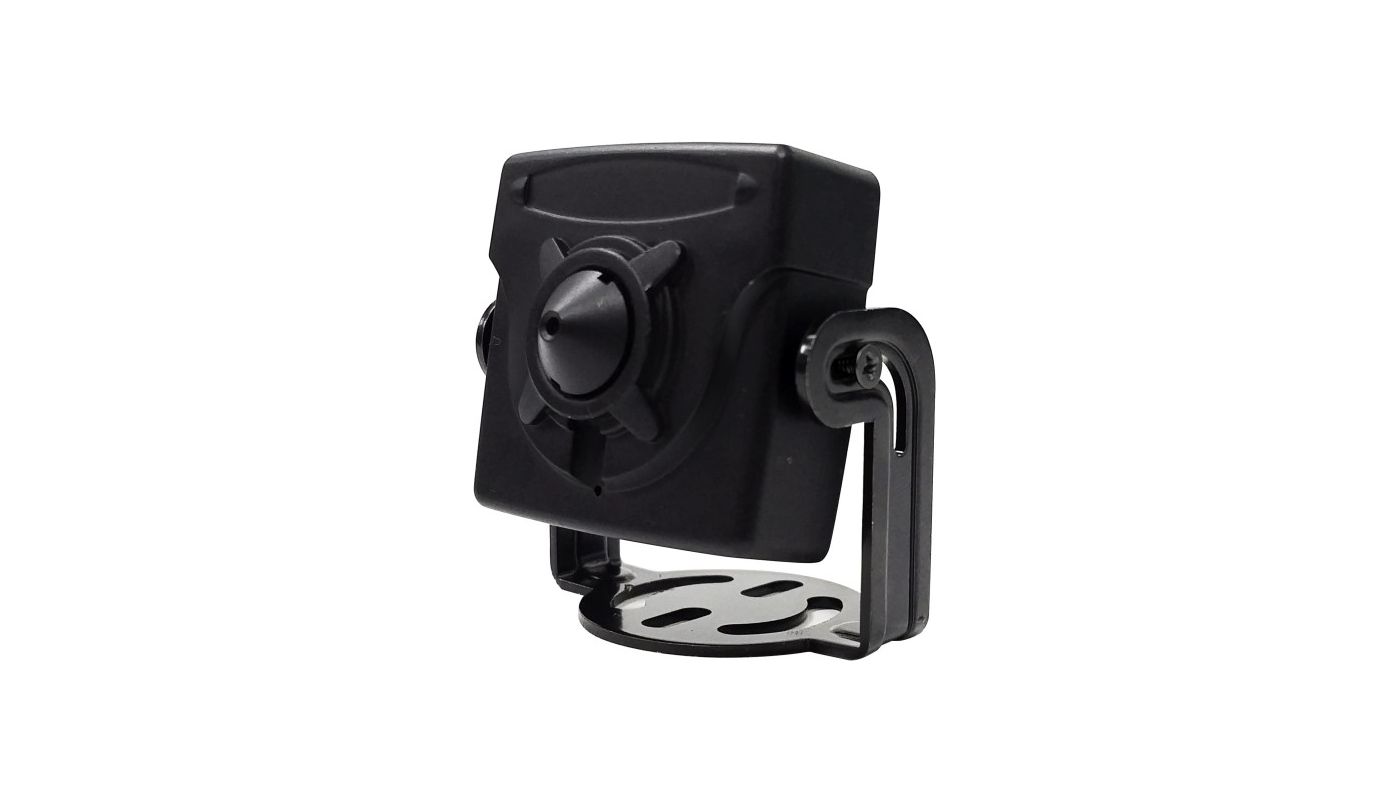

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 217646 |
|---|---|
| Series | eneo COAXIZE |
| Alarm inputs | 0 |
|---|---|
| Audio support | No |
| Backlight compensation | No |
| Brand | eneo |
| Camera Type | Board Camera |
| Camera shape | Module |
| Chip size | 1/2,8" |
| Control Interfaces | Coaxitron (HD Protocol) |
| Day/night mode | not available |
| Day/night switching | no |
| Digital Noise Reduction (DNR) | Yes |
| Dimensions (WxHxD) (extended) | 37x37,8x21,5mm |
| External connections | voltage input,1x SDI Signal (BNC),1x HD/SD Analog Signal (BNC) |
| Fan | No |
| Flickerless function | Yes |
| Focal length | 3,7 mm |
| Heating | Yes |
| Horizontal angle of view | 82° |
| Housing material | Metal |
| Housing type | Inside |
| Identify (250px/m) | 5 m |
| Integrated wall mount | No |
| Interface Protocols | UTC (HD Signal Format), UTC (HD Signal Format) |
| Lens Type | Prime lens |
| Low Speed Shutter | No |
| Menu languages | Chinese, English, German, Japanese, Korean |
| Motion detector | No |
| Mounting type | Ceiling, Wall |
| Multicast | No |
| Number of alarm outputs | 0 |
| Perceiving (25px/m) | 59 m |
| Photosensitivity | 0,08 Lux bei F1,4,40 IRE |
| Power supply | 12VDC |
| Recording sensor | CMOS |
| Remark | NDAA compliance under Section 889 |
| Scope of delivery | manual,mounting accessories |
| Signal Format | AHD @ 2MP, AHD @ 2MP, Composite (FBAS), CVI @ 2MP, EX-SDI @ 2MP, HD-SDI @ 2MP, HD-TVI @ 2MP, HD-TVI @ 2MP, HD-TVI @ 2MP, HD-TVI @ 2MP |
| Signal-to-noise ratio | 50 dB |
| Sunshade canopy | No |
| System | Color |
| Temperature Range (Operating) | -10°C ~ +50°C |
| Text overlay | available |
| Vandalism-resistant | No |
| Watch (62px/m) | 21 m |
| White balance | Automatic,Preset,Manual |
| Wide Dynamic Range (WDR) | WDR 113dB |
| Zoom Factor (Digital) | 0 |
Main Features
- 1/2,8" 2 Megapixel SONY STARVIS CMOS-Sensor
- Board Camera with rugged metal cabinet
- Resolution max. 1920x1080 (Full HD)
- Separate outputs for digital and multi-signal
- Multisignal: HD-TVI, AHD, CVI and Composite selectable
- Digital signal: EX-SDI, HD-SDI selectable
- Pinhole lens 3.7mm
- Electronic Day/Night function
- ROI (Region of Interest) WDR mode
- Integrated motion detector, defog, privacy zones
