MPC-52A0030M0A
SKU 233052
No longer available
Successor: MPC-52A0030M0A

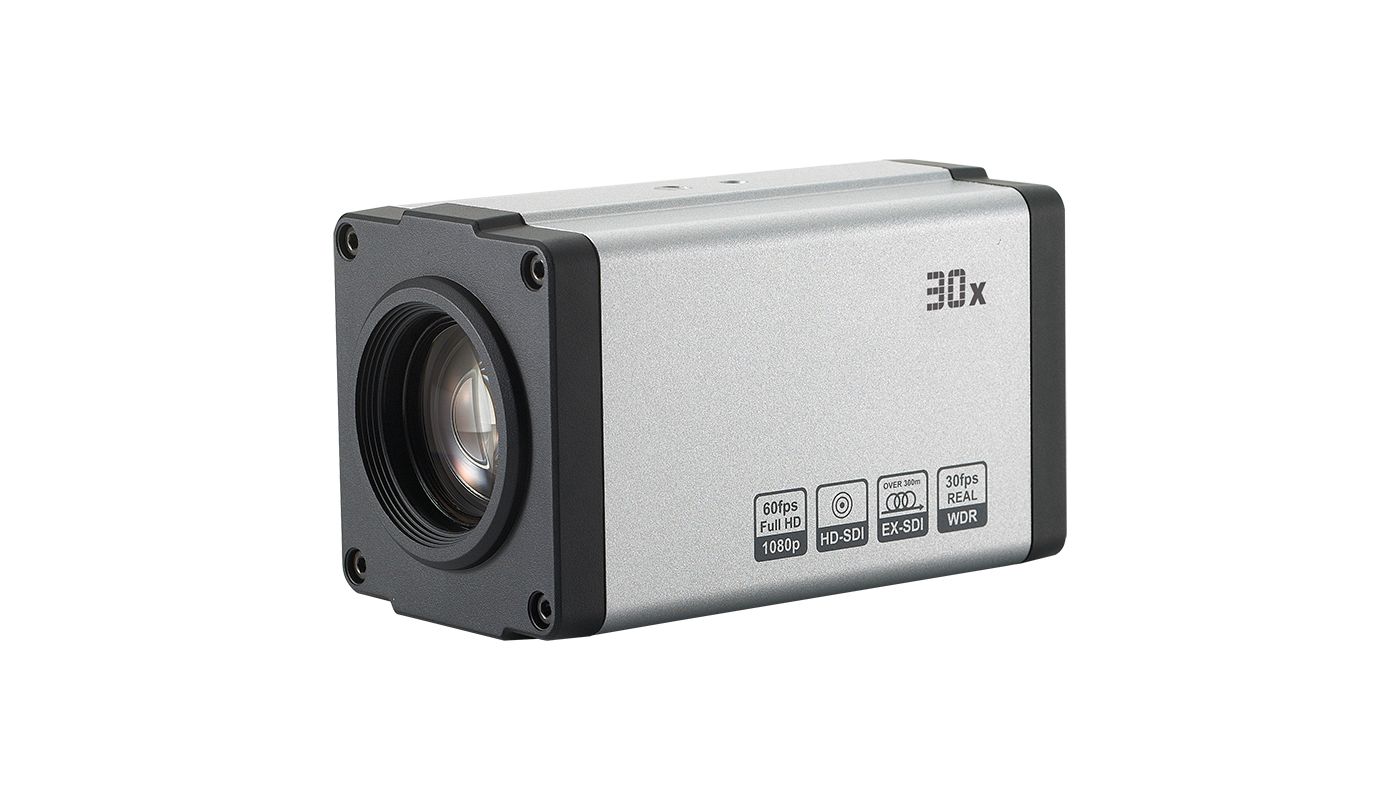

1/3" HD Camera, 1920x1080, 30x AF Zoom 4,3-129mm, T-WDR, HD-SDI, EX-SDI, TVI, Composite
discontinued
Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 233052 |
|---|
| Aperture Range (F) | F1.6~F4.7 |
|---|---|
| Brand | eneo |
| Camera shape | Zoom cameras |
| Chip size | 1/3" |
| Control Interfaces | Coaxitron (HD Protocol), RS-485 |
| Day/night mode | Automatic,Day,Night,extern (Sensor) |
| Day/night switching | Switchable IR Filter (ICR) |
| Digital Noise Reduction (DNR) | Yes |
| Dimensions (WxHxD) (extended) | 74x67x121,5mm |
| External connections | 1x SDI Signal (BNC),1x HD/SD Analog Signal (BNC),12VDC power input,RS-485,external day&night switching,Alarm output |
| Flickerless function | Yes |
| Focal length | 4,3 - 129 mm |
| Heating | Yes |
| Horizontal angle of view | 58,9 - 2,11° |
| Horizontal resolution | 700 TVL |
| Housing material | Aluminium |
| Housing type | Inside |
| Identify (250px/m) | 6.6 m |
| Interface Protocols | Pelco D, Pelco P, UTC (HD Signal Format) |
| Lens Type | Auto Focus Zoom |
| Lighting | no |
| Menu languages | Chinese, English, Japanese |
| Number of alarm outputs | 1 |
| Perceiving (25px/m) | 712 m |
| Photosensitivity | 0,5 Lux bei F1,6,50 IRE |
| Power supply | 12VDC |
| Recording sensor | CMOS |
| Remark | NDAA compliance under Section 889 |
| Scope of delivery | manual |
| Signal Format | Composite (FBAS), EX-SDI @ 2MP, HD-SDI @ 2MP, HD-TVI @ 2MP |
| Signal-to-noise ratio | 50 dB |
| System | True Day&Night |
| Temperature Range (Operating) | -10°C ~ +50°C |
| Text overlay | available |
| Watch (62px/m) | 281 m |
| White balance | AUTO,One push,Manual,Indoor,Outdoor |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Zoom Factor (Digital) | 0 |
| Zoomfactor (optical) | 30 |
Main Features
- 1/3" 2,0 Megapixel Panasonic CMOS-Sensor
- Resolution max. 1920x1080, 1080p@60/50fps
- Optical 30x Auto Focus Zoom, 4,3~129mm
- Multisignal Output HD-SDI, EX-SDI, TVI, Composite
- Real time True WDR
- Digital Noise Reduction(2D+3D)
- Digital Image Stabilization
- Privacy Masking, Defog
- Slow Speed Shutter
- Compact Housing
- Power Supply 12VDC
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Manufacturer data sheet (german)
-
Manufacturer data sheet (english)
-
Manual for this product (english)
-
Product image in a high resolution
-
Declaration of conformity (german and english)
